Product Description
Overview

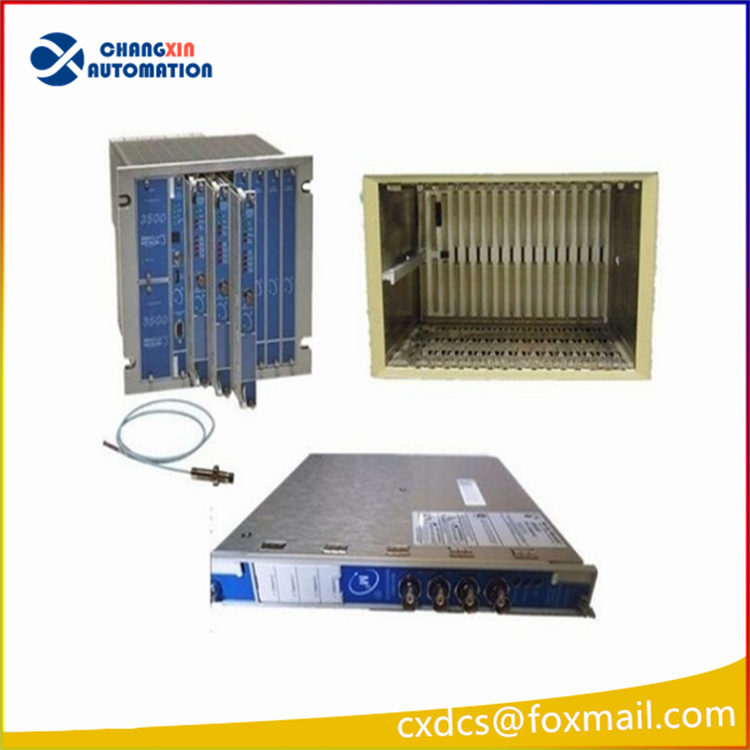

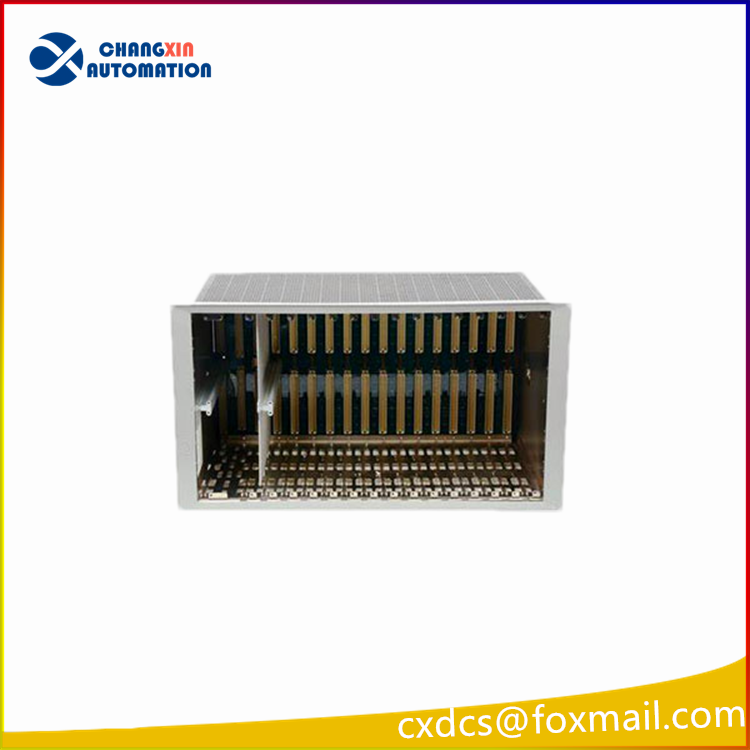

The Bently Nevada 3500/05-01-02-00-00-01 is a full-size system rack used as the structural and electrical foundation of the Bently Nevada 3500 Machinery Protection System. It provides the mechanical enclosure and integrated backplane required to install, power, and interconnect 3500 monitoring, communication, and power supply modules.
This rack is designed for continuous online condition monitoring and machinery protection of critical rotating equipment, including steam turbines, gas turbines, compressors, pumps, motors, and generators. The 3500/05 rack is a mandatory component of any 3500 system and supports API 670 compliant architectures.
Ordering Code Breakdown
| Code Segment | Description |
|---|---|
| 3500/05 | System Rack |
| 01 | 19-inch rack, 14 module slots |
| 02 | Rack mount option, full-size (EIA 19-inch) |
| 00 | No agency approval option |
| 00 | Reserved |
| 01 | CE (European conformity) |
Technical Specifications
| Parameter | Details |
|---|---|
| Model / Part Number | 3500/05-01-02-00-00-01 |
| Series | Bently Nevada 3500 Machinery Protection System |
| Product Type | System Rack |
| Rack Size | 19-inch EIA rack |
| Module Slots | 14 slots |
| Mounting Style | Rack mount, full-size |
| Backplane Function | High-speed module communication and power distribution |
| Compatible Modules | 3500/15 Power Supply, TDI, Communications, Monitor modules |
| Standards Support | API 670 compliant system architectures |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| European Compliance | CE |
| Country of Origin | Made in U.S.A |
| Weight | 3 kg |
| Shipping Weight | 4 kg |
| Condition | New & Original, factory sealed |
| Certificate of Origin | Available upon request |
