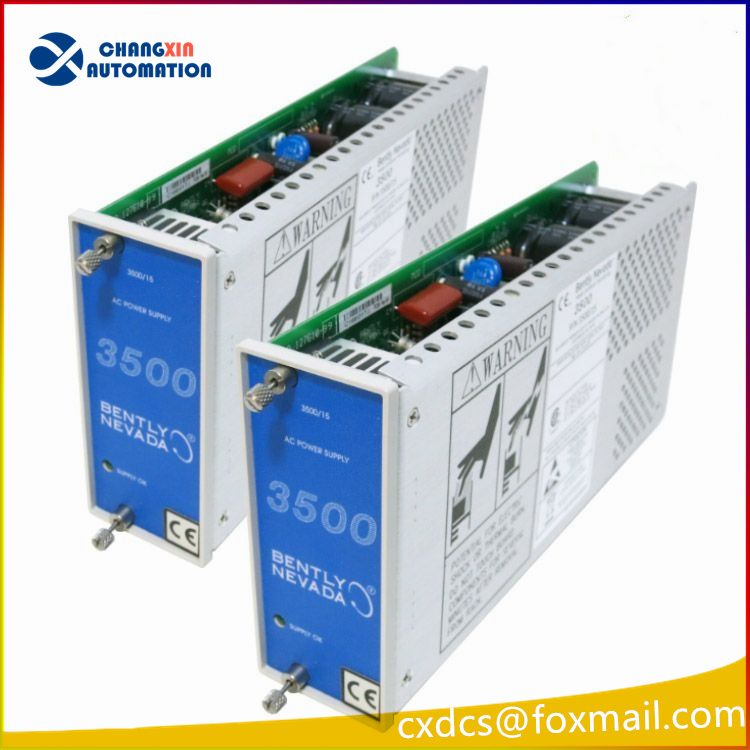

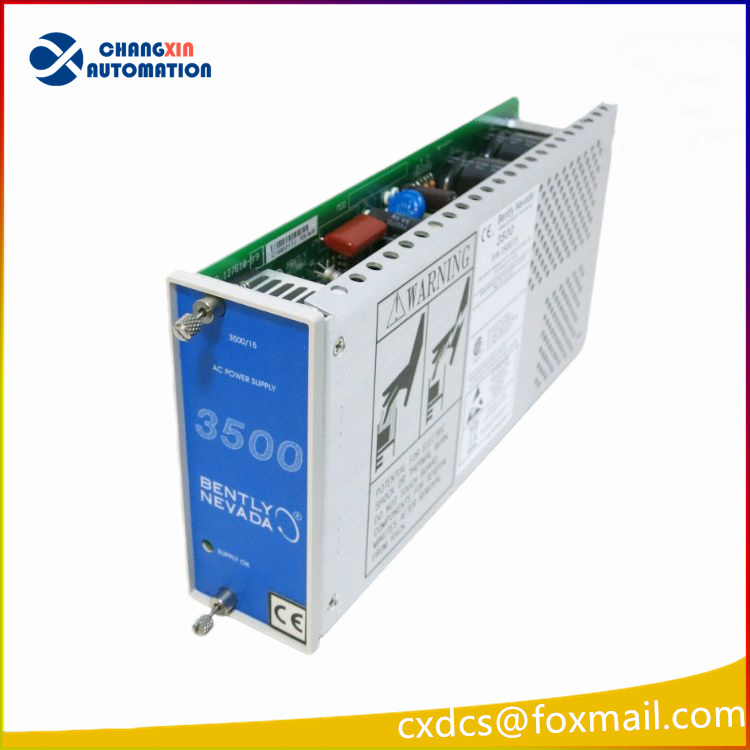

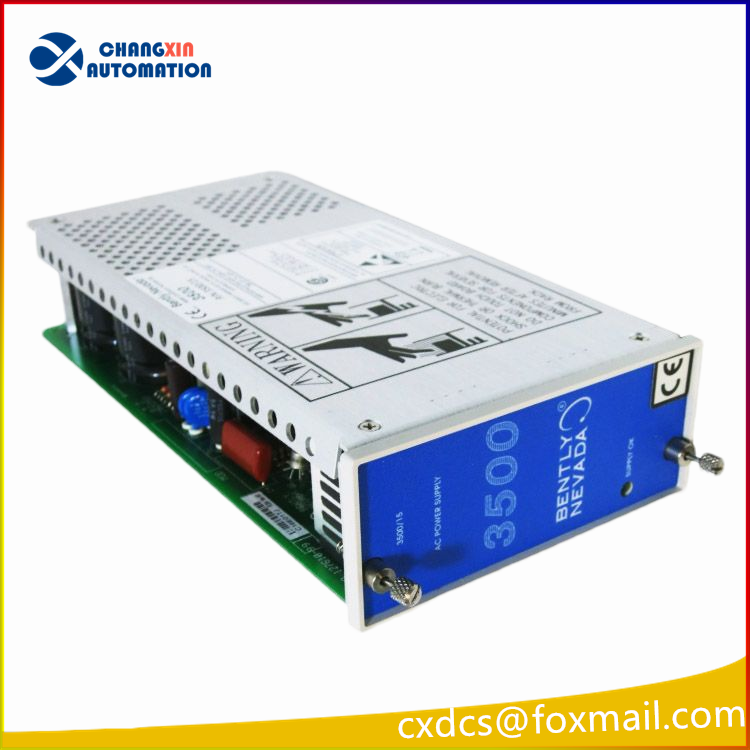

The Bently Nevada 3500/15 127610-01 power module is an AC power module specifically designed for the 3500 series vibration monitoring system. It features modular design, redundancy, wide voltage adaptability, stable output, multiple protection functions, and high reliability. It is suitable for various industrial fields such as power, oil and gas, and manufacturing. Here is a detailed introduction:
I. Modular Design
Half-height module: This power module is of half-height design and needs to be installed in the dedicated slot on the left side of the rack.
Flexible configuration: The rack can accommodate one or two power supplies (either AC or DC combinations are acceptable), and any one of the power supplies can power the entire rack.
Redundant Design
Backup Power Supply: When two power supplies are installed in the rack, the lower power supply serves as the main power supply, and the upper power supply serves as the backup power supply. As long as a second power supply is installed, removing or inserting any power module will not interrupt the operation of the rack.
Enhanced Reliability: This redundant design ensures that the system can continue to operate even when a single power supply fails, thereby improving the reliability of the system.
Wide Voltage Adaptability
Input Voltage Range: The power module accepts various input voltages, such as 100-240 VAC, 50/60 Hz, 2 A, and can adapt to working environments under different power input conditions.
Output Voltage Stability: The power module converts the input voltage into the voltage that the other 3500 modules can use, such as 24 VDC, 5.5 A, ensuring that all components and sensors in the system can receive reliable power supply.
Stable and Reliable Output
High Stability: The power module has stable and reliable power output, which can meet the power requirements of sensors and monitoring equipment in various vibration monitoring systems.
Low Fluctuation: The output voltage fluctuation is small, ensuring the accuracy of monitoring data.
Application scenario
Electric power industry: Used for condition monitoring of power generation equipment to provide stable power support for power facilities.
Petroleum and natural gas industry: Monitors the operating status of key equipment such as pumps, compressors, and power generators to prevent failures.
Manufacturing industry: In the fault prediction and preventive maintenance of large mechanical equipment, provides a continuous and stable power supply.
Description
The 3500 Power Supplies are half-height modules and must be installed in the specially designed slots on the left side of the rack. The 3500 rack can contain
one or two power supplies (any combination of ac and/or dc) and either supply can power a full rack. If installed, the second supply acts as a backup for the
primary supply. When two power supplies are installed in a rack, the supply in the lower slot acts as the primary supply and the supply in the upper slot acts as
the backup supply. Removing or inserting either power supply module will not disrupt operation of the rack as long as a second power supply.
3500/15-03-00-00
3500/15-04-00-00
3500/15-05-00-00
3500/15-01-00-01
3500/15-02-00-01
3500/15-03-00-01
3500/15-01-00-02
3500/15-02-00-02
3500/15-01-01-00
3500/15-02-01-00
3500/15-01-01-01
3500/15-02-01-01
3500/15-05-01-01
3500/15-01-01-02
3500/15-02-01-02
3500/15-01-02-00
3500/15-02-02-00
3500/15-03-02-00
3500/15-01-02-01
3500/15-02-02-01
3500/15-05-02-01
3500/15-01-02-02
3500/15-04-02-02
3500/15-05-02-02
