Bently Nevada 3500/20 125744-02 Interface Module Rack

Bently Nevada 3500/20 125744-02 Interface Module Rack

Detail Information

Brand:BENTLY NEVADA

Module:3500/20 125744-02

Place of Origin:USA

Application:Nuclear Power Plant

Lead Time:In Stock

Payment Terms:T/T

Dimensions:2.5x25x24cm

Weight:0.84 kg

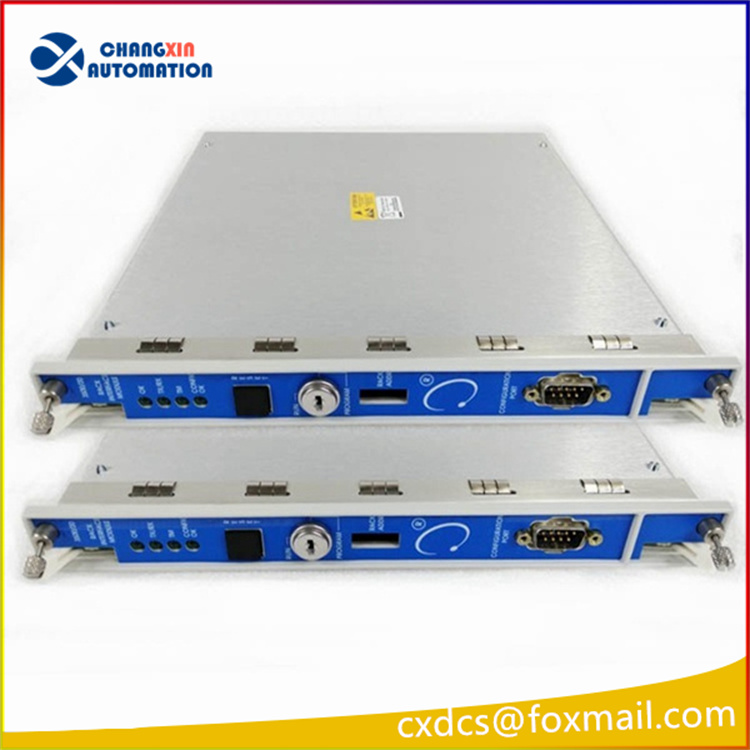

3500/20 Rack Interface Module (RIM) is the primary interface into the 3500 rack. It supports a Bently Nevada proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies).

The RIM provides the connections needed to support current Bently Nevada Communications Processors (Transient Data Interface External (TDIX) and Dynamic Data Interface External (DDIX)). Although the RIM does provide certain functions common to the entire rack, the RIM is not part of the critical monitoring path. The RIM’s operation (or non- operation) has no effect on the proper, normal operation of the overall monitoring system.

125744-02 Standard Rack Interface Module

125744-01 TMR Rack Interface Module

135031-01 RIM I/O Module with Modem Interface

125768-01 RIM I/O Module with RS232/RS422 Interface

125760-01 Data Manager I/O Module

04425545 Grounding Wrist Strap (single use)

00801286 Real-Time Clock IC

128755-01 Firmware IC (for PWA 125744-01 Rev P or later, or for PWA 125744-02 Rev N or later)

00580441 Connector Header, Internal Termination, 3-position, Green

00580436 Connector Header, Internal Termination, 6-position, Green

129768 RIM Operation and Maintenance Manual
