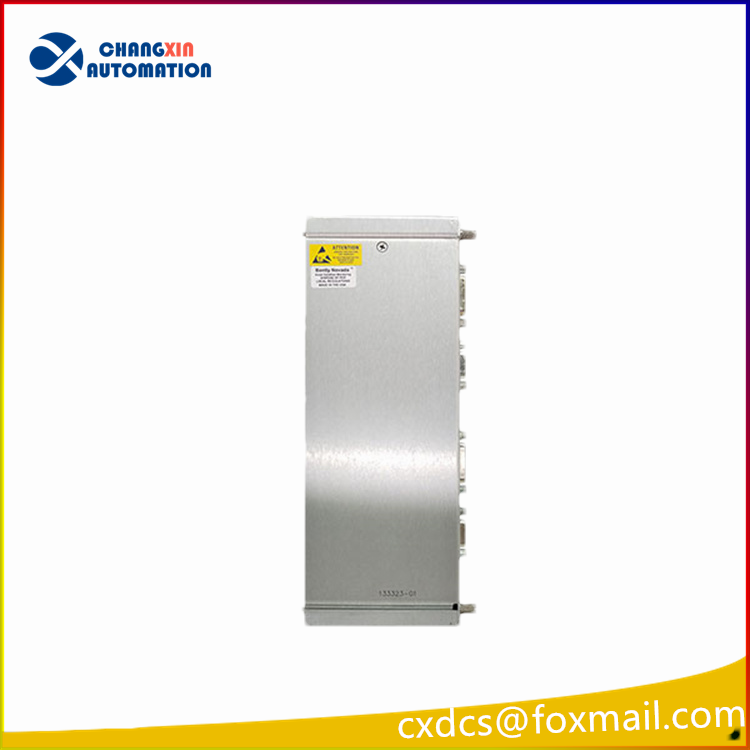

Bently Nevada 3500/20 125768-01 is a rack interface module (RIM I/O Module) in the 3500 series monitoring system produced by Bently Nevada. Here is a detailed introduction:
Functional Features
System Interface: As the main interface of the 3500 rack, it supports a proprietary protocol for configuring the rack and retrieving mechanical information, ensuring smooth communication between all parts of the system.
Communication Support: It has RS232/RS422 interfaces and is compatible with Bently Nevada’s external communication processors such as TDXnet, TDIX, and DDIX, enabling the transmission of monitoring system data to other devices or systems for further analysis and processing.
Non-critical Path: Although it provides certain general functions for the entire rack, it is not on the critical monitoring path and does not directly affect the normal operation of the monitoring system. Even if this module fails, it will not immediately cause the monitoring system to fail.
Redundant Configuration: For triple modular redundancy (TMR) applications, there is a corresponding TMR version of the rack interface module. In addition to performing the standard rack interface module functions, it can also perform “monitor channel comparison”, continuously comparing the outputs of three redundant monitors to ensure the reliability and stability of the system.
Technical Parameters
Dimensions and Weight: Generally speaking, the RIM I/O module is approximately 241.3mm × 24.4mm × 99.1mm in size and weighs about 0.45kg; the entire rack interface module is approximately 241.3mm × 24.4mm × 241.8mm in size and weighs about 0.91kg.
Power Consumption: The typical power consumption is 4.75 watts, and the operating voltage is usually 24V DC.
Communication Rate: The maximum data rate of the RS232 serial communication on the front panel is 38.4k baud, and the communication data rate of the internal modem is 14.4k baud. The maximum baud rate for RS232/RS422 I/O module communication is 38.4k baud, with a maximum RS232 cable length of 30 meters and a maximum RS422 cable length of 1200 meters.
Operating Temperature: The operating temperature range is -30°C to +65°C (-22°F to +150°F).
Application fields
Petroleum and natural gas industry: It is used to monitor the operating status of rotating machinery in equipment such as drilling platforms and refineries, such as pumps, compressors, and turbines, to promptly detect potential faults and ensure production safety and continuity.
Electric power generation industry: It can be applied in thermal power generation, hydropower generation, nuclear power generation and other fields to conduct real-time monitoring of key equipment such as generators and steam turbines, ensuring the stability and reliability of power production.
Manufacturing industry: In the manufacturing industries such as automotive manufacturing, steel production, and chemical engineering, it is used to monitor the operating conditions of various large-scale mechanical equipment, optimize production processes, improve production efficiency, and reduce equipment downtime.
