Description

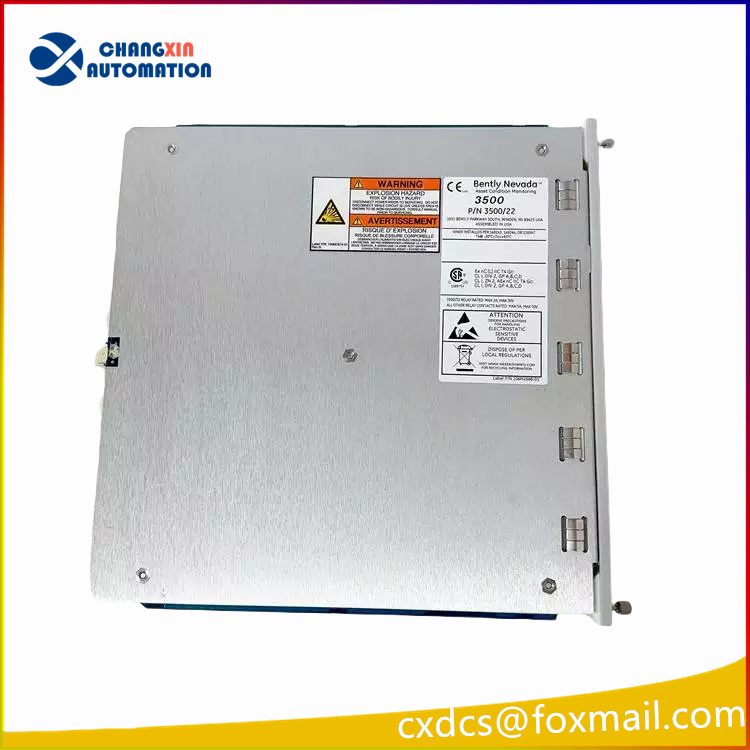

Description The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet. The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information. Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack. Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).
Application fields
Power industry: It is used for vibration monitoring and displacement measurement of rotating mechanical equipment in power plants, substations and other places, such as steam turbines and generators, to ensure the safe operation of equipment.
Petroleum and chemical industry: In environments such as oil refineries and chemical plants, it is used for condition monitoring of various key equipment such as pumps and compressors, to promptly detect potential equipment faults and ensure the continuity of production.
Metallurgical industry: It is used for monitoring large equipment such as rolling mills and fans in metallurgical production. By precisely measuring the vibration and displacement of equipment, it optimizes equipment operation parameters, improves production efficiency and product quality.
Other industrial fields such as papermaking and cement: It is used for monitoring and diagnosing various rotating equipment, helping enterprises achieve preventive maintenance of equipment, reduce maintenance costs, and improve equipment reliability and production efficiency.
