Product Introduction
3500/32M 149986-02 is a 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4-Channel
Relay Module can be independently programmed to perform voting logic. Each relay utilized on the 4-Channel Relay Module includes Alarm Drive Logic. Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. You can program this Alarm Drive to meet your application needs using the 3500 Rack Configuration Software.
Bently Nevada 3500 Vibration Monitoring and Protection Rack, 4 Channel Relay Control Module, P/N: 3500/32M
Make: Bently Nevada
Physical Characteristics
1) Main Module
Dimensions (Height x Width x Depth)
241 mm x 24.4 mm x 242 mm
(9.50 in. x 0.96 in. x 9.52 in.)
Weight 0.7 kg (1.6 lb.)
2) I/O Module
Dimensions (Height x Width x Depth):
241 mm x 24.4 mm x 99.1 mm
(9.50 in. x 0.96 in. x 3.90 in.)
Weight 0.4 kg (1.0 lb.).
-3500 4-Channel Relay Module (one set, front module and I/O module)
3500/32 -AXX-BXX
AA Output Module
01 4-Channel Relay Output Module
BB Agency Approval
00 None
01 CSA/NRTL/C (Class 1, Division 2)
02 ATEX/IECEx/CSA (Class 1, Zone 2)
3500/32-01-00 3500/32-01-01 3500/32-01-02
Do You Need This Information?
Country of Origin: USA
Condition: Brand New
Guarantee: 1 year from the delivery date
Delivery: In Stock
Shipping Terms: DHL/TNT/FedEx/UPS and so on

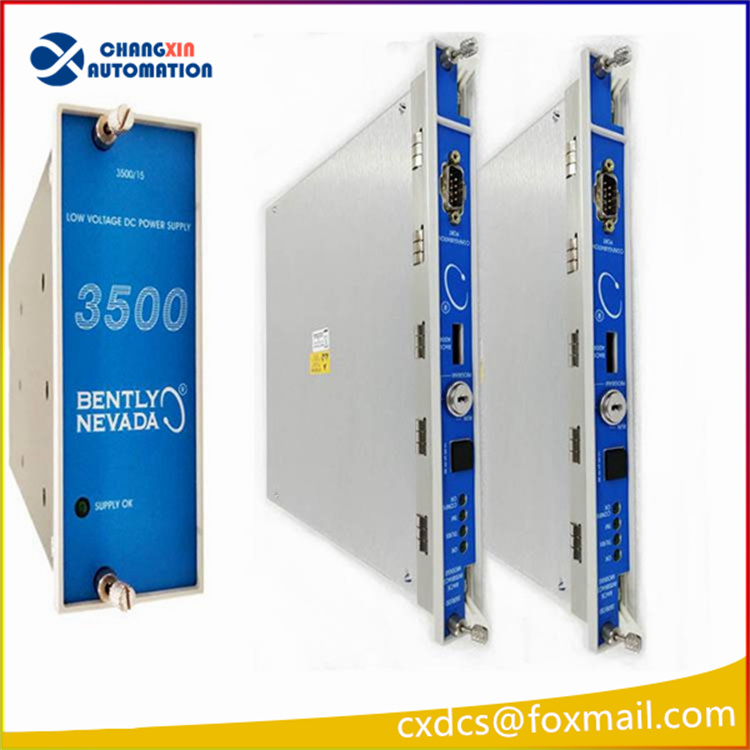

Detailed Pictures
