Explore our selection of Bently Nevada monitoring and protection solutions, designed for reliability and precision in asset management and machinery diagnostics. We offer Bently Nevada vibration monitors, protection systems, machine condition monitoring, and seismic transmitters—perfect for ensuring the safety and efficiency of critical industrial machinery in power, oil & gas, and manufacturing sectors.

⭐SPECIFICATIONS

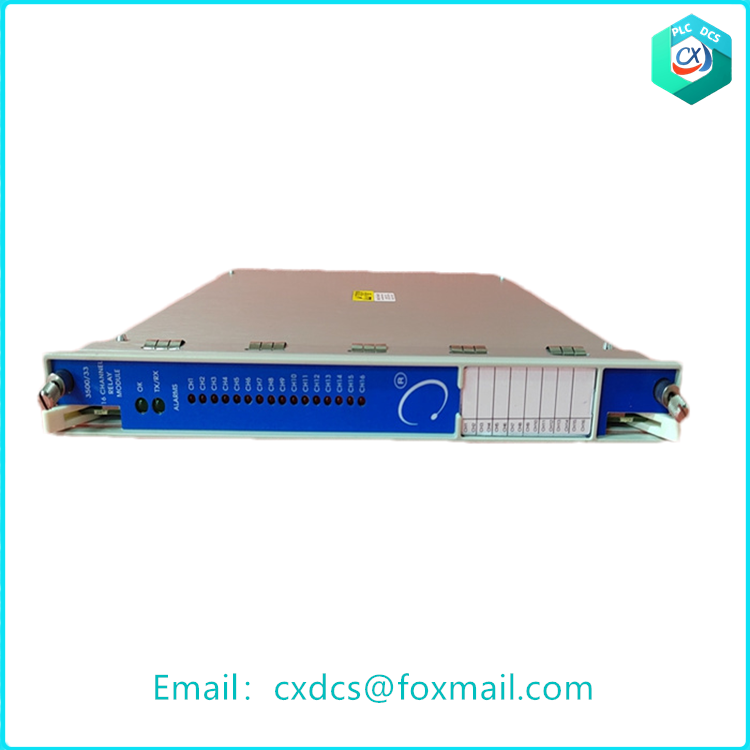

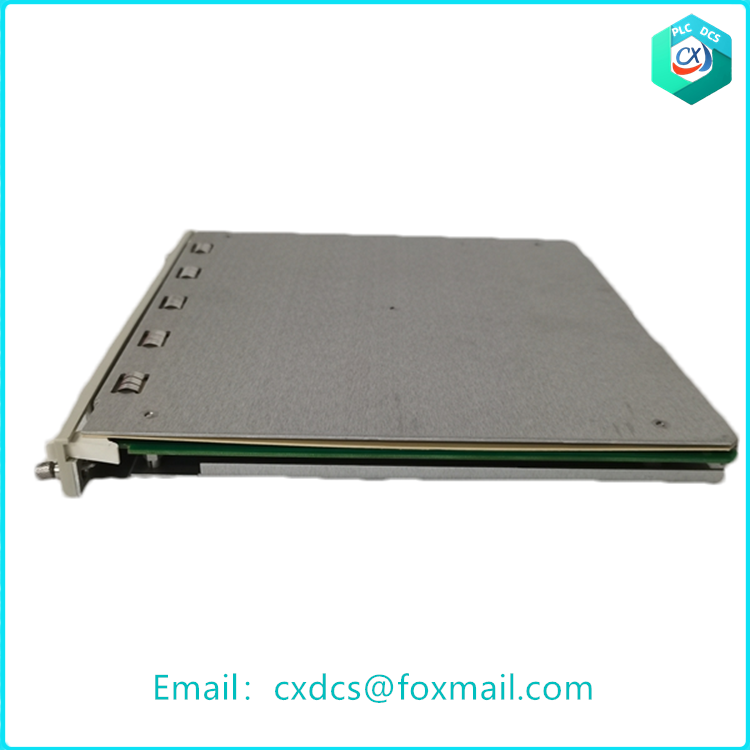

Part Number: 3500/33-PWA149986-01
Manufacturer: Bently Nevada
Series: 3500/33
Availability: In Stock
Dimensions: 241 mm x 24.4 mm x 242 mm
Weight: 0.4 kg

3500/33-PWA149986-01 16-Channel Relay Module is a 16 relay output and is a full-height module used for machinery condition monitoring system. In any of the slots to the right of the Transient Data Interface (TDI) Module, you can place any number of 16-channel relay modules. The 16-Channel Relay Module’s outputs can be individually programmed to perform voting logic. Alarm Drive Logic is included in each relay of the module. The Alarm Drive Logic is programmed using AND and OR logic and may include the following:

• Inputs that cause alarm (alert and danger statuses)
• Not-so-good
• Individually measured variables from any monitor channel in the rack, or any combination of monitor channels

3500/33-PWA149986-01 Ordering Considerations

• The 3500 Rack Config, version 3.3 or later, is required for the 16-Channel Relay Module.
• The 3500 Data Acquisition Software, version 2.40 or later, is required for the 16-Channel Relay Module.
• The 3500 Data Display Software, version 1.40 or later, is required for the 16-Channel Relay Module.
• If the 16-Channel Relay Module is part of functional safety (SIL) system, the restricted voltage is required by the functional safety certificate. For functional safety (SIL) systems, higher voltages are not permitted.

3500/33-PWA149986-01 Circuit Diagram

1. Relay Module
2. I/O Module
3. Status LEDs
4. Relay Channel LEDs
5. Relay Contacts
6. Relay Mode Selection Switch

3500/33-PWA149986-01 Graph

1. Gold-plated relay connections are used in Low Current Output Modules (Ordering Options A03 and A04).

2. Silver relay connections are used in Standard Output Modules (Ordering choices A01 and A02).

chang xin supports a large number of Bently Nevada absolute parts, including 3500/33-PWA149986-01. Please do not hesitate to contact us if you require additional information or have a question.

⭐FREQUENTLY ASKED QUESTIONS

What is Bently Nevada 3500/33-PWA149986-01?

The 3500/33-PWA149986-0 16-Channel Relay Module full-height module provides 16 relay outputs.

How to Check Price and Availability For Channel Relay Module?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How long does it take WOC to repair my boards?
