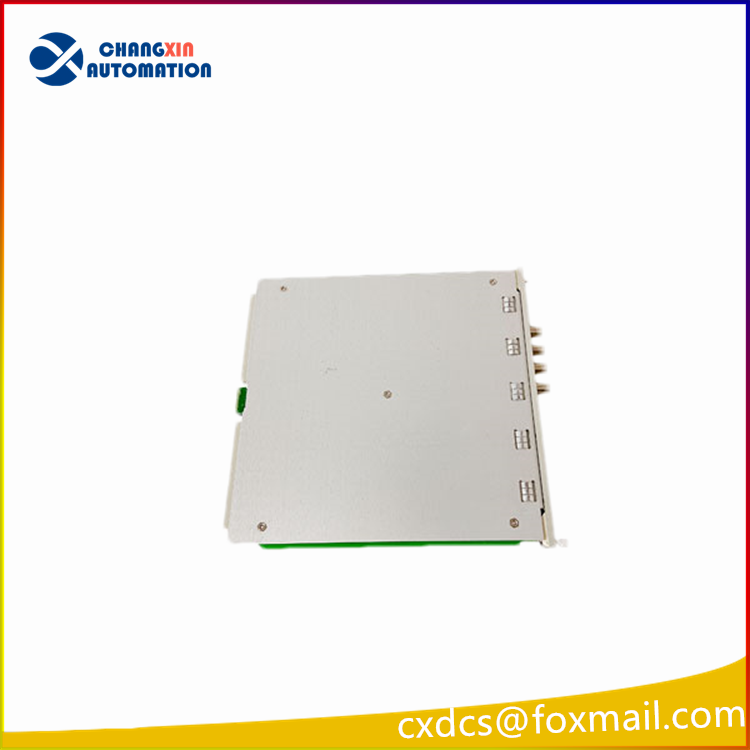

Bently Nevada 3500/40M Proximity Monitor

The 3500/40M Proximitor@ Monitor is a 4-channel monitor that accepts input

from Bently Nevada proximity transducers, conditions the signal to provide

various vibration and position measurements, and compares the conditioned

signals with user-programmable alarms.

The user can program each channel of

the 3500/40M with the 3500 Rack Configuration Software to perform any of the

following functions:

Radial Vibration

Thrust Position

Differential Expansion

Eccentricity

REBAM⑧

Available Documents

The following table lists available documents on the Bently Nevada DVD. You can search for a document using its number or description.

Document Number and Description

130432 3500 System Field Wiring Diagrams

141706 3500 Galvanic Isolator Interface

129766 3500 Monitoring System Rack Weatherproof Housing

136275 3500/08 Diagnostics Access Panel

129767 3500/15 AC and DC Power Supplies

129768 3500/20 Rack Interface Module

161580 3500/22M Transient Data Interface

129770 3500/25 Enhanced Keyphasor* Module

129771 3500/32 and 3500/32M 4-Channel and

3500/34 TMR Relay Module

162291 3500/33 16-Channel Relay Module

143488 3500/40M Proximitor* Monitor Module

143489 3500/42M Proximitor*/Seismic Monitor Module

143490 3500/44M Aeroderivative GT Vibration Monitor Module

135545 3500/45 Position Monitor

144403 3500/46M Hydro Monitor Module

134938 3500/50 and /50M Tachometer Monitor

134939 3500/53 and /53 Overspeed Detection System

134542 3500/60 and /61 Temperature Monitor

146282 3500/77M Recip Cylinder Pressure Monitor

136973 3500/62 Process Variable Monitor

166848 3500/63 Hazardous Gas Detection System

142836 3500/64M Dynamic Pressure Monitor

166226 3500/70M Recip Impulse/Velocity Monitor Module

146479 3500/72M Recip Rod Position Monitor

161232 3500/91 EGD Comm Gateway Module

167060 3500/91 EGD Gateway Protocol Configuration Manual

138629 3500/92 Communication Gateway Module

137412 3500/93 System Display

148636 3500/94 VGA Display Module

145169 3500/95 Integrated PC Display

129772 3500/40 Proximitor Monitor Module

129773 3500/42 Proximitor/Seismic Monitor Module

129774 3400/44 Aeroderivative GT Vibration Monitor Module

172931 3500/65 16-channel Temperature Monitor

The primary purpose of the 3500/40M monitor is to provide

1. Machinery protection by continuously comparing monitored parameters

against configured alarm setpoints in order to drive alarms.

2. Essential machine information for both operations and maintenance

personnel.

Each channel, depending on configuration, typically conditions its input signal

into various parameters called“static values”.

The user can configure alert

setpoints for each active static value and Danger setpoints for any two of the

active static values.

Ordering Information

General

The 3500/40M Module requires the following (or later) firmware, and software revisions:

3500/01 Software – Version 2.50

3500/02 Software – Version 2.20

3500/03 Software – Version 1.21

When ordering I/O Modules with External Terminations the External Termination Blocks and Cable must be ordered separately for each I/O Module.

External Termination Blocks cannot be used with Internal Termination I/O Modules.

Bussed External Termination Blocks are to be used with TMR I/O Modules only.

Proximitor Monitor

3500/40 -AXX –BXX

A: I/O Module Type

0 1 Proximitor I/O Module with Internal Terminations

0 2 Proximitor I/O Module with External Terminations

0 3 Proximitor I/O Module with Internal Barriers and Internal Terminations

0 4 TMR Proximitor I/O Module with External Terminations

B: Agency Approval Option

0 0 None

0 1 CSA/NRTL/C (Class 1, Div 2)

0 2 ATEX/CSA (Class 1, Zone 2

Note: Agency Approval Option B 02 is only

available with Ordering Option; A 03.

External Termination (ET) Blocks

125808-01 Proximitor ET Block (Euro Style Connectors)

128015-01 Proximitor ET Block (Terminal Strip Connectors)

132242-01 Prox/Seismic Bussed TMR ET Block (Euro Style connectors)

132234-01 Prox/Seismic Bussed TMR ET Block (Terminal Strip connectors)

Cables

3500 Transducer (XDCR) Signal to ET Block Cable

129525 -AXXXX-BXX

A: Cable Length

0 0 0 5 5 feet (1.5 metres)

0 0 0 7 7 feet (2.1 metres)

0 0 1 0 10 feet (3.0 metres)

0 0 2 5 25 feet (7.6 metres)

0 0 5 0 50 feet (15.2 metres)

0 1 0 0 100 feet (30.5 metres)

B: Assembly Instructions

0 1 Not assembled

0 2 Assembled

Spares

176449-01 3500/40M Proximitor Monitor

125680-01 Proximitor I/O Module with Internal Terminations

126615-01 Proximitor I/O Module with External Terminations

135489-04 Proximitor I/O Module with Internal Barriers and Internal Terminations.

149716-01 TMR Proximitor I/O Module with External Terminations

143488-01 3500/40M Monitor Manual

00580434 Connector Header, Internal Termination, 8-position, Green

00502133 Connector Header, Internal Termination, 12-position, Blue
