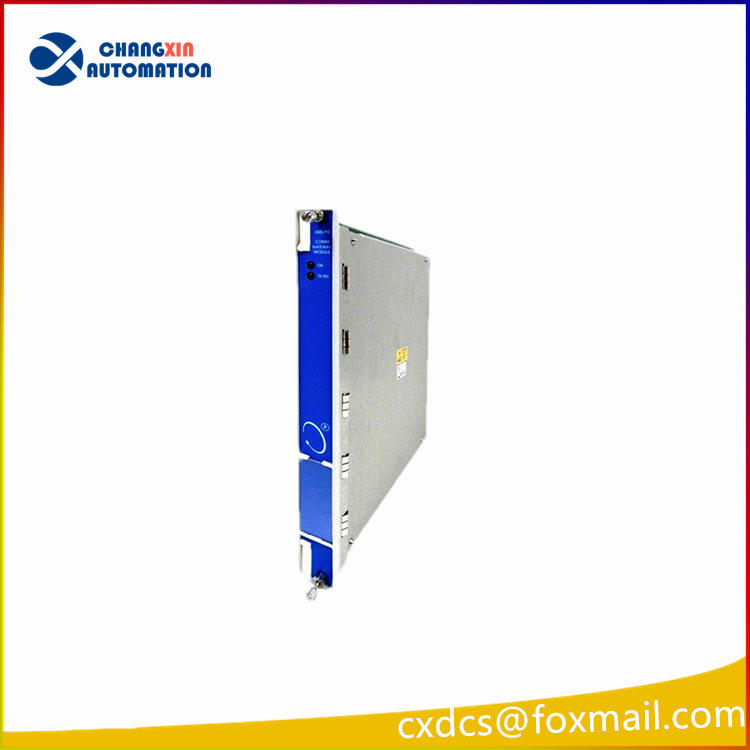

Bently Nevada 3500/54M 286566-01 Overspeed Detection Module

The Bently Nevada 3500/54M 286566-01 Overspeed Detection Module is an overspeed detection module specifically designed for industrial rotating machinery. It features high-precision monitoring, multi-channel design, redundant configuration, and flexible adaptability, and is widely used in overspeed protection of high-speed rotating equipment such as steam turbines and compressors.
Product Overview
Model: 3500/54M
Order Number: 286566-01
Type: Overspeed Detection Module
Series: Bently Nevada 3500 Series
Core Functions: Overspeed Protection, Zero Speed Detection, Multi-speed Segment Monitoring

Technical Specifications
Installation location: Installed in the 3500 frame as an independent protection module.
Signal processing: Extracts dozens of measurements and health indices from each accelerometer point, supports custom algorithms.
Communication protocol: Supports Ethernet Global Data (EGD), GE proprietary protocol, industrial standard Modbus protocol over TCP, etc.
Working voltage: 24Vdc/120Vac (specifically as per the actual configuration).
Weight: Approximately 1-1.6kg (slightly different data from various sources).
Protection level: Supports NEMA 4X protective box (optional), suitable for harsh industrial environments.

Core features
High-precision overspeed detection
Through the dedicated overspeed protection function, the equipment’s rotational speed is monitored in real time to prevent catastrophic failures.
Supports multi-point settable overspeed thresholds, flexibly adapting to different working conditions.
Multi-channel design
Provides two independent monitoring channels, supporting redundancy or multi-point monitoring to ensure data reliability.
Each channel operates independently, avoiding the impact of a single point failure on the entire system.
Real-time alarm and protection
Built-in warning (Alert) and danger (Danger) alarm mechanisms ensure the safe operation of the equipment.
Supports alarm relay output, which can trigger protection actions or notify the control system.
Sensor compatibility
Can be used with Bently Nevada’s eddy current probes, magnetic sensors, and optical sensors, adapting to various monitoring scenarios.
Modular and integration
As part of the 3500 series, it can be seamlessly integrated with other modules (such as the 3500/22 communication module).
Supports hot-swappable function, allowing module replacement without downtime, simplifying maintenance procedures.
