product description：

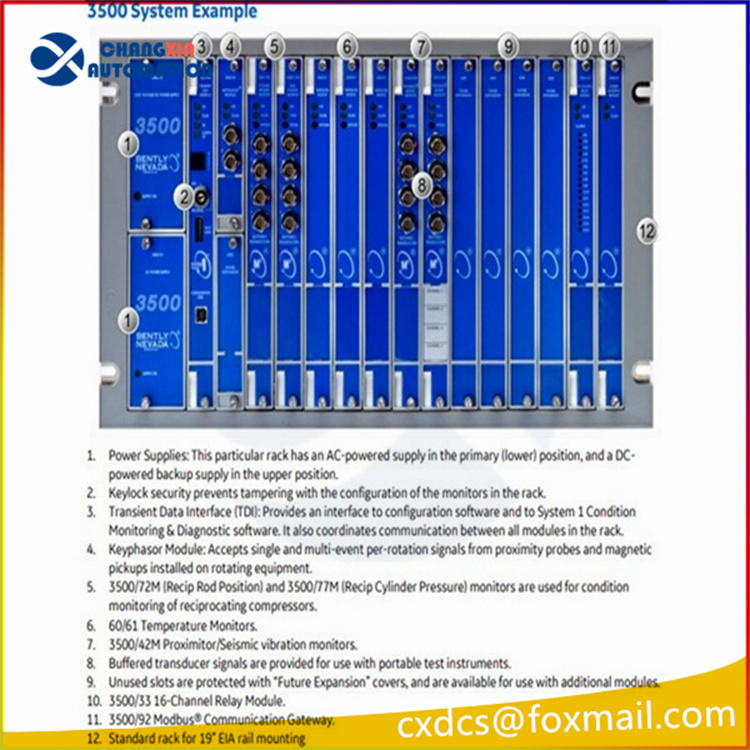

The Bently Nevada 3500 Series Machinery Monitoring System provides continuous, online monitoring suitable for machinery protection and asset condition monitoring applications. It represents our most capable and flexible system in a traditional rack-based design and offers numerous features and advantages not provided in other systems.
Bently Nevada 3500 Series Monitoring System cards are not backward compatible for the 3300 Monitoring systems. If you have any questions or would like information on replacement options, please give us a call.
- 3500/15 AC and DC Power Supplies OK LED
2. Legacy Low Voltage DC Power Input Module 133300-01
3. Legacy High Voltage DC Power Input Module 129478-01
4. Legacy High Voltage AC Power Input Module
5. Legacy Low Voltage AC Power Input Module
6. Universal AC Voltage Power Input Module
7. High Voltage DC Power Input Module
8. Low Voltage DC Power Input Module
bently3500 Bentley power supply High voltage AC 220V. Spare parts are as follows
127610-01 AC power module
125840-01 High Voltage AC Power Input Module (PIM)
125840-02 Low Voltage AC Power Input Module (PIM)
129486-01 HVDC power module
129478-01 High Voltage DC Power Input Module (PIM)
133292-01 Low-voltage DC power module
133300-01 Low Voltage DC Power Input Module (PIM)
Backup fuse (AC PIM and HVDC PIM)
01720045 Spare Fuse (Low voltage DC PIM)
129677-01 Power Operation and Maintenance Manual
Bentley Power bently 3500/15 Order information and models are as follows:
3500/15-AXX-BXX-CXX Option description
A: Power supply type (upper notch)
Low Voltage AC (85-132 Vac rms)
02 High Voltage AC (175-264 Vac rms)
High voltage direct current (88-140 Vdc)
Low voltage DC (20-30 Vdc)
05 Universal AC Power Supply (85-264 Vac rms) (New)
B: Power supply type (dip)
No power supply (only used when a single power supply is required)
Low Voltage AC (85-132 Vac rms)
02 High Voltage AC (175-264 Vac rms)
High voltage direct current (88-140 Vdc)
Low voltage DC (20-30 Vdc)
05 Universal AC Power Supply (85-264 Vac rms) (New)
C: Approve the unit option
00 None
01 Canadian Space Agency /NRTL/C
02 ATEX/IECEx/CSA (Category 1, Zone 2)
Specific models are as follows:
3500/15 (Front panel 127610-01, rear panel 125840-01)
3500/15-02-02-00, install upper and lower slots, dual power supply,
3500/15-02-00-00, install slot, do not install slot, so it is a single power supply
3500/15-05-05-00, install upper and lower slots, dual power supply
The following is the upgraded 3500/15 universal AC power module:
3500/15(106M1079-01 front panel, 106M1081-01 rear panel)
3500/15-05-05-00, fitted with upper and lower slots, is a dual power supply
3500/15-05-00-00, fitted with notch, not fitted with notch, is a single power supply
3500/15-05-05-cn (106m1079-01 * 2 + 106m1081-01 * 2) Product Model: 3500/15 US power supply. CO (CEPA) power supply type can be added (top slot) : 05 = Universal AC voltage (85 to 264 volts AC RMS) Power Supply type (bottom slot) : 05 = General AC voltage (85 to 264 volts RMS) cn = country-specific approval (Quick Reference Guide for cn options and field notification letter in Download section) Operating Temperature: -30 °c to + 65 °c Storage temperature: -40 °c to + 85 °c Condensation: 95%
