product description：
The Bently Nevada 3500 Series Machinery Monitoring System provides continuous, online monitoring suitable for machinery protection and asset condition monitoring applications. It represents our most capable and flexible system in a traditional rack-based design and offers numerous features and advantages not provided in other systems.
Bently Nevada 3500 Series on-line monitoring and protection system

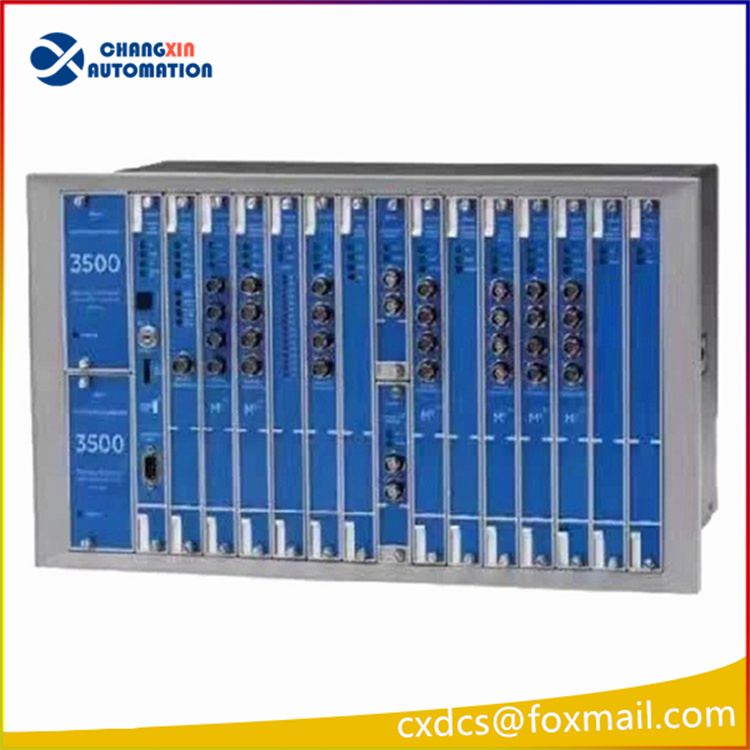

Bently Nevada 3500 Series Machinery Monitoring System
Bently Nevada 3500 Series Monitoring System cards are not backward compatible for the 3300 Monitoring systems. If you have any questions or would like information on replacement options, please give us a call.
(3500 monitoring system, mechanical protection device)
The highly modular design of the 3500 system includes:
3500/05 Instrument frame (required)
One or two 3500/15 power supplies (required)
Bentley 3500 system is used for vibration monitoring and protection of large machinery. Bentley 3500 system must be equipped with frame 3500/05, power 3500/15, frame interface module 3500/22M.
bently3500 Bentley power high voltage AC 220V, spare parts as follows
127610-01 AC power module
125840-01 High-Voltage AC Power Input Module (PIM)
125840-02 Low-Voltage AC Power Input Module (PIM)
129486-01 High voltage DC power module
129478-01 High Voltage DC Power Input Module (PIM)
133292-01 Low voltage DC power module
133300-01 Low Voltage DC Power Input Module (PIM)
Spare fuse (two types of AC PIM and HVDC PIM)
01720045 Spare Fuse (Low voltage DC PIM)
129677-01 Power Operation and Maintenance manual
The order information and model of Bentley power supply bently 3500/15 are as follows:
3500/15-AXX-BXX-CXX option description
A: Power supply type (upper notch)
Low voltage AC (85-132 Vac rms)
02 High Voltage AC (175-264 Vac rms)
High voltage direct current (88-140 Vdc)
Low voltage DC (20-30 Vdc)
05 Universal AC Power Supply (85-264 Vac rms) (New)
B: Power supply type (lower notch)
No power supply (only used if single power supply is required)
Low voltage AC (85-132 Vac rms)
02 High Voltage AC (175-264 Vac rms)
High voltage direct current (88-140 Vdc)
Low voltage DC (20-30 Vdc)
05 Universal AC Power Supply (85-264 Vac rms) (New)
C: Approve the unit option
00 without
01 CSA/NRTL/C
02 ATEX/IECEx/CSA (Class 1, Zone 2)
CN China
Specific models are as follows:
3500/15 (front panel 127610-01, rear panel 125840-01)
3500/15-02-02-00, upper notch and lower notch are installed, so dual power supply,
3500/15-02-00-00, upper notch is installed, lower notch is not installed, so it is a single power supply
3500/15-05-05-00, upper notch and lower notch are installed, so it is dual power supply
The following is the upgraded 3500/15 universal AC power module:
3500/15(106M1079-01 front panel, 106M1081-01 rear panel)
3500/15-05-05-00, upper notch and lower notch are installed, so it is a set of double power supply
