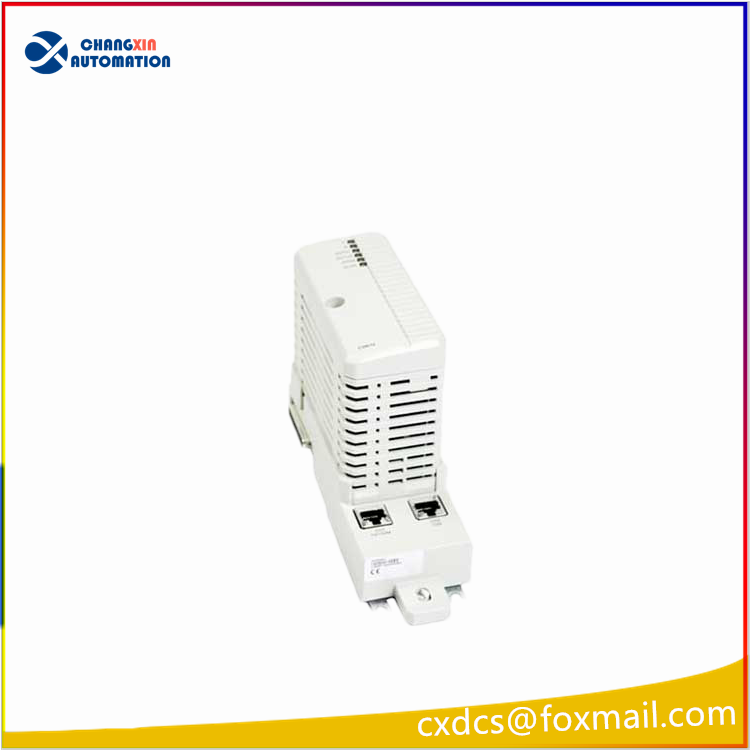

CI867A | 3BSE092688R1 | AC 800M Communication Interface Module

CI867A | 3BSE092688R1 | The AC 800M communication interface module is a high-performance communication module produced by ABB. The following is an introduction to this module:
I. Product Overview
Brand and Model: ABB CI867A 3BSE092688R1
Application Field: Primarily used in industrial automation and process control fields to achieve efficient communication and data transmission between different devices.
Compatibility: This module is compatible with System 800xA 6.0.3.3, 6.1.1 and subsequent versions.

Product Features
Communication Protocol Support:
Supports Modbus TCP protocol, enabling connection between AC 800M controller and external Ethernet devices.
The module is designed to operate reliably in harsh industrial environments, featuring a wide operating temperature range and a sturdy structure.
High-speed Communication Capability:
Provides a communication speed of up to 100 Mbps, capable of handling high-bandwidth data transmission requirements.
Supports redundant configuration, allowing users to expand redundant components in critical sections to prevent system operation from being affected due to the failure of a single component.
System Monitoring and Protection:
The system software can monitor the software and hardware status of the entire system online. Once an abnormal situation is detected, effective measures can be taken immediately to prevent the expansion of the fault.
The processor module of the controller is equipped with a lithium battery to prevent data loss due to power failure.
Hot Swap Support:
The CI867A module supports hot swapping, facilitating maintenance and upgrades during system operation.

Technical Specifications
Dimensions: The net depth/length of the product is 127.5mm, the net height is 186mm, and the net width is 59mm.
Weight: The net weight of the product is 0.7kg.
Interfaces: Includes CEX-Bus logic, communication unit and DC/DC converter, which provides appropriate voltage from a +24V power supply via CEX-Bus.
Ethernet interface: Dual-channel Ethernet unit, Ch1 supports 100 Mbps full-duplex, Ch2 supports 10 Mbps half-duplex

Application scenarios
The CI867A module is widely used in industrial automation and process control fields that require efficient and reliable communication, such as:
Manufacturing: Plays a significant role in the automation of production lines, process control, and robot control, thereby enhancing production efficiency and quality.
Energy industry: Used in scenarios such as power distribution, wind power, and solar power generation, to achieve monitoring, control, and optimization of the power system, and improve energy utilization efficiency.
Transportation: Applied in the automated control systems of transportation facilities such as railways, highways, and ports, to improve operational efficiency and safety.
Building automation: Used in the air conditioning systems, lighting systems, and security systems of buildings, to increase energy efficiency and create a comfortable and safe environment.
Water treatment: In the automated control systems of water plants and sewage treatment plants, to achieve functions such as water quality monitoring and flow control.
