Product Details:
| Brand Name | EPRO |
| Model | CON011 |
| Catalog | CON011 |
| Origin | Germany |

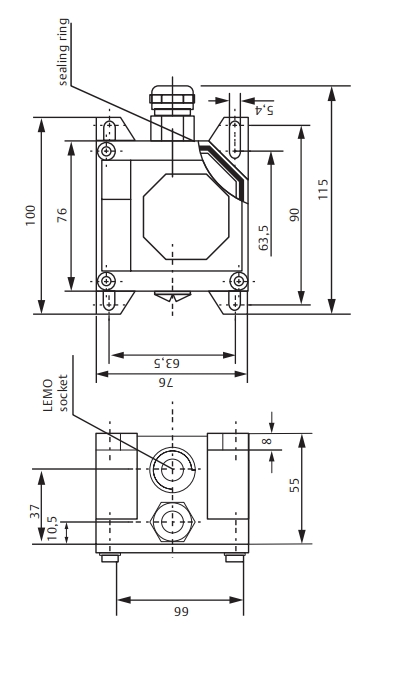

| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $1200 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Intrinsic Safety (iA) | |
| ATEX | II 1 G Ex ia IIC T6 Ga, -20°C ≤ Ta ≤ 60°C (Use with current limiting, e.g.: safety barrier) |
| IEC-Ex | Ex ia IIC T6 Ga, -20°C ≤ Ta ≤ 60°C (Use with current limiting, e.g.: safety barrier) |
| CSA | Class I Division 1, Groups A, B, C, D, T6 |
| Class II, III Division 1, Groups E, F, G, T6 | |
| T6: -25°C ≤ Ta ≤ 60°C (Use with current limiting, e.g.: safety barrier) | |
| Non-sparking (nA) | |
| CSA | Class I Division 2, Groups A, B, C, D |
| Class II, III Division 2, Groups E, F,G | |
| Ex nA II T6 | |
| AEx nA II T6 | |
| T6: -25°C ≤ Ta ≤ 60°C | |
Description:
Sensor Signal Converter designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement, position, eccentricity and speed/key.
Dynamic Performance:
- Frequency Range (-3 dB):0 to 20000 Hz
- Rise Time:<15㎲
- Input Sensor Types:PR6422, PR6423,PR 6424, PR6425, PR6426
- Extended Measuring Range:For Extended Range Use CON011/91x-xxx
Environmental:
- Operating Temperature Range:-30 to 100°C (-22 to 212°F)
- Shock and Vibration:5g @ 60 Hz @ 25°C (77°F)
- Protection Class:IP65
