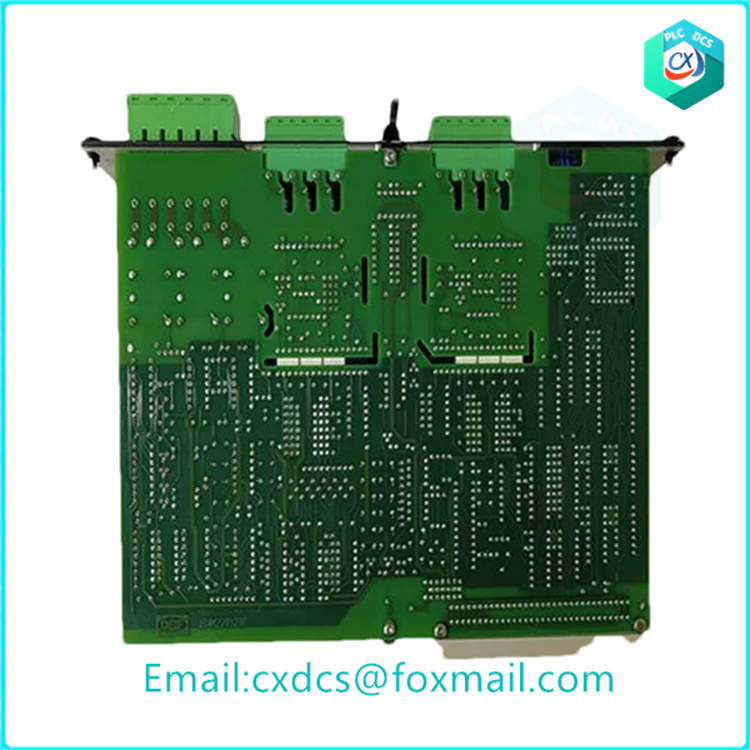

DEIF SCM4.1 2044230022A 2044230020D PCB Module.DEIF is headquartered in Denmark and operates worldwide. From diesel generators to solar panels and wind, from hospitals and data centers to industrial manufacturing, power distribution panels and air traffic control, electricity needs to flow uninterrupted. Efficient, safe and climate friendly.
The SCM4.1 module is a signal processing module manufactured by DEIF [0]. It is capable of performing various signal processing functions, such as power spectrum, cross-spectrum, filtering, integration, differentiation, resampling, histogram, and more
Description
The DEIF SCM4.1 is a sophisticated synchronization and control module developed by DEIF, a leading name in power management solutions. This module is engineered to offer precise control and seamless synchronization of generator sets in various industrial and commercial applications.
The DEIF SCM4.1 is primarily used for managing the synchronization process of multiple generator sets operating in parallel. It ensures that the generators are properly phased and that the load is evenly distributed among them. By accurately monitoring and adjusting parameters such as voltage, frequency, and phase angle, the DEIF SCM4.1 enables stable power generation and distribution.
One of the key advantages of the DEIF SCM4.1 is its user-friendly interface, which allows for easy configuration and operation. It also supports a wide range of communication protocols, making it compatible with different control systems and monitoring devices. This module is designed to be highly reliable, capable of operating in harsh environments, and providing continuous and stable performance.
| Parameter |
Specification |
| Input Voltage |
10 – 30 VDC (Nominal 24 VDC) |
| Power Consumption |
Typically less than 10 W |
| Communication Interfaces |
RS485 (Modbus RTU), Ethernet (Modbus TCP), CAN Bus |
| Frequency Range |
45 – 70 Hz |
| Voltage Regulation Range |
±10% of nominal voltage |
| Phase Angle Monitoring |
Accurate to within ±1° |
| Operating Temperature |
-25°C to +70°C |
| Dimensions |
Compact design suitable for standard control panels |
