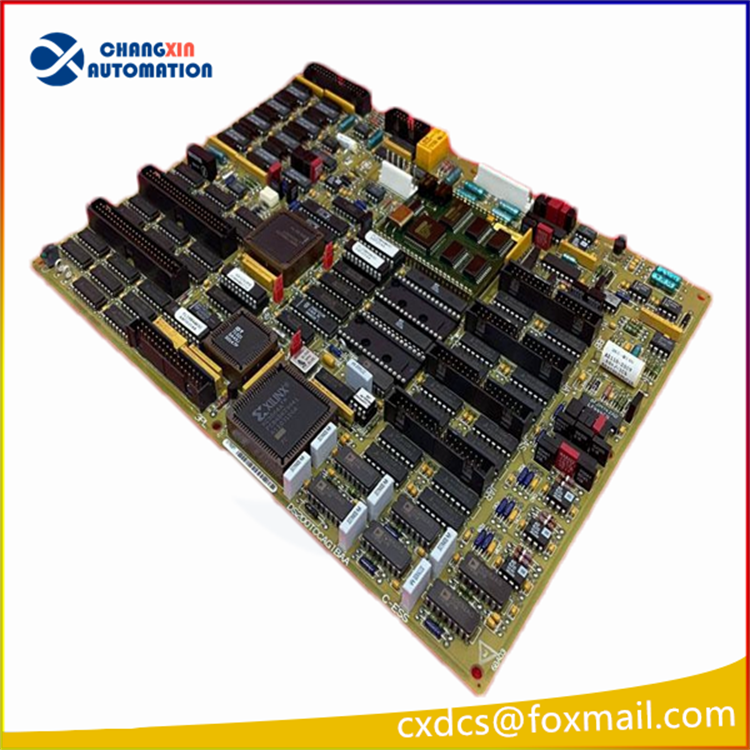

General Electric DS200TCCBG3BDC Pcb Circuit Board

I. Functional Features
Electrical Interface: As an Analog I/O Package (PAIC), it can connect one or two I/O Ethernet networks to the analog input terminal board, enabling signal transmission and conversion.
Signal Processing: This module has powerful signal processing capabilities and supports various analog signal inputs, including voltage, current, etc., and can perform corresponding signal conditioning and conversion.
Compatibility: Seamless integration with other components of the Mark VIe control system ensures stable operation and efficient communication of the system.

Technical Specifications
Simulated Input: The module has ten analog input channels. The first eight inputs can be set to 5V, 10V or 4-20mA current loop input, while the last two inputs can be set to 1mA or 4-20mA current input, meeting the signal acquisition requirements in different scenarios.
Current Loop Output: Two current loop outputs are provided, ranging from 0 to 20mA, and additional hardware is included to support a 0-200mA current on the first output, enhancing the module’s output capability.
Communication Interface: Data is received through dual RJ-45 Ethernet connectors and sent to the controller, ensuring high-speed and stable data exchange.
Power Supply: Powered by a three-pin connector, supporting a 24VDC power input, providing a stable working voltage for the module.

Application scenario
The IS220PCLAH1A module is widely used in the automatic control systems of industrial equipment such as gas turbines and steam turbines. It is responsible for collecting on-site analog signals and transmitting them to the control system for processing and analysis. At the same time, it receives the output signals from the control system to drive the on-site equipment to operate, achieving precise control and efficient operation of the equipment.
