Product Positioning and Core Functions

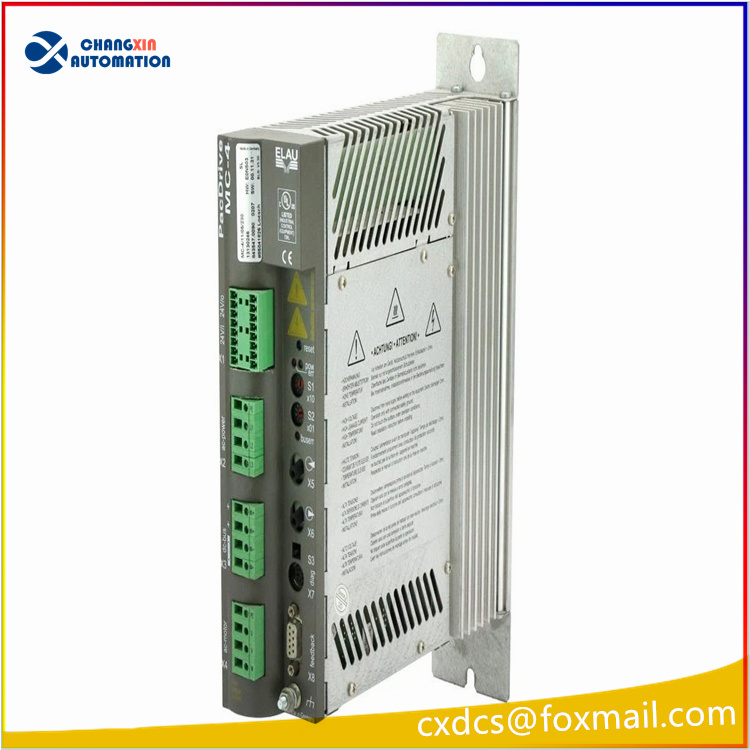

ELAU MC-4/11/05/230 is a fully digital AC servo driver, belonging to the high-end transmission equipment in the field of automation control. Its core function is to achieve high-precision positioning and dynamic response of servo motors through three control modes of position, speed and torque. It is widely used in industrial scenarios requiring precise control, such as packaging machinery, printing equipment, robot joint drives, etc.
Key technical parameters
Rated output power: 10kW, supports three-phase motor drive, suitable for medium and large load scenarios.
Power supply configuration:
Input rated current: 100A, compatible with industrial-grade power supply.
Output voltage: 24V DC, provides stable low-voltage power supply for the control system.
Speed response: Built-in filter, optimizes dynamic performance, reduces vibration and noise.
Protection level: IP20, suitable for installation in control rooms, requires additional protective measures to cope with harsh environments.
Interfaces and scalability:
Supports standard interfaces such as JST and MOLEX, facilitating integration with PLC, HMI, etc.
Number of axes: 3 axes, can be expanded to multi-axis control.
Typical application scenarios:
Packaging machinery: Drives rotary worktables for processes such as filling, capping, and labeling, achieving high-speed and precise positioning.
Printing equipment: Controls the synchronous movement of printing plate rollers to ensure printing quality.
Robot joints: Acts as the driving core of multi-joint robots, enabling complex trajectory planning and motion control.
Automated production lines: Drives conveyor belts, sorting mechanical arms, etc., to enhance production efficiency and flexibility.
MC-4/11/05/230 Servo drive is a high performance servo drive device, mainly used to drive AC motors. The drive adopts advanced digital control technology, has the characteristics of high precision and high dynamic response, and can realize complex motion control and speed control.
MC-4/11/05/230 Main features of servo drive include:
High-precision control: Advanced digital control algorithm can achieve high-precision position, speed and current control, improve the motion accuracy and stability of the equipment.
High-speed response: The driver has the characteristics of fast response, can complete the execution of control instructions in milliseconds, improve the dynamic response performance of the device.
Multiple control modes: Support a variety of control modes, such as position control, speed control, torque control, etc., to meet the needs of different application scenarios.
High integration: The driver integrates a variety of functional modules, such as motor drive, motion control, communication interface, etc., simplifying the system design and layout.
Easy to program and debug: Provide rich programming interfaces and debugging tools, convenient for users to write and debug programs, reduce the difficulty of development.
High reliability: The use of high-quality materials and processes, through strict quality control and testing, to ensure that in a variety of harsh environments can be stable and reliable work.
In short, the MC-4/11/01/400 servo drive is a high-performance, highly reliable servo drive device, suitable for a variety of servo control applications requiring high precision and high dynamic response, such as CNC machine tools, packaging machinery, electronic equipment, etc.
