Product Description

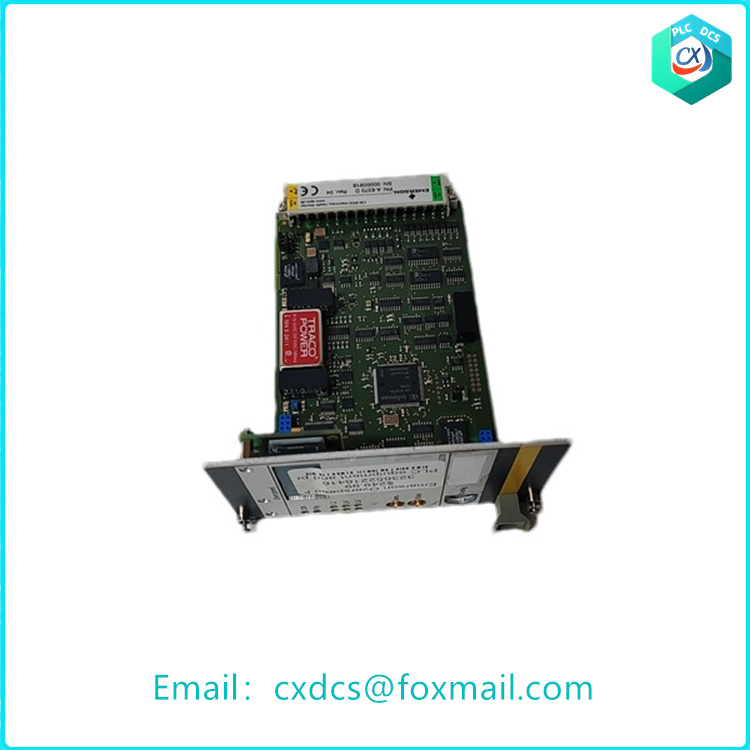

The EMERSON A6370D overspeed measurement module is a key monitoring device launched by Emerson for industrial automation and process control systems. The following is a detailed analysis of this module:
Product positioning and core functions
Overspeed protection monitor: The A6370D is an important component of the AMS6300 SIS overspeed protection system, specifically designed for industrial rotating machinery. It can monitor rotational speed in real time and trigger protection mechanisms.
Signal compatibility: Supports input from eddy current sensors, Hall element sensors and magnetic (VR) sensors, with a voltage range of 1Vpp to 30V RMS and a frequency range of 0 to 20kHz, compatible with a variety of industrial sensors.
Technical parameters and performance
Digital/analog interface: Equipped with USB B-type configuration interface, RS485 (supporting 32 devices) and Profibus DP (A6370D/DP model, supporting 31 devices), the baud rate can be selected as 38400, 57600, 115200, and the maximum data transmission rate is 12Mbit/s.
Current output: Range 0/4 to 20mA or 20 to 4/0mA, accuracy ±1% full scale, maximum load <500Ω, ensuring the stability of signal transmission.
Response speed: The typical response time of the speed mode is ≤ measurement time +8ms (at 3000 min⁻¹), and the detection delay in the rotation direction is <3 times the input signal period time +8ms, meeting the requirements of high-speed monitoring.
Structural design and reliability
Modular design: It is installed in combination with the backplane of the A6371 system on a 19-inch rack (84HP wide, 3RU high), facilitating integration into existing control systems.
Durability: With a robust structure, it can adapt to harsh industrial environments and ensure long-term stable operation.
Application field
Key industry coverage: Widely applied in manufacturing, power generation, oil and gas, transportation and other fields that require overspeed protection to ensure equipment safety.
Typical application scenarios: In high-speed rotating equipment such as steam turbines and compressors, it can monitor the rotational speed in real time and prevent mechanical damage or safety accidents caused by overspeed.
