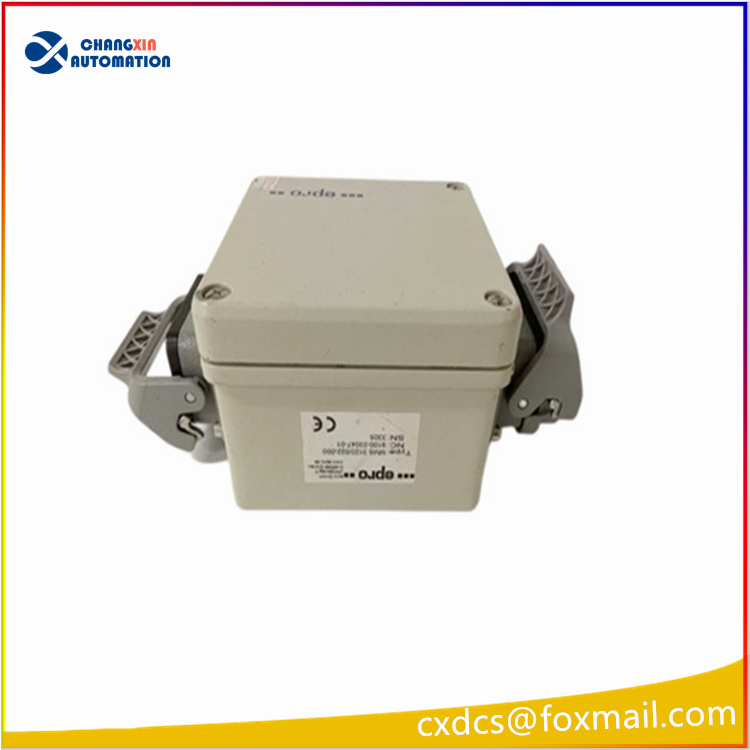

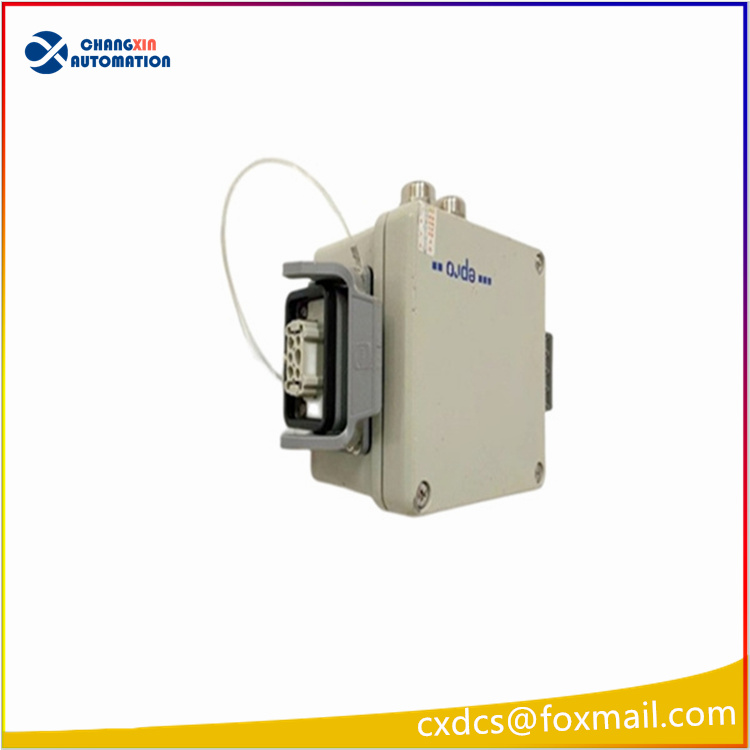

EPRO MMS3120/022-100 Bearing Vibration Measurement Module

Product features
High-precision measurement: Equipped with high-precision sensors, it can accurately capture the vibration signals of the bearings and monitor the amplitude, frequency and waveform of the vibration in real time.
Dual-channel design: Each channel can be used independently or jointly, providing flexible measurement methods.
Built-in microprocessor: Parameter settings are convenient and easy, and flexible configuration is supported through configuration software.
Multiple protection functions: Including input overload protection, output overcurrent limit protection, output current long-term short-circuit protection, etc., to ensure the safe and stable operation of the equipment.
High reliability: Designed for industrial environments, ensuring reliability and durability, with a protection level of IP65, and can be installed locally.
Multiple output methods: Provide two 0/4-20mA current outputs and five configurable switch outputs, facilitating connection to data acquisition systems or monitoring equipment.
Support for redundant power supply: Improves system reliability and ensures normal operation even in the event of power failure.

Technical Specifications
Sensor Input: Supports PR9268/20, PR9268/30, PR9268/60 and PR9268/70 series seismic sensor inputs.
Frequency Range: High-pass filter 5/10/15Hz, low-pass filter 50-1500Hz.
Measurement Range: Can be freely selected through configuration software depending on the sensor used.
Current Output Range: 0/4-20mA or 20-4/0mA, maximum load 500 ohms, with open circuit and short circuit protection.
Switching Output: Can be set arbitrarily as limit or normal channel function, providing 5 optocoupler output or relay node output options.
Power Supply: +24V DC, allowable voltage range +18…+31.2VDC, maximum power consumption 6W.
Environmental Conditions: Operating temperature range -20℃…+65℃, allowable relative humidity 0-95% (no condensation), strong vibration and shock resistance
