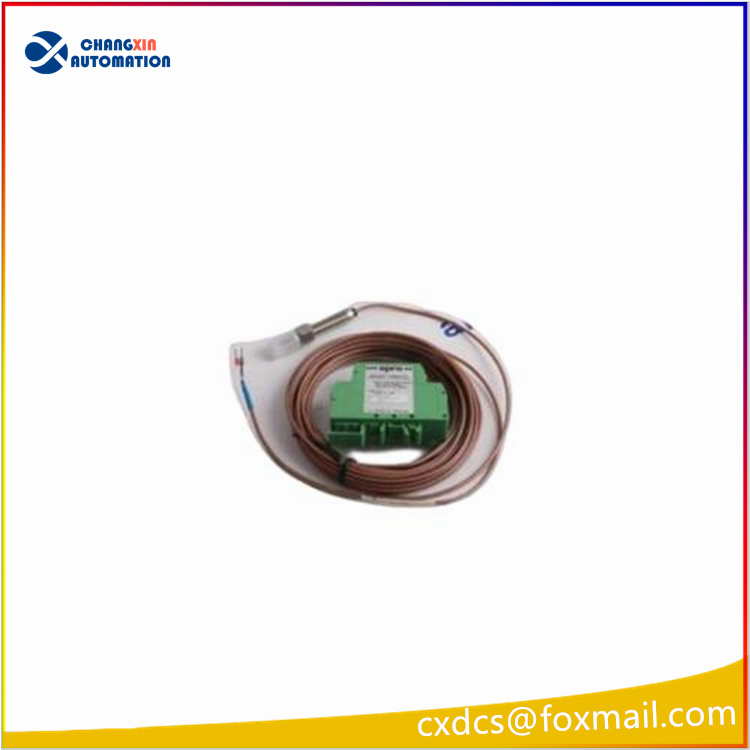

EPRO PR6423/002-131 CON031 Eddy Current Sensor

The EPRO PR6423/002-131 CON031 is a dual-channel speed measurement module used to monitor the rotation speed of an axis. It can be used for measuring the rotation speed of two axes, two axes’ zero speed, or two axes’ key phase pulse signals, each with a key phase trigger identification used to describe the phase. The module has several features, including an expanded self-check function, a built-in sensor self-check function, and password-protected operation levels. It is compatible with eddy current sensors such as the PR6423/002-131 CON031 series with a preamplifier CON0X1. The module also has an electrically isolated current output and an PR6423/002-131 CON031 port for on-site configuration and communication, allowing for the reading of measurement values.

The EPRO PR6423-002-131 CON0 is designed to measure the rotation speed of an axis using a trigger gear and a pulse sensor’s output. The module can be used to monitor the rotation direction of one axis, the speed difference between two axes, or as part of a multi-channel or redundant system. It can be used in conjunction with other module measurements to form a turbine mechanical protection system and provide input to analysis and diagnostic systems, on-site bus systems, distributed control systems, power plants/mainframe computers, and networks such as WAN/LAN and local area networks. The module’s measurement can help improve efficiency, operational safety, and extend machinery life for steam turbines, gas turbines, water turbines, compressors, fans, centrifuges, and other turbo machinery.

To use the EPRO PR6423-002-131 CON0, at least one displacement probe must be installed to measure the position of the piston rod. This will notify you when the piston is descending, indicating wear on the rider belt. You can then set a shutdown protection threshold for automatic tripping. The average pole drop parameter can represent the actual wear of the rider belt or the actual movement of the piston rod when there are no applied factors.

There is no one-size-fits-all approach to using the EPRO PR6423-002-131 CON0. However, it can be used in various industries to monitor the rotation speed of different machinery. For example, in the oil and gas industry, the module can be used to monitor the speed of compressors and turbines. The module’s compatibility with eddy current sensors makes it useful in the automotive industry for measuring engine speed. It can also be used in the aerospace industry for monitoring the rotation speed of jet engines.

One potential downside to using the EPRO PR6423-002-131 CON0 is its cost, which may be prohibitive for some users. Additionally, the module’s compatibility with only eddy current sensors may limit its versatility in some applications. However, the electrically isolated current output and PR6423-002-131 CON0 port make it easy to integrate with other systems, making it an attractive option for many users.

The EPRO PR6423-002-131 CON0 is a dual-channel speed measurement module that can be used to monitor the rotation speed of an axis. The module has several features, including an expanded self-check function, a built-in sensor self-check function, and password-protected operation levels. It is compatible with eddy current sensors such as the PR642 or PR9376 series with a preamplifier CON0X1 and has an electrically isolated current output and an RS232/485 port for on-site configuration and communication. The module can be used in various industries to monitor the rotation speed of different machinery. However, its cost and compatibility with only eddy current sensors may limit its versatility in some applications.
