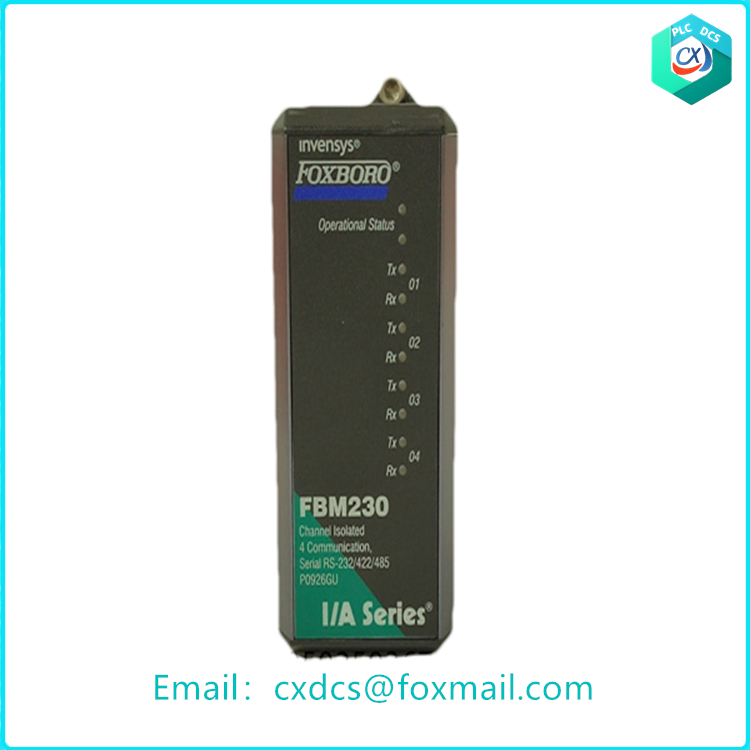

The Foxboro FBM230 is not a traditional independent power module, but rather belongs to the Fieldbus Module (FBM) series of Foxboro, mainly used for distributed control in industrial automation systems. The following is a detailed description of the FBM230:
The core functions of FBM230
FBM230 is an input/output (I/O) module used to connect field devices (such as sensors, actuators, etc.) to Foxboro’s distributed control system (DCS). Its main functions include:
Signal acquisition and processing: Supports multiple analog and digital signal inputs/outputs, suitable for monitoring and control in industrial sites.
Communication interfaces: Provides serial communication interfaces (such as RS-232, RS-422, RS-485), enabling data exchange with other devices or systems.
Redundant design: Some models support redundant configuration to enhance system reliability and fault tolerance.
2. Relationship between FBM230 and Power Module
Power Requirements: FBM230 itself requires an external power supply (typically 24V DC), but it does not provide power output functionality.
Power Module Compatibility: In practical applications, FBM230 needs to be used in conjunction with an independent power module (such as other power components from Foxboro or third-party power supplies) to ensure its normal operation.
3. Technical Parameters of FBM230
Input/Output Channels: Supports multiple types of I/O channels, with the specific quantity and types depending on the model.
Communication Protocols: Supports industrial communication protocols such as Modbus.
Operating Environment: Suitable for industrial environments with a high protection rating (such as IP20).
Size and Installation: Modular design for easy installation and maintenance.
4. Application Scenarios
The FBM230 is widely applied in the following fields:
Industrial automation: such as production line control, process monitoring, etc.
Energy management: such as automation systems in the power, oil, and natural gas industries.
Manufacturing: such as equipment condition monitoring, production process optimization, etc.
