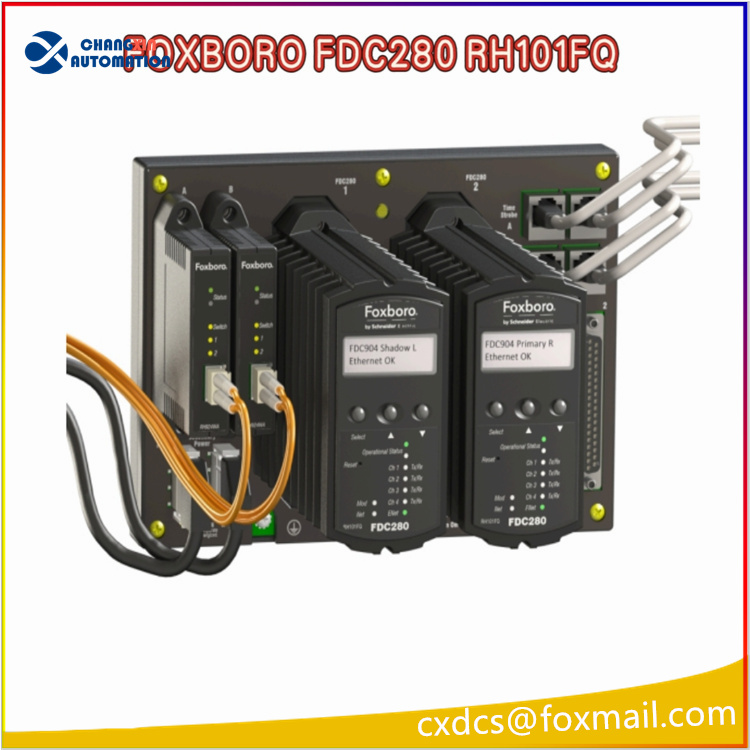

The FOXBORO FDC280 RH101FQ is a field device controller of the Foxboro brand under Schneider Electric. It is a core component of the distributed control system (DCS) and is mainly applied in industrial automation fields such as oil refining, chemical engineering, and power. The following is a detailed introduction:
I. Core Functions
Integrated Control and Communication: Integrates control algorithm processing, I/O data acquisition, field communication, and diagnostic functions, serving as the control center of the DCS system. It supports multi-task concurrency and rapid response cycle control.
Multi-protocol Communication Support: Supports multiple communication protocols such as FOUNDATION Fieldbus (FF), HART, and Modbus, enabling direct communication with intelligent transmitters, actuators, and other devices for seamless integration.
Redundant Configuration: Supports redundant configuration with dual main control channels, ensuring high availability and system hot-swapping. This guarantees continuous operation even in the event of a single channel failure.
Local Control Logic Execution: Can independently execute control strategies on-site. Even if communication with the main system is interrupted, it can maintain core control tasks to ensure production safety.
Technical Parameters
Power Supply Voltage: 24V DC (supports redundant power supply), ensuring normal operation even in the event of a single power supply failure.
Communication Interfaces: Includes Fieldbus, Modbus, Ethernet, etc., meeting the communication requirements of different industrial sites.
Control Strategies: Supports various control strategies such as PID control, sequence control, and logic control, adapting to various complex industrial control scenarios.
Environmental Temperature Range: -20°C to +70°C (industrial grade), suitable for harsh industrial environments.

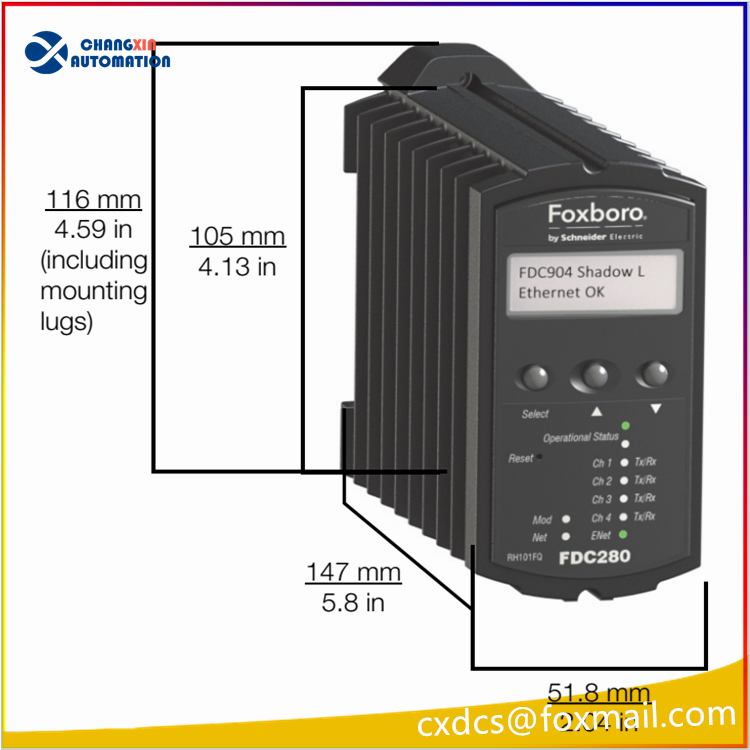

Installation Methods: Rack-mounted or wall-mounted on-site, flexibly adapting to different installation space requirements.
Protection Grade: Typically IP20 (depending on the installation enclosure), providing basic dust and water protection.
Software Support
FOXBORO FDC280 RH101FQ works in conjunction with Foxboro’s control system software (such as Foxboro Evo or I/A Series) for engineering configuration, monitoring, and remote diagnosis. These software packages offer intuitive user interfaces and powerful functions, enabling users to easily configure, debug, and maintain the controller.
Application Scenarios
The FOXBORO FDC280 RH101FQ is widely used in process control systems and distributed control systems (DCS), especially in industrial automation scenarios such as oil refining, chemical engineering, and power generation. In these settings, it can achieve precise control and efficient management of various industrial equipment, enhancing production efficiency and product quality.
