Siemens 1FL6062-1AC61-2LG Servo Moto

Overview

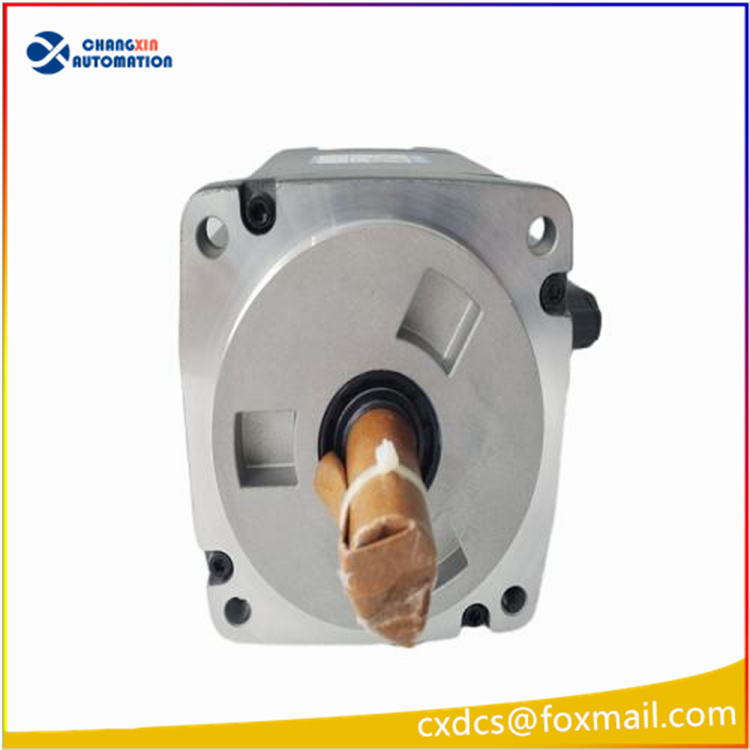

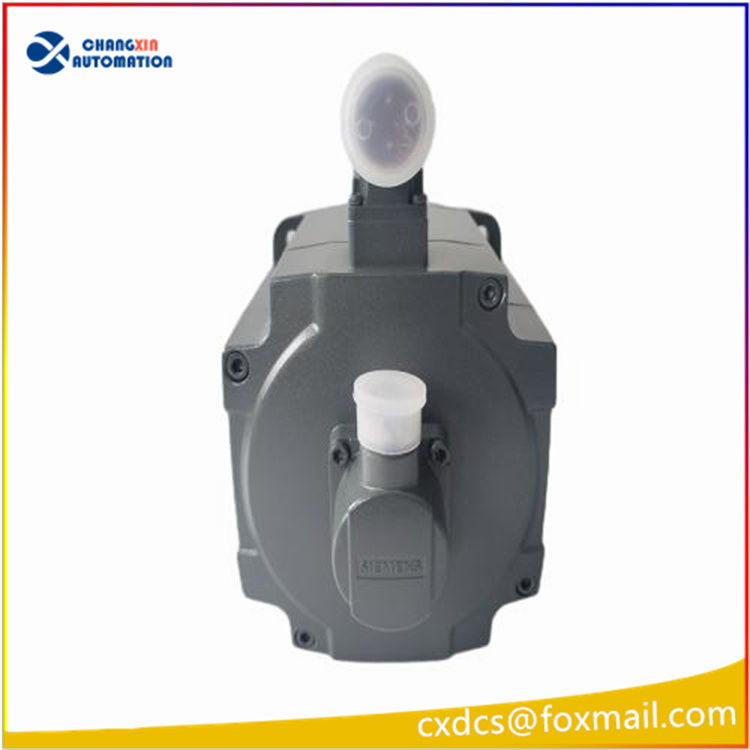

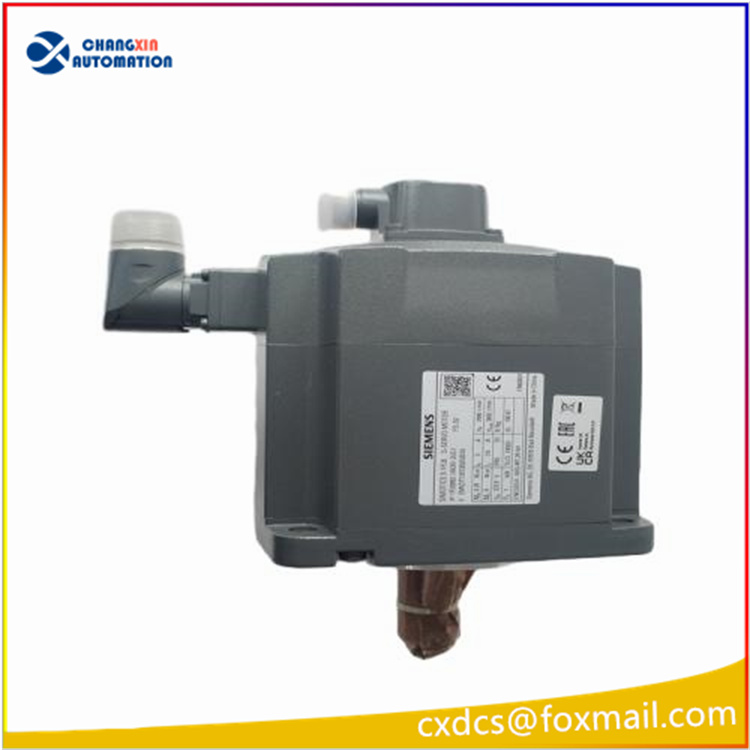

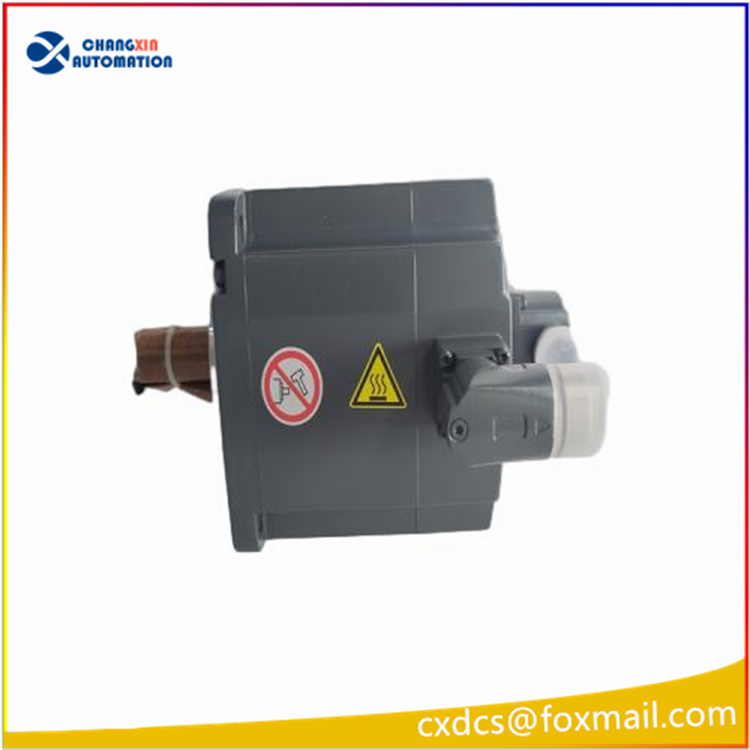

The Siemens 1FL6062-1AC61-2LG Servo Motor (1FL6062-1AC61-2LG1) is a high-performance, low-inertia servo motor designed for precise motion control applications. With a rated power of 1 kW, operating voltage of 3AC 400 V, and a rated speed of 2000 rpm, this motor delivers reliable torque, high efficiency, and exceptional positioning accuracy.

Equipped with a 20-bit absolute encoder (12-bit multi-turn) and IP65 protection, this motor is ideal for demanding industrial environments. It is fully compatible with SINAMICS V70 and V90 converters, making integration seamless and cost-effective.

Benefit

• High precision motion control with absolute encoder

• Robust IP65 protection for harsh industrial conditions

• Optimized torque performance with low inertia design

• Seamless integration with Siemens SINAMICS drives

• Maintenance-friendly and long service life

Function & Features

• Rated Power: 1 kW

• Operating Voltage: 3AC 400 V

• Rated Speed (Nn): 2000 rpm

• Rated Torque (MN): 4.78 Nm

• Standstill Torque (M0): 6 Nm

• Shaft Height: 65 mm

• Shaft Type: Plain shaft, tolerance N

• Encoder: Absolute encoder, 20-bit (12-bit multi-turn)

• Connection Type: Angle plug

• Holding Brake: Not included

• Degree of Protection: IP65 with sealing ring

• Drive Compatibility: SINAMICS V70 & V90

Application

• Automation systems

• Packaging machinery

• CNC and machine tools

• Robotics and material handling

• Industrial motion control solutions
