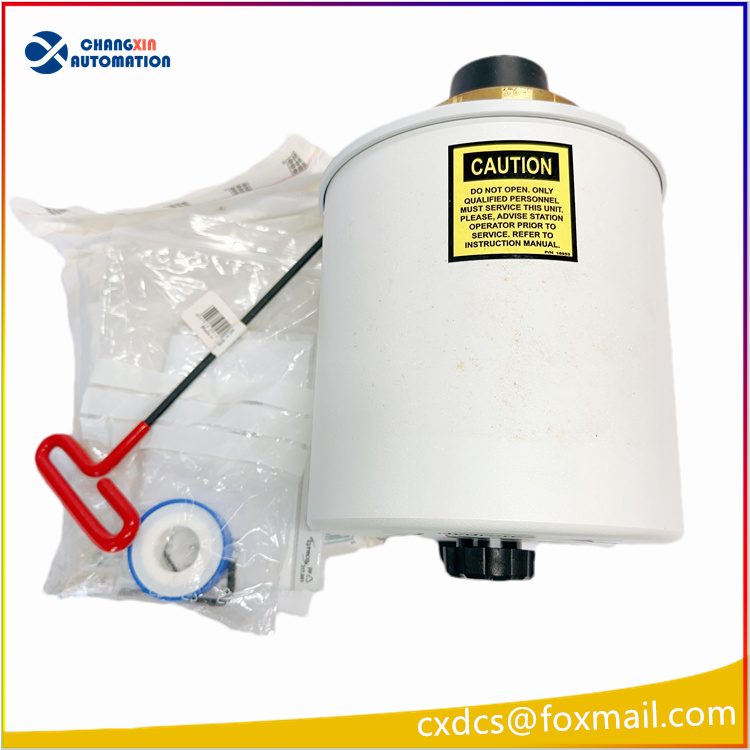

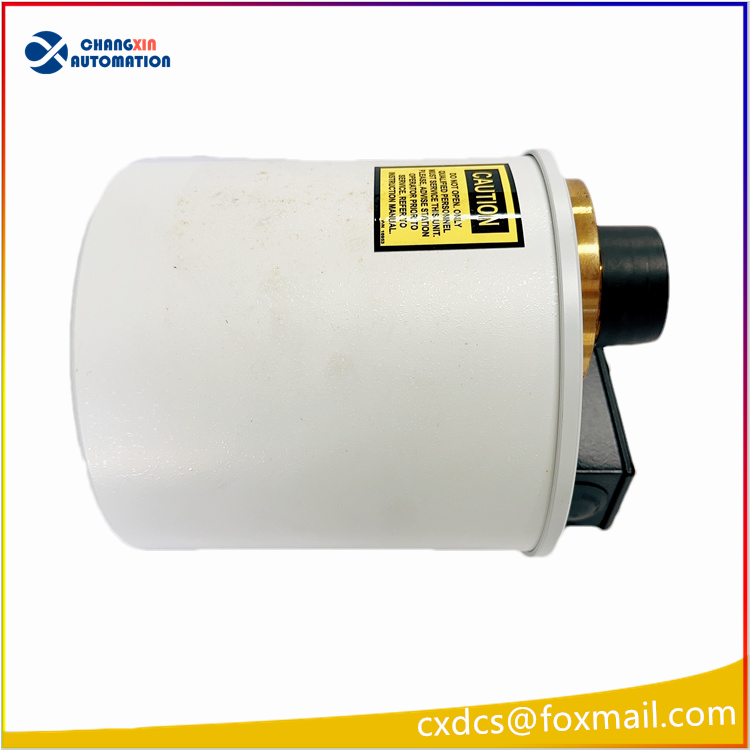

GE 201TI Microprocessor-based electrical transmitter

A: Hydran 201Ti intelligent transmitter H201 Ti intelligent transmitter has a small cylindrical housing, directly connected to the dissolved gas monitoring valve of the transformer through a brass adapter. H201Ti includes one – one
Standard HYDRAN 8 sensor, thermal conditioning system and microprocessor-based electrical transmitter. The terminal is easy to connect to AC power supply, alarm contacts (gas high, gas high – high and system failure) and
Supervised connections, and an analog 0-1mA non-isolated output. Isolated output 4-20mA is also available. An RS-232 connector for a computer interface is also provided. Features film keyboard and LCD display, none
It can also be used by external computers.
Hydran 201Ci-1 Single Channel controller The H201Ci-1 control unit is a complete single channel controller used in conjunction with the H201Ti Intelligent transmitter. Digital/analog boards handle communication transactions
It also provides display, alarm and analog output functions. The main terminal is easy to connect: AC power supply; Alarm contacts (high gas, high gas and system failure); Non-isolated analog output available in jumper configuration
Isolated analog output for (0-1mA, 4-20mA, 0-1V, 0-10V) and jumper configurations. The auxiliary terminal is used as a supervisory connection to the H201 Ti intelligent transmitter. Connectors for communication: RS-
232 to computer or optional modem, RS-485 connected to other H201Ci controller. The front door is fitted with a light-emitting diode digital display that displays the gas content in parts per million. There are two more gases
Alarm light.

Three: H201Ci-C Communication controller H201Ci-C control unit is a communication controller. It supervises up to four H201 Ti smart transmitters, such as a transformer cabinet, through isolated supervisory connections
(Includes phases A,B,C, and sometimes – an auxiliary). The H201Ci-C communication controller has no display and does not provide alarm and analog output, it is an H201Ti intelligent transmitter network via RS-232 or
A special interface for connecting the modem to the computer. The H201Ci-C is housed in a small NEMA-4X box and includes a digital circuit board that handles communications transactions, with a main terminal for easy AC power connection. Be used for
Connectors for communication: RS-232 to the computer or optional modem (4 connectors), RS-485 to other H201Ci controllers.
Four: H201Ci-4 Four-channel controller The H201Ci-4 control unit is a complete four-channel controller. Designed for use with up to four H201T smart transmitters, housed in a NEMA-4X
Inside. The digital/analog board handles communication transactions and provides scan display output, alarm and analog output. The main terminal is easy to connect AC power supply and alarm contacts (high gas, high gas and system failure)
Barrier). Connectors for communication: RS-232 to computer or optional modem, isolation monitor connection to H201Ti smart transmitter, RS-485 connection to other H201Ci controllers. Front door installed
Led digital display that displays gas content in ppm. There are also two gas alarm lights. The display displays the ppm value for each channel one by one, while a column of small light-emitting diodes indicates it
The channel number being displayed. The five-speed rotary switch can choose to continuously display one of the channels, or select the automatic scanning mode.
