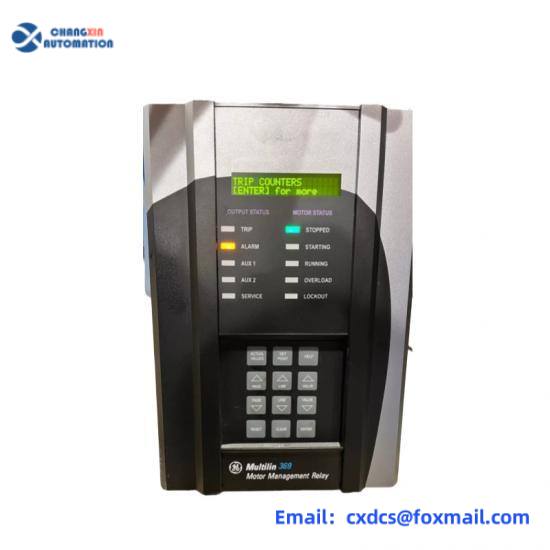

GE 369-HI-R-M-0-0-0: Advanced Motor Management Relay with Built-in Metering
The GE 369-HI-R-M-0-0-0 is a high-performance motor management relay engineered for precision monitoring and protection of medium-sized motors in industrial environments. Featuring integrated metering, waveform capture, and real-time data logging, this device minimizes downtime while delivering actionable insights for predictive maintenance.
Key Features
- Integrated Metering: Real-time monitoring with waveform capture and event reporting for proactive maintenance.
- True RMS Measurement: High-precision 1.04 ms/sample phase current conversion ensures accurate diagnostics.
- Universal Voltage Input: Operates on 110-250 VDC or 100-240 VAC (50/60 Hz) for global compatibility.
- Compact Design: Space-saving 12″ H x 5″ W x 8″ L dimensions with robust Class I insulation for industrial environments.
- Extended Operational Range: 20-100 Hz input frequency tolerance and 4.5 kg ruggedized construction.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | GE 369-HI-R-M-0-0-0 |
| Power Requirements | Nominal: 20 VA / Max: 65 VA |
| Input Voltage Range | 110-250 VDC / 100-240 VAC (50/60 Hz) |
| Dimensions & Weight | 12″ H x 5″ W x 8″ L / 4.5 kg |
| Input Frequency Range | 20-100 Hz |
Application Fields
This relay excels in manufacturing plants, energy facilities, and oil & gas operations where motor reliability is critical. Its advanced diagnostics make it ideal for applications requiring vibration analysis, thermal overload protection, and real-time performance tracking in harsh environments.
