GE 489-P5-HI-A20 generator management relay

Product description
The GE 489-P5-HI-A20 generator management relay is part of the General Electric Multi-wire Series 489 motor management relays. This model 369, along with its upgrades and accessories, will soon be discontinued and is in its last purchase condition. Some upgrades, such as conformal coatings that act as protective layers against corrosion, high temperature, dust and moisture, can still be added after production lines are discontinued.

The multi-wire GE 489-P5-HI-A20 generator management relay is designed to protect and control the motor and its supporting components. 489 achieves this through a variety of built-in features, including:

Metering: The 489 can monitor voltage, watt, frequency and energy equivalents and generate protection based on the generated value data.

Event logging: Immediately after a trip, 489 reports the cause of the trip, as well as the temperature and data values at the time of the trip, enabling users to analyze problems occurring in the system.

Pre-trip alarm: The 489 notifies the user before tripping due to ground failure, mechanical blockage, RTD overtemperature, etc.

Vehicle health reports: Relays can use learned information and a history of system trips to identify when and where maintenance may be needed.

Oscillographic method: Three waveform records are triggered when tripping, and sixteen data cycles are captured. During this process, the phase and ground current as well as the contact input state are captured.

The large amount of data generated by the 489-P5-HI-A20 relay and the protection features employed help reduce troubleshooting time and extend system life, making it the best choice for medium-sized motors.

489-P5-HI-A20 GE Multilin Inputs Specifications

CONTROL POWER
LO range	DC: 20 to 60 V DC AC: 20 to 48 V AC at 50/60 Hz
HI range	DC: 50 to 300 V DC AC: 60 to 265 V AC at 50/60 Hz
Power	nominal: 20 VA; maximum: 65 VA
Holdup	non-failsafe trip: 200 ms; failsafe trip: 100 ms
PHASE CURRENT INPUTS (CT)
CT input (rated)	1 A and 5 A secondary
CT primary	1 to 5000 A
Range: for 50/60 Hz nominal frequency: for variable frequency	0.05 to 20 × CT primary amps 0.1 to 20 × CT primary amps
Full Scale	20 × CT primary amps or 65535 A maximum
Frequency	.20 to 100 Hz
Conversion	True RMS, 1.04 ms/sample
DIGITAL / SWITCH INPUTS
Inputs	6 optically isolated
Input type	Dry Contact (< 800 Ω)
Function	Programmable

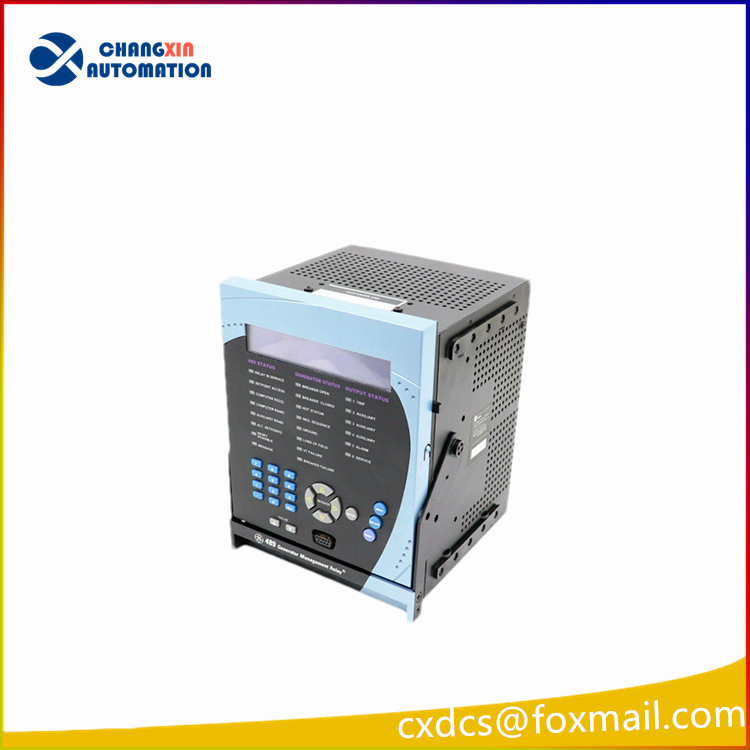

489-P5-HI-A20 Motor Management Relay Front and Rear View

GE 369

369-HI-R-M-0-0-0-E

Additional Features of 489-P5-HI-A20

1. Modbus/TCP protocol Ethernet interface

2. Profibus-DP rear communication port

3. Profibus-DPV1 rear communication port

4. DeviceNet protocol interface D

5. User Definable Baud Rate (1200-19200)

6. Flash Memory for easy firmware updates

7. Front RS232 communication port

8. Rear RS485 communication port

9. Rear fiber optic port

10. RTD type is user-definable R or RTD

11. 4 User Definable Analog Outputs (0 to 1 mA, 0 to 20 mA, 4 to 20 mA)

12. Windows-based PC program for setting up and monitoring
