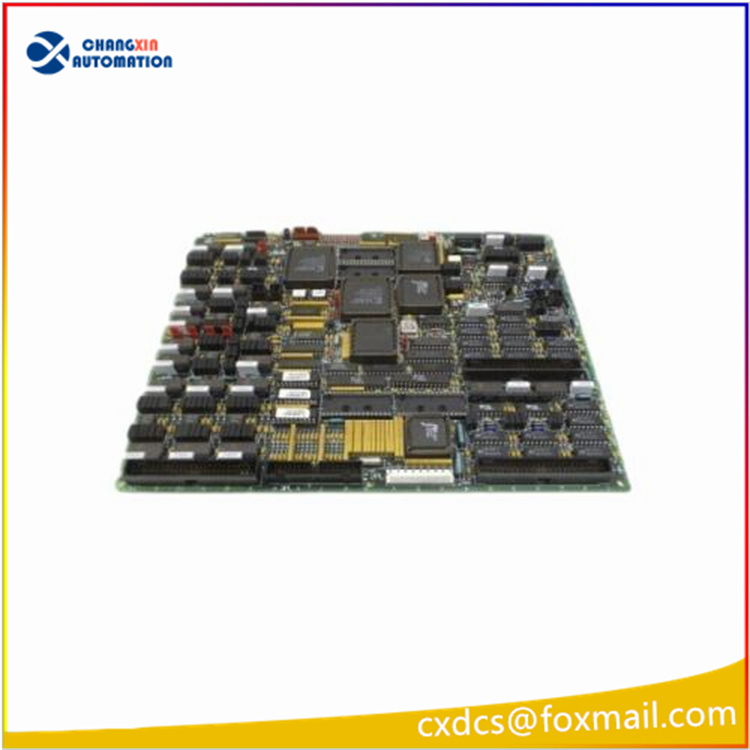

GE DS200TCCBG3ANE Common Extended Analog I/O Board

The GE DS200TCCBG3ANE is an extended analog input/output (I/O) board produced by General Electric (GE), belonging to the Mark V control system series. It is mainly used in the field of industrial automation and supports the input and output of various analog signals. It is suitable for the monitoring and control of equipment such as gas turbines and steam turbines.
Product Features
Signal Type Support:
Analog Input: Supports 32 single-ended or 16 differential voltage inputs, 8 thermocouple inputs, and 4 RTD (Resistance Temperature Detector) inputs.
Analog Output: Provides 16 voltage outputs and 4 current outputs, meeting the control requirements of various devices.
High Precision and Reliability:
Employing low-noise and low-drift design to ensure accurate acquisition and transmission of analog signals.
Modular structure, facilitating configuration and maintenance, and adaptable to the stringent requirements of industrial environments.
Compatibility and Expandability:
Seamlessly integrated with GE Mark V control system, supporting various industrial protocols and communication interfaces.
Highly scalable, allowing flexible configuration of input/output channel quantities according to actual needs.
Global Support and Services:
Relying on GE’s global support network, providing technical consultation, maintenance, and spare parts supply services.

Application scenarios:
Energy industry:
Gas turbine control: Monitoring parameters such as speed, temperature, and pressure to ensure safe operation of the equipment.
Steam turbine protection: Trigger protection actions in cases of overspeed or abnormal conditions to prevent equipment damage.
Oil and gas:
Process control: Precisely controlling key parameters such as temperature and flow rate in processes like oil refining and chemical production.
Factory monitoring: Real-time collection of production data to optimize operational efficiency.
Other industrial fields:
Applicable to scenarios requiring high-precision analog signal processing, such as metallurgy, papermaking, and pharmaceuticals.
