Product Introduction

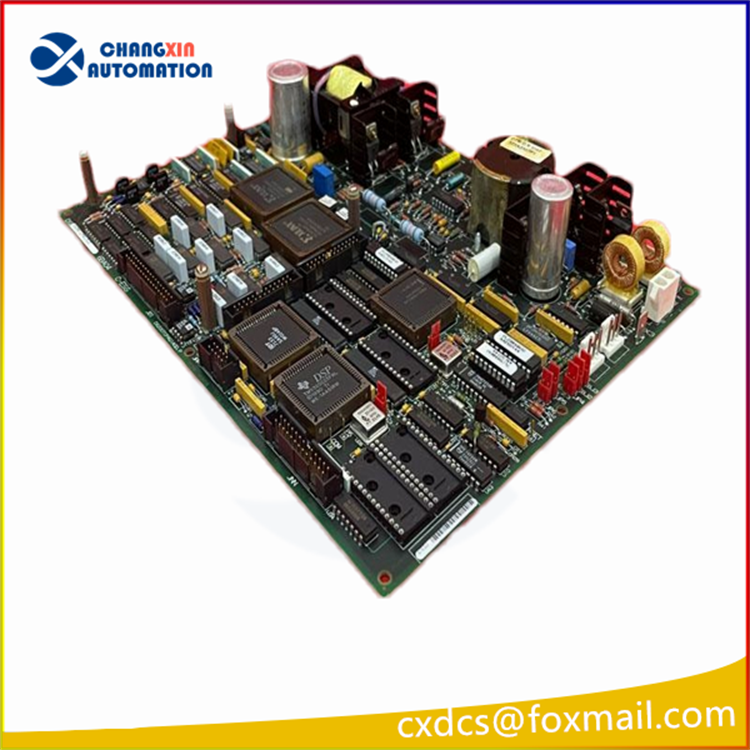

GE DS200TCPSG1A Mark V series input power board is used in the automatic drive component management and control system of wind turbines. It can also be used for the control and management of steam turbines to ensure the normal operation of steam turbines and realize the monitoring and control of various parameters of steam turbines. It plays an important role in the automatic control system of gas turbines, monitors and adjusts the operating status of gas turbines to improve the performance and efficiency of gas turbines.
Technical Specifications
| Manufacture | General Electric(GE) |
| Model | DS200TCPSG1A |
| Part Number | DS200TCPSG1A |
| Description |
Mark POWER SUPPLY BOARD
|
| Origin | USA |
| Dimension | 30*26*8cm |
| Weight | 0.55kg |
Product Details
GE DS200TCPSG1A Working Principle and Function
Power conversion: Converts the 125V DC power from the PD (power distribution) core into different voltages required by various components in the system, such as + 5V DC, +24V DC, ±15V DC and ±24V DC, etc.
Circuit protection: When the current exceeds the safe use range in the circuit, the fuse element will melt, thereby preventing the current from passing through the circuit and preventing the circuit board from being damaged.
Signal transmission: The converted power supply voltage is distributed to other related circuit boards in a daisy chain form through connectors such as 2PL, J1, JC, JP1, JP2, etc., to provide power for servo valve current output, RTD power supply voltage, MA output power supply voltage, microprocessor power supply voltage, etc.
Power conversion: Converts the 125V DC power from the PD (power distribution) core into different voltages required by various components in the system, such as + 5V DC, +24V DC, ±15V DC and ±24V DC, etc.
Circuit protection: When the current exceeds the safe use range in the circuit, the fuse element will melt, thereby preventing the current from passing through the circuit and preventing the circuit board from being damaged.
Signal transmission: The converted power supply voltage is distributed to other related circuit boards in a daisy chain form through connectors such as 2PL, J1, JC, JP1, JP2, etc., to provide power for servo valve current output, RTD power supply voltage, MA output power supply voltage, microprocessor power supply voltage, etc.
Some common faults and solutions of DS200TCPSG1A:
1. Power conversion fault
Fault phenomenon: The output voltage is unstable, or the correct voltage value cannot be output, resulting in the device connected to the board failing to work properly. For example, the +5V DC output voltage may be low, causing the microprocessor to work abnormally.
Cause analysis: Damage to components in the power conversion circuit, such as transformer, rectifier diode, filter capacitor, etc.; abnormal input 125V DC power supply.
Solution: Use a multimeter or other tool to check the components in the power conversion circuit. If damaged components are found, replace them with components of the same specifications. Check the stability of the input power supply to ensure the input voltage is within the normal range. If there is a problem with the input power supply, repair or replace the relevant components.
1. Power conversion fault
Fault phenomenon: The output voltage is unstable, or the correct voltage value cannot be output, resulting in the device connected to the board failing to work properly. For example, the +5V DC output voltage may be low, causing the microprocessor to work abnormally.
Cause analysis: Damage to components in the power conversion circuit, such as transformer, rectifier diode, filter capacitor, etc.; abnormal input 125V DC power supply.
Solution: Use a multimeter or other tool to check the components in the power conversion circuit. If damaged components are found, replace them with components of the same specifications. Check the stability of the input power supply to ensure the input voltage is within the normal range. If there is a problem with the input power supply, repair or replace the relevant components.
2. Fuse blown failure
Fault phenomenon: The fuse on the circuit board blows, causing the circuit to be interrupted and the related equipment to lose its power supply.
Cause analysis: Overload current occurs in the circuit, which may be caused by a short circuit in the connected device, a sudden increase in the power supply voltage, or a circuit failure in the circuit board itself; the quality of the fuse itself.
Solution: Find the cause of the overload in the circuit, eliminate the short circuit fault or repair the voltage abnormality; replace the fuse with the same specification to ensure that it can withstand the normal working current.
Fault phenomenon: The fuse on the circuit board blows, causing the circuit to be interrupted and the related equipment to lose its power supply.
Cause analysis: Overload current occurs in the circuit, which may be caused by a short circuit in the connected device, a sudden increase in the power supply voltage, or a circuit failure in the circuit board itself; the quality of the fuse itself.
Solution: Find the cause of the overload in the circuit, eliminate the short circuit fault or repair the voltage abnormality; replace the fuse with the same specification to ensure that it can withstand the normal working current.
3. Signal transmission failure
Failure phenomenon: The power signal distributed to other circuit boards through the connector is lost or unstable, causing other circuit boards to fail to work properly or work abnormally. For example, the servo valve may experience a decrease in control accuracy due to unstable power signals.
Cause analysis: Poor connector contact may be caused by looseness, oxidation, or damage; the transmission line is open or short-circuited; the signal transmission circuit on the circuit board is faulty.
Solution: Check the connector, clean the oxide layer, ensure a firm connection, and replace the connector if damaged; check the transmission line, repair the open circuit or eliminate the short circuit fault; use professional tools to detect the signal transmission circuit on the circuit board, and repair or replace damaged components.
Failure phenomenon: The power signal distributed to other circuit boards through the connector is lost or unstable, causing other circuit boards to fail to work properly or work abnormally. For example, the servo valve may experience a decrease in control accuracy due to unstable power signals.
Cause analysis: Poor connector contact may be caused by looseness, oxidation, or damage; the transmission line is open or short-circuited; the signal transmission circuit on the circuit board is faulty.
Solution: Check the connector, clean the oxide layer, ensure a firm connection, and replace the connector if damaged; check the transmission line, repair the open circuit or eliminate the short circuit fault; use professional tools to detect the signal transmission circuit on the circuit board, and repair or replace damaged components.
