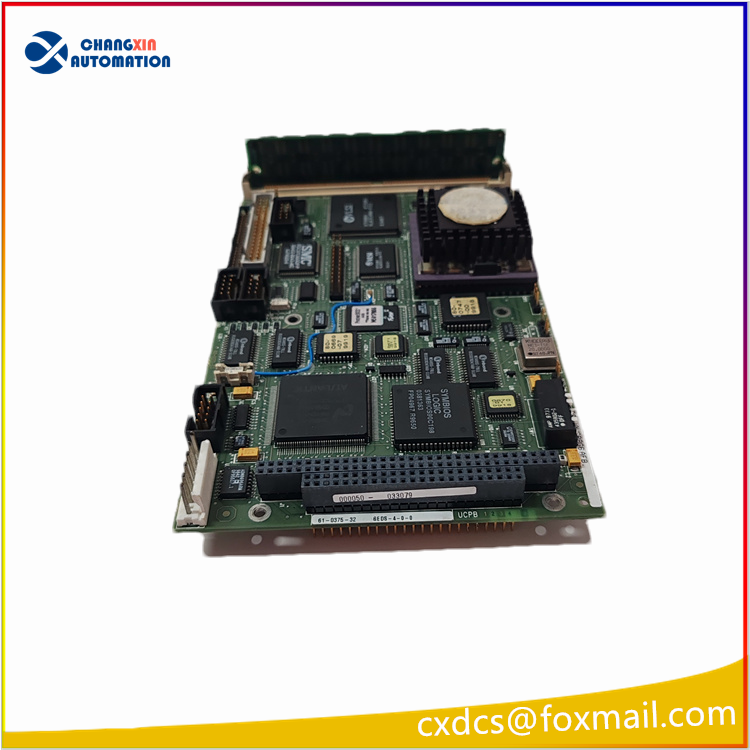

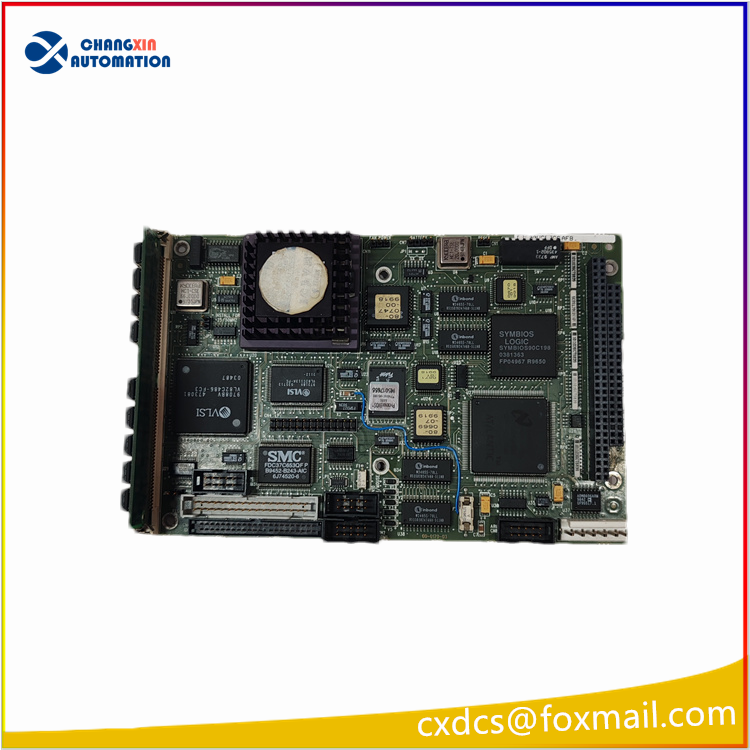

The GE DS200UCPBG6AFB is a high-performance I/O engine CPU board designed and manufactured by GE. It belongs to the Mark V LM series and is mainly used in GE Speedtronic gas turbine control systems.
Core Features
Processor and Memory
Processor: Utilizes 80486DX processor, providing powerful computing capabilities for real-time control.
Memory: Equipped with DIMM slots, supporting memory expansion to meet various application requirements.
Storage: Includes PROM module for storing firmware, ensuring stable system operation.
Communication Interfaces
Serial Communication: Provides 2 RS-232 serial ports, supporting local device connection.
Network Communication: Supports ARCNET, compatible with traditional networks, and can be expanded with Ethernet interfaces, facilitating integration with SCADA/DCS systems.
Diagnosis and Indication
Status Monitoring: Equipped with multiple LED indicators, displaying real-time operating status and fault information.
Self-Diagnosis Function: Built-in self-diagnosis tools, simplifying fault troubleshooting and system maintenance.
Physical Specifications
Dimensions: 309 mm × 211 mm × 41 mm.
Weight: 2 kilograms.
Design: Utilizes plug-in module design, facilitating installation, maintenance, and replacement. Environmental adaptability
Operating temperature: -40°C to +70°C, suitable for harsh industrial environments.
Storage temperature: -40°C to +85°C.
Humidity: 5% to 95%, no condensation.
Application fields
The GE DS200UCPBG6AFB is mainly applied in the following fields:
Electric power industry: Gas turbine control, power plant automation.
Oil and gas: Pipeline monitoring, compressor control.
Industrial automation: Complex systems requiring high reliability and real-time control.
Analysis of advantages
High performance: The 80486DX processor provides fast data processing capabilities, meeting the requirements of real-time control.
High reliability: Industrial-grade design, capable of adapting to harsh environments such as wide temperature and high humidity, ensuring long-term stable operation.
Easy maintenance: Plug-in module design and self-diagnosis functions reduce maintenance costs and shorten downtime.
Extensive scalability: Supports memory expansion and multiple communication protocols, facilitating system upgrades and integration.
Typical application scenarios
Gas turbine control: As the core component of the Mark V control system, it realizes precise control of the gas turbine.
Data acquisition and monitoring (SCADA): Communicates with the upper computer through the Ethernet interface to achieve remote monitoring.
Distributed control system (DCS): Works in collaboration with other controllers to build an efficient industrial automation system.
