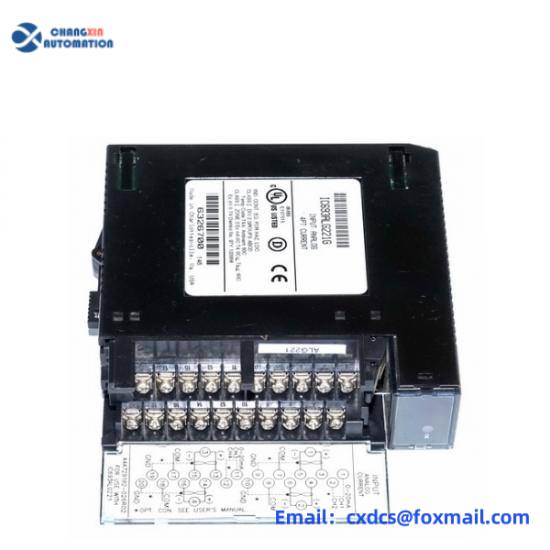

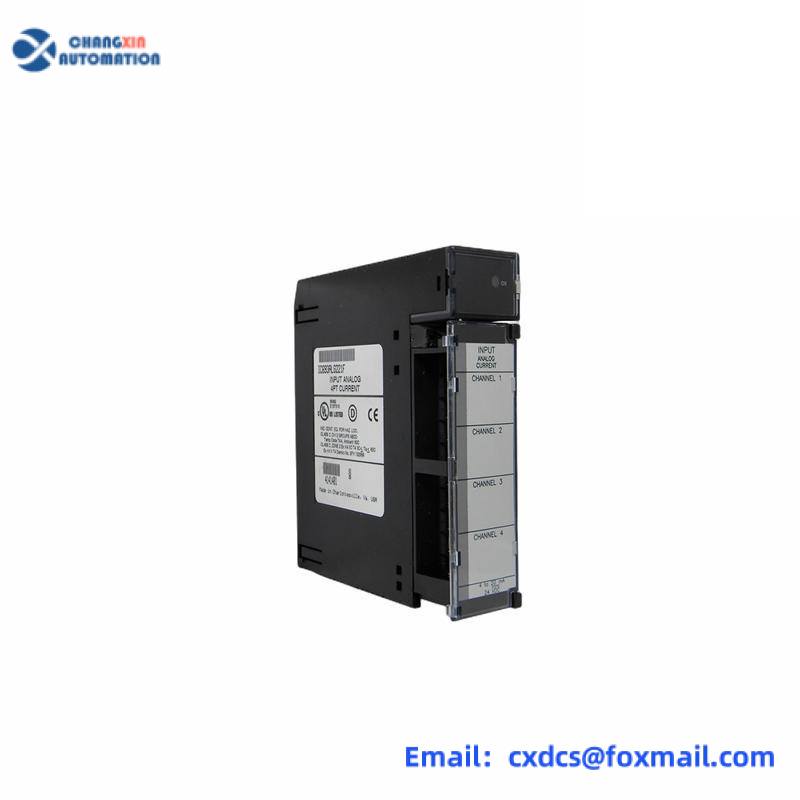

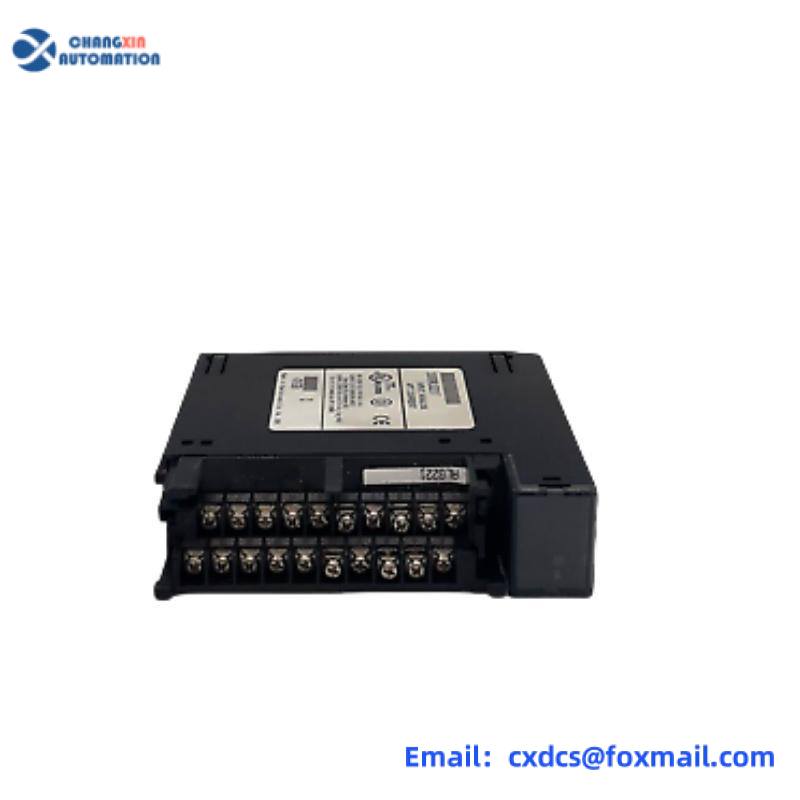

GE IC693ALG221 Analog Current Input Module – Precision Process Control Interface
Engineered for industrial automation excellence, the GE IC693ALG221 analog current input module delivers 16-bit resolution measurement across four independent channels. This high-precision interface ensures accurate signal acquisition for process control systems requiring reliable 4-20mA current loop integration in manufacturing, energy, and chemical processing applications.
Key Performance Features
- 4-Channel Isolated Inputs – Galvanic isolation between channels and backplane eliminates ground loop interference
- 16-Bit Resolution – High-precision ADC ensures ±0.1% measurement accuracy for critical process parameters
- Universal Signal Compatibility – Supports standard 4-20mA and 0-20mA current loop configurations
- Industrial-Grade Design – Rugged construction withstands 5G vibration and 15kV ESD exposure
- Efficient Power Management – Low power consumption maintains system stability during peak loads
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | General Electric IC693ALG221 |
| Power Requirements | 25 mA @ 5 VDC, 100 mA @ 24 VDC |
| Operating Temperature | -40°C to +75°C |
| Signal Input Range | 4-20mA / 0-20mA (selectable) |
| Isolation Voltage | 2500 VAC channel-to-backplane |
Target Applications
The IC693ALG221 excels in demanding environments including:
- Continuous process monitoring in chemical/petrochemical plants
- Flow rate and pressure control in pipeline systems
- Motor current measurement in industrial automation cells
- Temperature regulation in HVAC and energy systems
- Level and position feedback in material handling equipment
Our Product Portfolio
As authorized distributor for leading industrial brands, we offer comprehensive solutions including:
- ABB: DSQC series robot spares, PM866, 5SHY3545L0010
- Triconex: 3008, 3720, 4351B modules
- Bently Nevada: 3500/44, 3300/15 vibration monitoring
- Woodward: 8521-0312, 9907-162 controllers
- Foxboro: FBM204, FCP270, P0904HA modules
- GE Fanuc: VMIVME-7807, IC698CPE010, IS200SRTDH2A
GE Automation – Engineered Reliability for Industrial Systems
