GE IC693CPU374 Control Processor, High Performance Industrial Automation

GE IC693CPU374 is a high-performance single-slot CPU module in the GE Fanuc 90-30 series. It is suitable for industrial automation and control scenarios, featuring powerful processing capabilities, abundant communication interfaces, high reliability, and modular design. Here is a detailed introduction to its core features:
I. Core Performance Processor
Equipped with a 586-level 133MHz chip (some models use AMD SC520 or embedded 586), optimized for high-speed Boolean and non-Boolean operations.
The typical scan rate of Boolean contacts is 0.15ms/1K logic, supports real-time multitasking scheduling, and the response time for critical tasks is <1ms, ensuring rapid response to control instructions.
Memory configuration
Total user memory 240KB, supports register memory (%R) from 128 to 32,640 bytes, independent configuration of analog input (%AI) and output (%AO), meeting the requirements of complex control logic.
Program memory can be flexibly configured, supports EZ Store device program download, facilitating quick deployment and update.

Communication capabilities

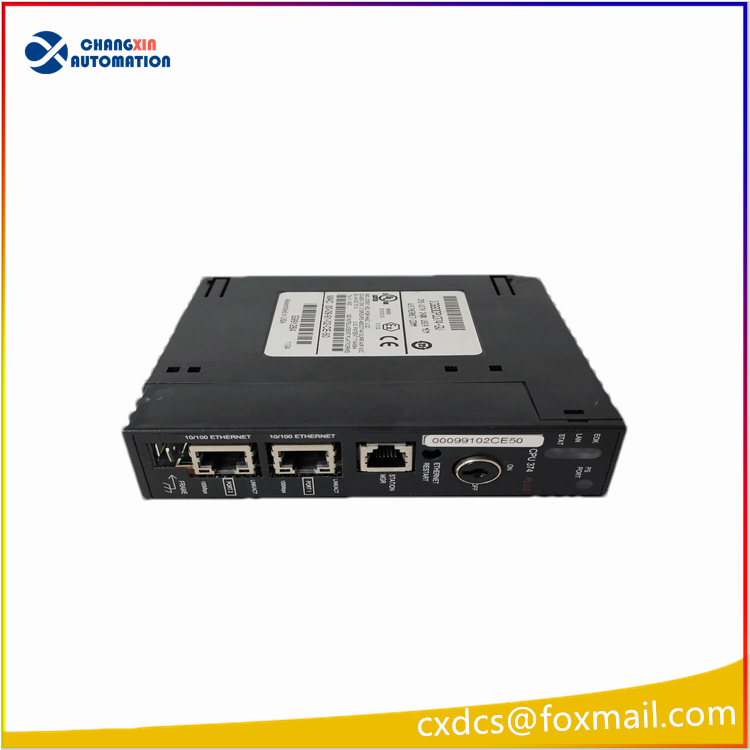

Ethernet interface
Built-in dual 10/100Mbps adaptive Ethernet ports, supporting automatic sensing of switch function, compatible with Modbus TCP/IP, SRTP, Ethernet Global Data (EGD) and other protocols.
Supports client/server mode, can be seamlessly communicated with programming workstations, HMI, SCADA systems, suitable for distributed control system (DCS) integration.
Serial interface
Provides RS-232/RS-485 interfaces (some models require expansion through power module), supports Profibus-DP master station (optional), realizes seamless integration with third-party devices.
Supports multi-protocol communication, meets the requirements of complex network communication scenarios.

Expansion and Compatibility
I/O Expansion Capability
Supports up to 16 local I/O modules, with a total point count that can be expanded to 8192 points (2048 fixed discrete input/output points, 1280 bits of discrete global storage).
Supports 32 distributed I/O sites to meet large-scale control requirements.
Supports analog module interfaces, with register memory (%R) and analog channels (%AI/%AQ) that can be independently configured, suitable for precise control of parameters such as temperature and pressure. Modular design
Single-slot width design, which can be installed in the 90-30 PLC rack, supports integration with various industrial automation devices (such as sensors, servo drives, human-machine interfaces, etc.).
Compatible with the entire series of IC693 I/O modules, it can be expanded with coprocessors, communication modules, etc., to meet the requirements of different scale systems.
