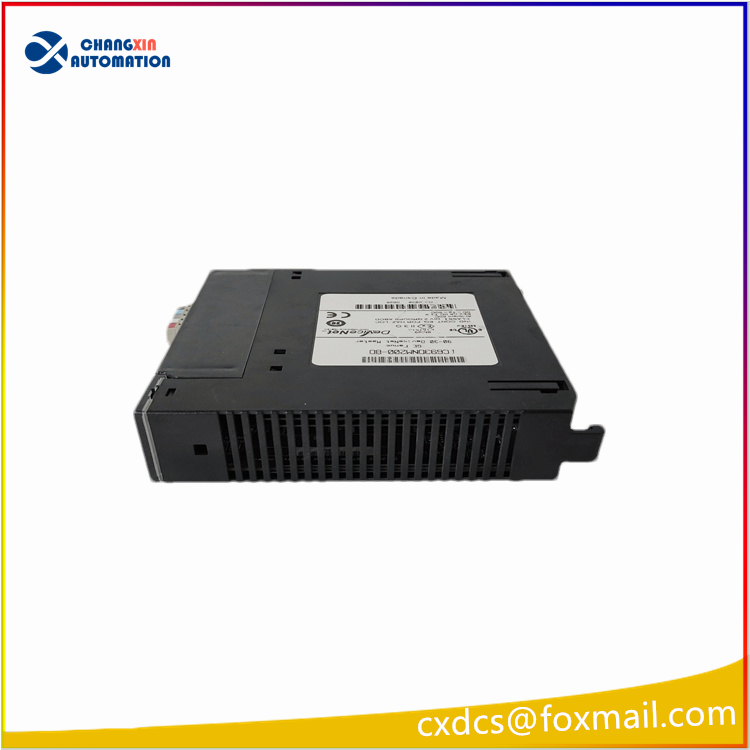

The GE IC693DNM200 central processing unit (CPU) module is a high-performance single-slot CPU module from the GE Fanuc 90-70 series. It is specifically designed for real-time control of medium and large-scale automation equipment and production lines. Here is a detailed introduction to its core features:
I. Core Performance
Processor and Processing Speed
Equipped with an 80486DX4 processor, with a main frequency of 96 MHz. The execution speed of Boolean instructions is only 0.4 microseconds per instruction, ensuring rapid response for complex logical operations.
Supports 32-bit floating-point operations, capable of efficiently processing analog data such as temperature and pressure, meeting the process control requirements of industries like chemical and metallurgy.
Memory Configuration
512KB battery-backed CMOS RAM: Stores user programs and critical data, with no data loss even in the event of power failure.
256KB non-volatile flash memory: Used for storing firmware and user programs, supports online firmware upgrade without the need to replace chips.
Communication and expansion capabilities
Support for multiple protocols
Equipped with 1 RJ11 serial port and 2 RS-485 interfaces, compatible with SNP, SNPX, RTU and other protocols, capable of flexibly connecting various devices.
Support for programming via Ethernet TCP/IP or SNP port, compatible with MS-DOS and Windows 95/NT and other operating systems.
I/O expansion capabilities
Maximum support for 2K discrete I/O and 8K analog I/O, suitable for different scale control scenarios.
Compatible with the entire series of IC697 I/O modules, expandable with coprocessors, communication modules, etc., to meet the requirements of complex systems.
Reliability and stability
Industrial-grade design
Wide temperature operating range (0℃~60℃), suitable for harsh factory environments.
Strong anti-interference capability, ensuring stable operation in scenarios with severe electromagnetic interference.
Safety and maintenance
Key switch + software password dual protection: prevents programs and configurations from being mistakenly modified.
7 LED status indicators: display real-time operation, programming, serial port activity and fault status, facilitating quick diagnosis.
Built-in battery backup real-time clock (RTC): daily error ±3.5 seconds, precise time recording.
Usability and flexibility
Online programming and debugging
Support for online programming and program modification, allowing for debugging and updates without downtime, thereby enhancing production efficiency.
Software configuration (without DIP switches or jumpers): Parameter settings can be completed through the software, with simple operation. Modular design
Single-slot compact design: Saves rack space, facilitating installation and maintenance.
Compatible with various optional modules: such as Ethernet interface modules, programmable coprocessors, etc., enabling flexible expansion of functions.
