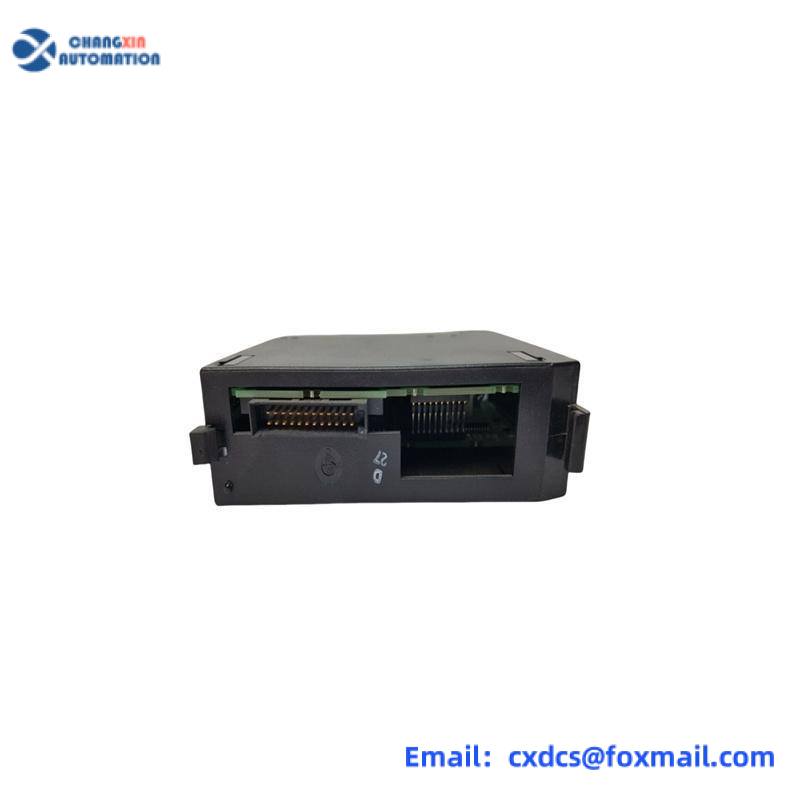

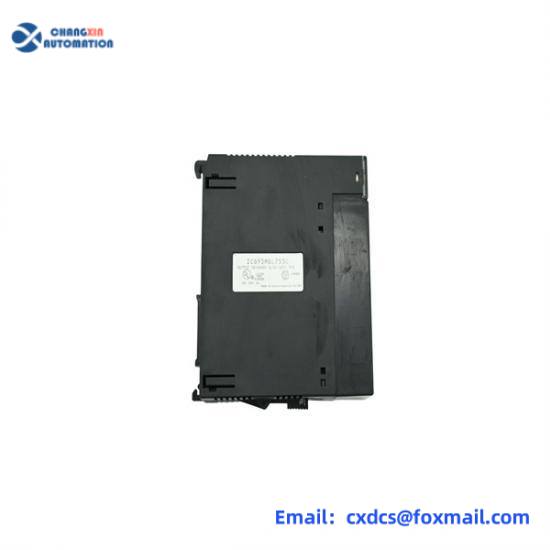

GE IC693MDL753 Digital Input Module – 16-Channel Sinking Logic for Industrial Automation
The GE IC693MDL753 Digital Input Module delivers precision signal acquisition for demanding industrial environments. With 16 sinking-type input channels and universal 10-24 VDC compatibility, this module ensures reliable operation in manufacturing automation, process control systems, and building management applications. Engineered for durability in extreme temperatures (-25°C to +60°C), it provides robust performance in harsh industrial conditions.
Key Features
- Industrial-Grade Design – Constructed with high-impact polymer housing for vibration resistance and long-term reliability
- Flexible Configuration – Dual-group isolation (16 channels in 2 groups) enables customized wiring layouts
- Wide Voltage Range – Accepts 10-24 VDC inputs with automatic voltage detection
- Compact Footprint – Space-saving dimensions (120×100×50mm) for dense control cabinet installations
- Extended Temperature Tolerance – Operational from -25°C to +60°C with storage capability down to -40°C
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | GE IC693MDL753 |
| Power Requirements | 5 VDC @ 500 mA |
| Input Range | 10-24 VDC |
| Channel Configuration | 16 sinking inputs (2 isolated groups) |
| Operating Temp | -25°C to +60°C |
| Communication | Backplane interface via IC693CPU311 |
Application Fields
This module excels in diverse industrial applications including:
- Manufacturing production lines with proximity sensors and limit switches
- Building automation systems for HVAC and security integration
- Process control environments with pressure/temperature transducers
- Material handling systems requiring high-speed discrete signal monitoring
- Legacy system upgrades maintaining GE Series 90-30 compatibility
