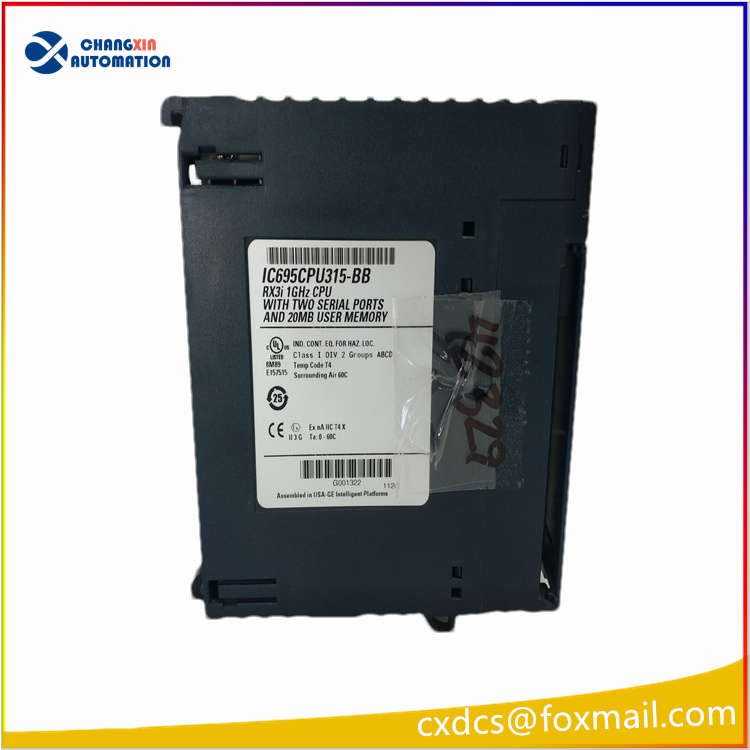

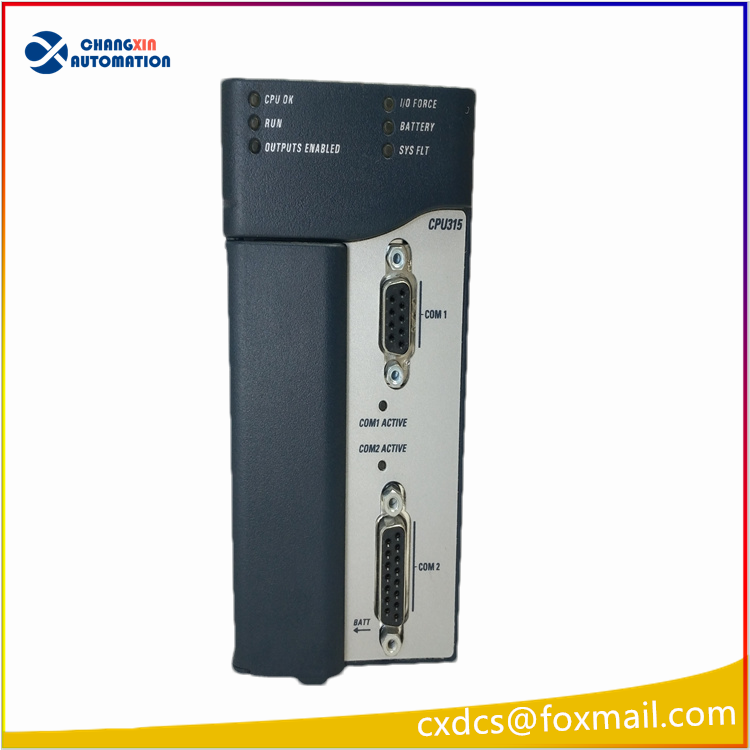

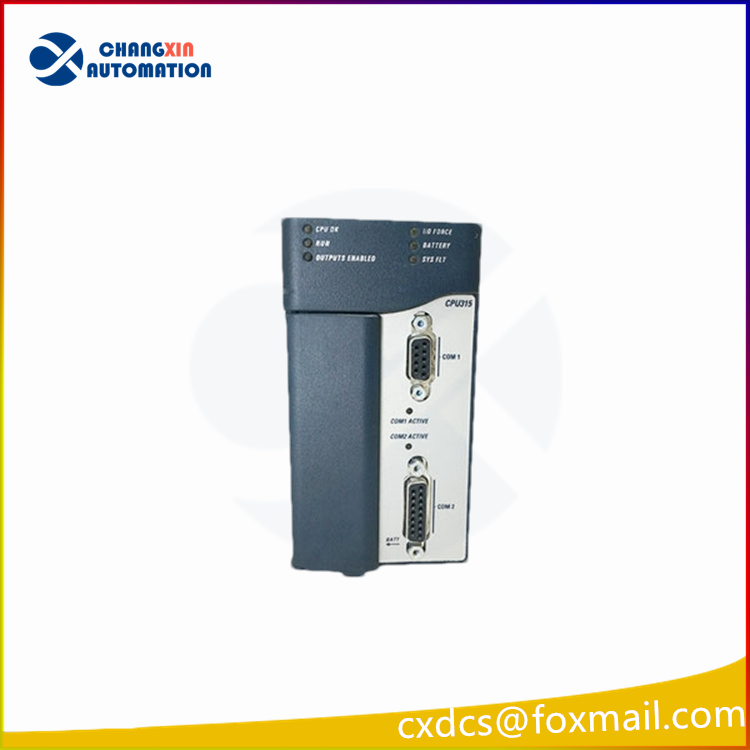

The GE IC695 CPU315 controller module is a high-performance central processing unit (CPU) in the GE Fanuc PACSystems RX3i series, designed specifically for industrial automation and control systems. The following is a detailed introduction to this module:
I. Main Features
High-performance processor: Utilizes Intel Celeron-M microprocessor with a processing speed of 1 GHz, providing powerful computing and data processing capabilities, capable of quickly executing various control algorithms and data processing tasks.
Large-capacity memory: Equipped with 20 MB of user memory (RAM) and 20 MB of flash memory, supporting up to 512 program blocks, each with a maximum capacity of 128 KB, meeting the requirements of complex industrial processes.
High-speed I/O operations: Capable of performing up to 32K I/O operations per second, ensuring the accuracy of real-time control and monitoring of industrial processes.
Multiple communication interfaces: Provides Ethernet interface, RS-232 and RS-485 serial interfaces, facilitating communication and data exchange with other devices and systems.
Power management and protection: Features power management functionality, capable of monitoring power status and load, providing power failure detection and alarms. Additionally, integrates hardware protection mechanisms such as overcurrent protection, overheat protection, and short-circuit protection to ensure safe system operation.
Programming flexibility: Supports multiple programming languages, including C language, ladder logic, structured text, etc., allowing users to choose the suitable programming language for program development according to actual needs.
Hot-swappable support: Supports hot-swappable function, enabling module insertion and removal during system operation without requiring system shutdown or restart, facilitating maintenance and upgrade.
Technical Specifications
Model: IC695CPU315
Brand: GE Fanuc
Series: PACSystems RX3i
Processor Type: Intel Celeron-M Processor
Processing Speed: 1 GHz
User Memory (RAM): 20 MB
Flash Memory: 20 MB
Maximum Number of Program Blocks Supported: Up to 512
Maximum Capacity of Each Program Block: 128 KB
I/O Operation Speed: Up to 32K per second
Communication Interfaces: Ethernet interface, RS-232 and RS-485 serial interfaces
Power Requirements: +3.3 VDC ≈ 1.0 A; +5 VDC ≈ 1.2-1.3 A
Operating Temperature Range: 0°C to 60°C
Application scenario
The GE IC695 CPU315 controller module is widely used in various industrial automation fields, including but not limited to:
Industrial Automation: Used to control and monitor the equipment on the production line to ensure the stability and efficiency of the production process.
Process Control: Applicable in process control fields such as chemical plants and oil refineries, used to regulate various process parameters.
Manufacturing: Used to control manufacturing equipment such as machine tools and production robots.
Energy Sector: In power systems and energy production, used to control power plants and power distribution systems.
Transportation System: Used for traffic signal control, intelligent traffic management, and other applications.
