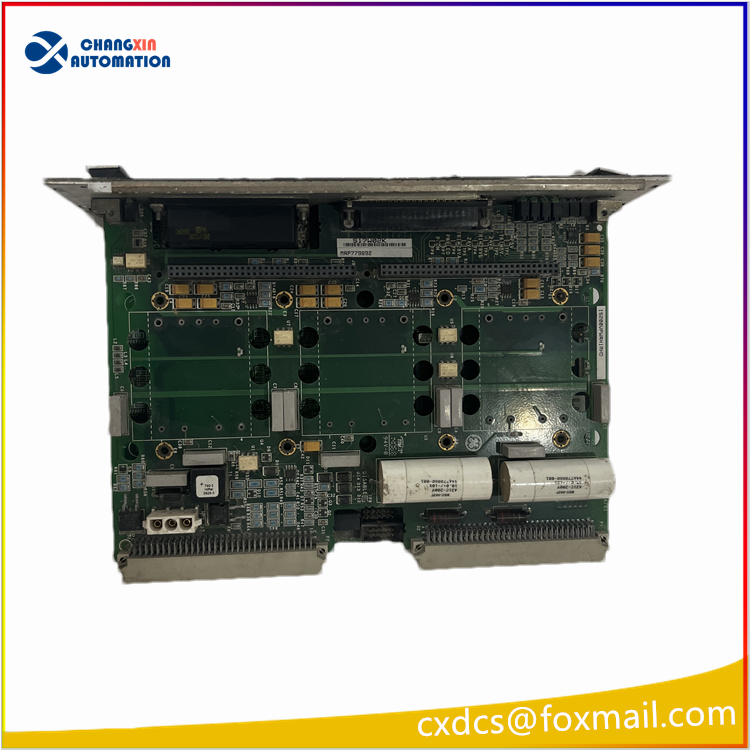

GE IS200JPDEG1A Controller module

Brand/Manufacturer: General Electric

Order Number:IS200JPDEG1A

Country of Origin: USA

Condition: Original Brand

Lead Time: Available in stock

Payment Term: 100% TT In Advance

Tag：

IS200JPDEG1A Technical Specifications

Part Number IS200JPDEG1A
Manufacturer GE Energy
Series Mark VIe
Functional Acronym JPDE
Functional Description DC Battery Distribution Board
PCB Coating Normal Coating
Functional Revision 1 A

Frequently Asked Questions about IS200JPDEG1A

How does this IS200JPDEG1A board’s normal coating style compare to the alternative conformal style of PCB coating?

This IS200JPDEG1A board’s normal style of PCB coating is much thicker than the competitor conformal coating style, although it does not protect every surface of every hardware component as completely as the chemically-applied conformal coating would.

Are the IS200JPDEG1A board’s installation holes factory-insulated?

It is unknown as to whether the vestigial factory-drilled holes in the assembly of the IS200JPDEG1A DC Battery Distribution Board have been insulated, as they are shirked for the sheet metal bracket used for proper installation of this PCB.

How many inputs does the IS200JPDEG1A have for power supplies?

The IS200JPDEG1A has inputs for two power supplies.
Hardware Tips and Specifications

The IS200JPDEG1A board’s functional description as a DC Battery Power Distribution Board explains its functionality well; the IS200JPDEG1A PCB exists with the purpose of distributing DC power from a battery or power supply to various system loads, including most Mark VIe Series terminal board products.

This IS200JPDEG1A PCB makes use of two 50-pin diagnostic pin connectors which jut out at the top and bottom of the base circuit board. These connectors, labeled P1 and P2 respectively, each offer the IS200JPDEG1A board with feedback signal transmission and reception options, specifically geared towards the related PPDA Input/Output Pack.
