GE IS200WETAH1AEC is an industrial interface module designed and manufactured by GE (General Electric). Here is a detailed introduction about this module:
I. Core Functions
Signal Transmission and Processing: As a part of the control system, it is used to achieve signal transmission, processing, and conversion, and is seamlessly connected with the controller or other devices.
High Precision Signal Processing: It supports various types of input/output signals and can convert physical signals into digital signals or perform reverse operations, ensuring the accuracy and real-time nature of the data.
Self-Diagnosis and Alarm: It supports self-diagnosis functionality, which can monitor the operating status and health condition of the module in real time and provide alarm functions to help detect and eliminate faults promptly.
Technical Features
Modular Design: Offers flexible expansion capabilities, adapts to different project requirements, and is convenient for installation, maintenance, and upgrading.
Hot Swap Function: Supports hot swapping, facilitating the replacement and upgrade of modules without interrupting the system operation.
Durable Materials: Manufactured with durable materials, capable of operating stably in high-temperature, humid, or high-vibration environments.
Industrial Certification: Has passed strict industrial certifications, ensuring long-term reliable operation of the modules.
Compatibility: Has good compatibility with GE’s Mark VI, Mark VIe and other distributed control systems (DCS), supports standard communication protocols, and is convenient for integration with other control systems or devices.
Summary of Advantages
High reliability: Industrial-grade design ensures long-term trouble-free operation and adaptability to harsh industrial environments.
Easy maintenance: Hot-swappable design and self-diagnosis functions simplify daily maintenance and reduce maintenance costs.
Flexible expansion: Modular structure supports future system upgrades or functional expansions, meeting changing business needs.
High precision: Excellent signal processing performance ensures data accuracy and provides a reliable basis for decision-making.
Application scenario
Power Generation Industry: Used for signal monitoring and data processing of power generation equipment such as gas turbines and steam turbines to ensure stable operation of the equipment.
Oil and Gas Processing: In oil and gas processing facilities, used to monitor parameters such as pressure, flow rate, and temperature to ensure production safety.
Manufacturing: Used in manufacturing for process control and equipment monitoring to optimize production efficiency.
Water Treatment and Environmental Protection: Manage data collection and signal transmission of water treatment and environmental protection equipment to achieve intelligent management.
Smart Grid: Integrated into the smart grid system, used for energy management and equipment control to improve grid operation efficiency.
Summary of Advantages
High reliability: Industrial-grade design ensures long-term trouble-free operation and adaptability to harsh industrial environments.
Easy maintenance: Hot-swappable design and self-diagnosis functions simplify daily maintenance and reduce maintenance costs.
Flexible expansion: Modular structure supports future system upgrades or functional expansions, meeting changing business needs.
High precision: Excellent signal processing performance ensures data accuracy and provides a reliable basis for decision-making.
About the IS200WETAH1A
The IS200WETAH1A is a circuit board from GE designed as part of their Mark VIe system. This circuit board is most often used in wind energy applications. The Mark VIe can be used for managing turbine systems in a number of applications, including nuclear facilities, gas&oil, hydro, thermal, and wind. It includes programmable software tools for maintenance capabilities and limit checking diagnostics built into both the hardware and the software.

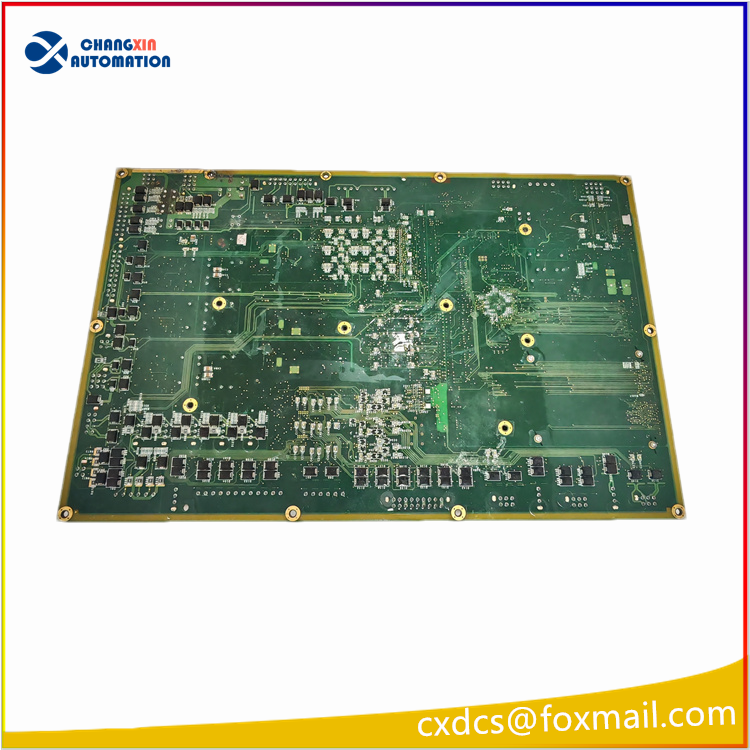

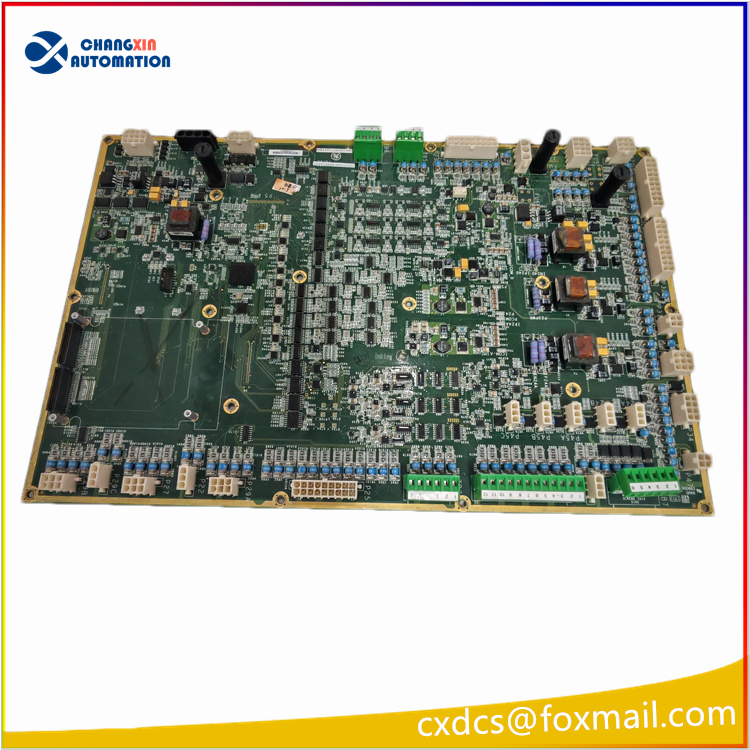

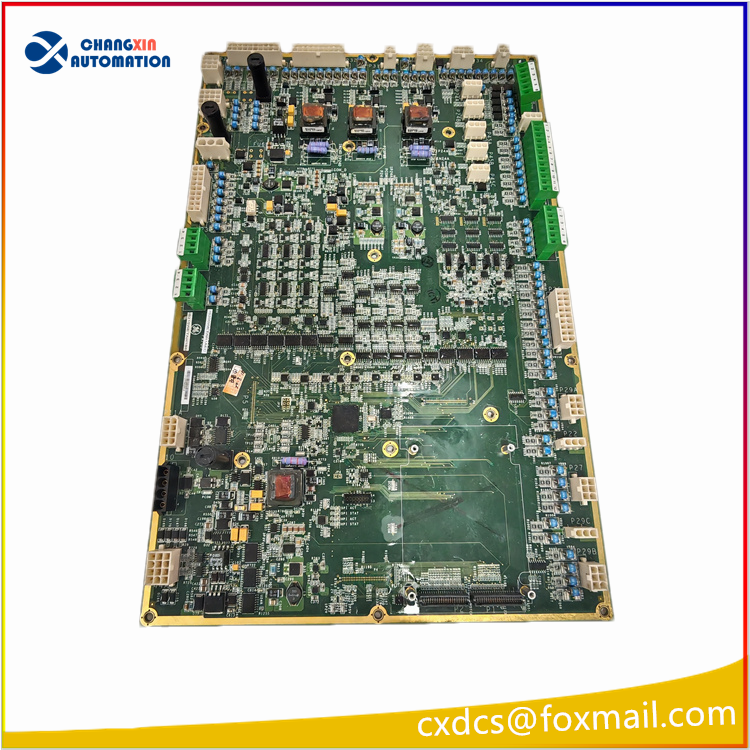

The IS200WETAH1A has hundreds of components mounted to its surface. There is an exposed copper strip with multiple factory drilled holes along all four board edges. The PCB has one auxiliary board. This is labeled IS210BPPBH2C. AX Control has a separate listing for that board that will have a description of its components.
The IS200WETAH1A has seven fuses on its surface. The board has four transformers, twenty-five TP test points, and six terminal strips. The board includes coil inductors, capacitors, resistors, relay components, integrated circuits, diodes, and jumper switches. The board has over a hundred voltage regulators. These components automatically adjust resistance via a feedback loop (accounting for changes in load and input) while keeping the output voltage constant. Voltage regulators are placed on the board in long lines, parallel to three of the four edges.
The IS200WETAH1A has over forty-five plugs and connectors, including a vertical male pin connector and plug connectors ranging from two-position to twenty-position. The P4 and P5 connectors are made from conductive dots or traces. Some of these carry the same reference designator (for example, P29A/P29B/P29C.) Please refer to GE publications for installation guidelines and maintenance schedules. Please follow all safety and handling guidelines.
