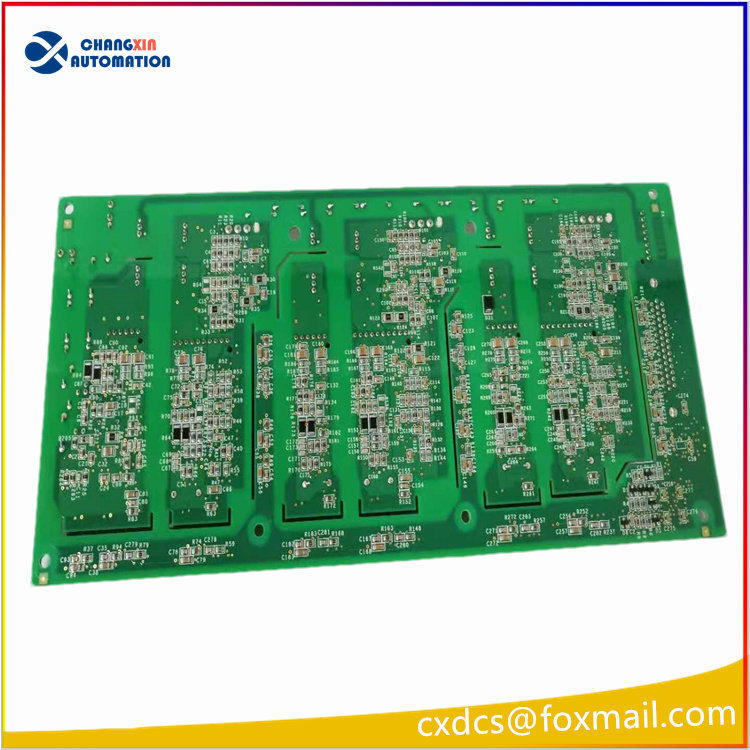

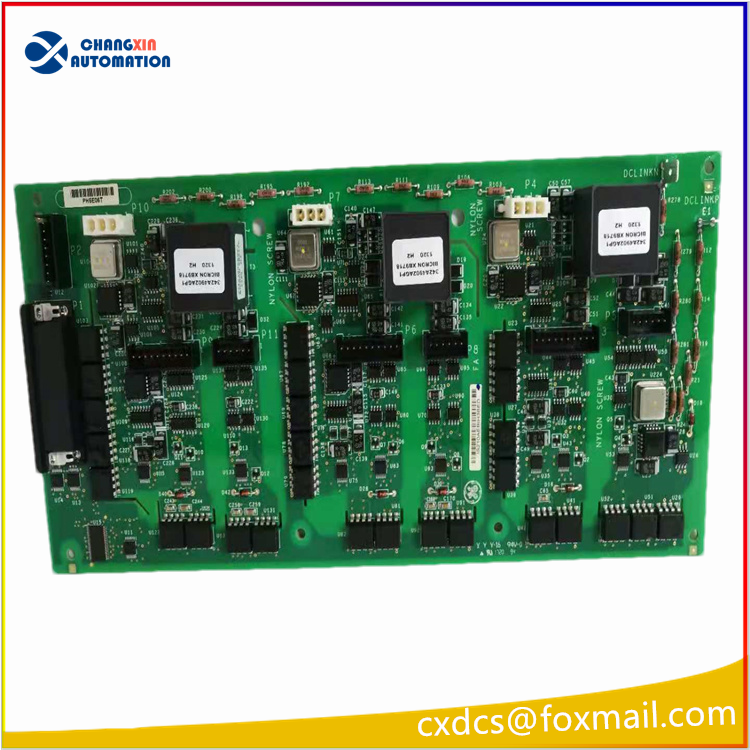

GE IS210AEBIH3BED is a VME turbine card under the Speedtronic Mark VI series of General Electric. It is also known as the main turbine protection board and is mainly used in gas turbine control systems to perform a number of critical monitoring and protection tasks.
Functional Features
Monitoring Function:
Monitor the shaft current and voltage current.
Monitor the Geiger-Mueller flame detector used in gas turbine applications to help assess whether the optical detection of the system is hindered by carbon deposits or other impurities.
Monitor the four-speed input from passive magnetic sensors to ensure smooth operation of critical processes.
Protection Function:
In turbines without mechanical overspeed bolts, it is capable of sending trip commands to ensure safety.
Hardware Design:
Adopt a dual-wide panel design, with only a few components on the panel, including three LED indicators and cable connectors, facilitating installation and maintenance.
There are thirteen transistors, inductors, resistors, capacitors and other components on the board, and an auxiliary board with an additional backplate is connected to the board through four brackets, improving the efficiency and stability of data transmission.
It has two backplate connectors and other connectors, supporting various configurations.
Interface and Compatibility:
In some applications, it can be used in conjunction with the I/O interface of the backup protection module to enhance the redundancy and reliability of the system.
Application scenario
The GE IS210AEBIH3BED VME turbine card is mainly used in gas turbine control systems that require high reliability and real-time performance, such as in power plants, ships and other fields for gas turbine monitoring and protection.
What can we offer you
1.100% brand new original packaging
2. Large inventory, usually shipped within 1-3 days
3. Competitive prices and real-time quotes
4. Professional services and technical support
5. The warranty period is one year.
6. Strictly test the machine before leaving the factory.
7. Use DHL, UPS FedEx, TNT for transportation
