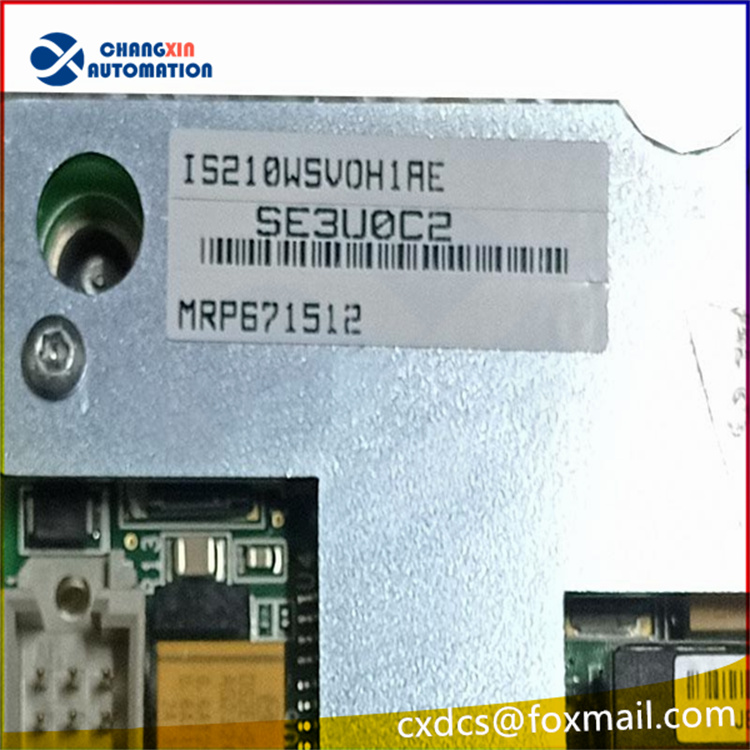

GE IS210WSVOH1A Multibridge Connector Sensor Card

Functional Description

IS210WSVOH1A is a Multibridge Connector Sensor Card developed by General Electric. It is a part of Mark VI Control system. It is equipped with four conduction sensors for monitoring and controlling power generation processes. The board is powered via two six-position plugs located on its edge. While no longer in production, we offers replacement services for its sensor circuits, ensuring the continued functionality of this critical component in power generation systems.

Features

• It features four conduction sensors integrated into the board, each meticulously labeled as E1, E2, E3, and E4. These sensors play a crucial role in monitoring and controlling the critical parameters of the system, ensuring precision and reliability in power generation.
• It is compact, with dimensions of approximately 4.35 inches in length and 2 inches in width. Its relatively small size belies its significant role in the control and monitoring of power generation processes.
• This board presents a standout feature with two independent sensor circuits, labeled as U1 and U2, positioned between sensors E2 and E3. These circuits enhance the board’s ability to monitor and control the power generation process with precision.

Connectors and Sensors

• To ensure seamless operation, the board relies on a pair of six-position plugs for its power supply.
• These connectors are strategically located on the edge of the board, facilitating a secure and efficient power supply connection. This design not only enhances stability but also simplifies maintenance and replacement when necessary.
• The four conduction sensors are crucial in measuring and controlling key parameters within the power generation system. These sensors work in unison to ensure optimal performance and safeguard against potential issues.
•
