GE IS220PDOAH1B Discrete Output Pack

General Information

• Brand: GE
• Item Number: IS220PDOAH1B
• Model: IS220PDOAH1B
• Catalog: Mark VIe
• Product Origin: United States
• HS Code: 85389091

Physical Specifications

• Dimensions: 16 cm × 16 cm × 12 cm
• Weight: 0.8 kg

Product Overview

The GE IS220PDOAH1B is a Discrete Output Pack designed for use with the Mark VIe control system. It plays a key role in connecting the I/O Ethernet network to the discrete output terminal board, providing critical electrical interfacing for system control and monitoring.

Key Features

• Dual-Board Design:
  The module includes:
  • A shared processor board, common across all Mark VIe distributed I/O packs
  • A function-specific acquisition board for discrete output operations
• Relay Control:
  Capable of controlling up to 12 relays, supporting both:
  • Electromagnetic relays
  • Solid-state relays
    This offers flexibility to suit various system requirements.
• Feedback Capability:
  Supports feedback signal reception from the terminal board, enhancing system accuracy and reliability.
• Flexible Terminal Board Compatibility:
  Compatible with various discrete output terminal boards, providing scalable and configurable solutions.

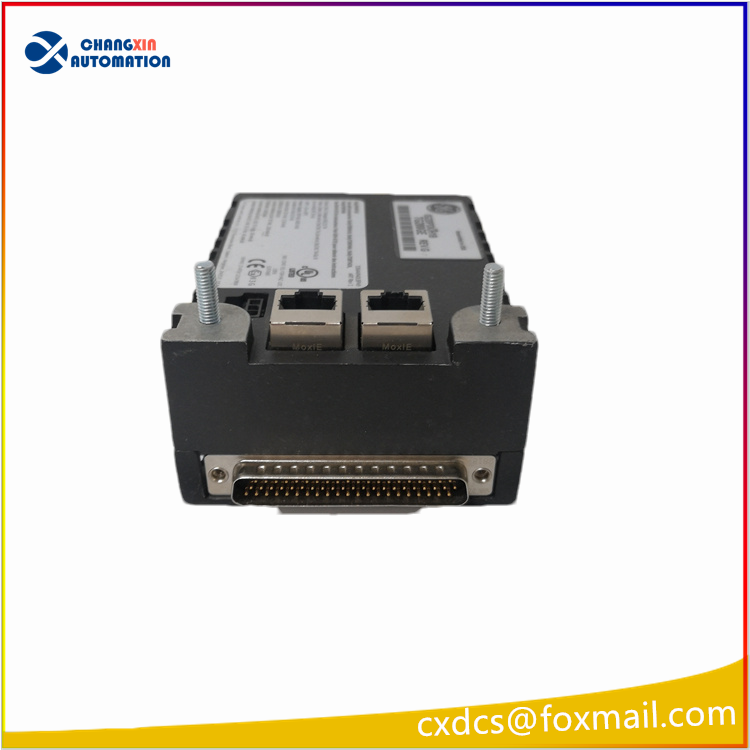

• Robust Communication Interface:
  Equipped with dual RJ45 Ethernet connectors to ensure redundant and reliable network communication.
• Power Supply:
  Includes a three-pin power input port, offering consistent and stable power delivery to support continuous operation.
• Output Connection:
  Features a DC-37 pin connector for direct and secure connection to the terminal board, simplifying both installation and maintenance.
•
