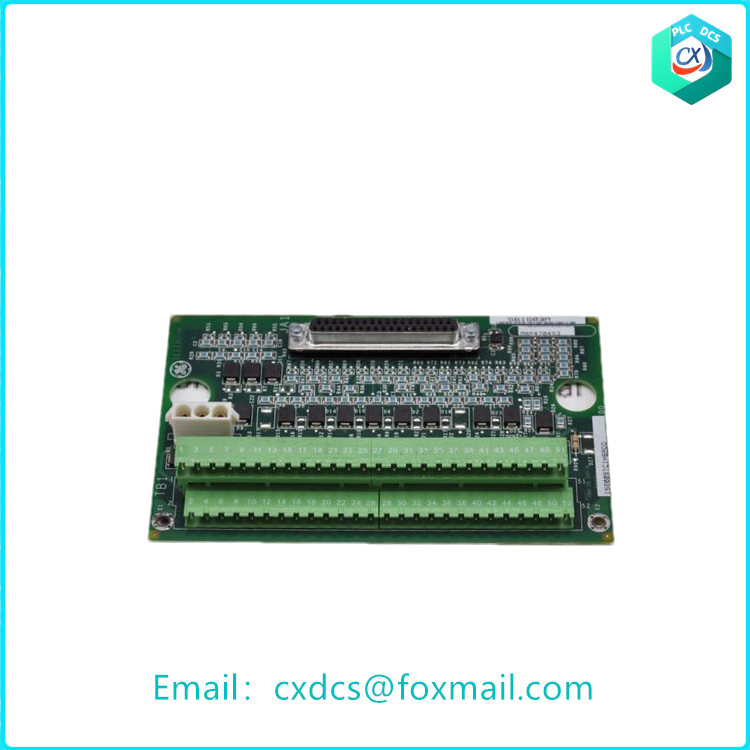

GE IS230JPDGH1B Mark VIe gas Turbine control System

GE IS230JPDGH1B is an industrial controller module in the Mark VIe series of General Electric (GE), specially designed for industrial automation and process control systems. It features high reliability, anti-interference ability and flexible scalability, and is applicable to key industrial fields such as power, energy and chemical engineering. The following is elaborated from four dimensions: core features, technical parameters, application scenarios and advantage analysis:

Core characteristics
Modular design
The IS230JPDGH1B adopts a modular architecture, supporting hot plugging and online maintenance, facilitating system expansion and upgrade, and reducing the risk of downtime.
Redundancy and fault tolerance capability
Supports simplex, duplex or tri-duplex redundancy configuration to ensure the system can still operate stably in the event of hardware failure, meeting the high reliability requirements.
High-speed communication interface
Equipped with industrial-grade Ethernet and serial communication interfaces (such as RS-232/485), supporting protocols such as Modbus and Profibus, and achieving seamless integration with third-party devices.
Anti-interference and environmental resistance
It has passed strict industrial-grade tests (such as EMC, vibration, and temperature), and can operate stably within a wide temperature range of -20°C to +65°C, adapting to harsh industrial environments.

Technical parameters
Processor: Equipped with a high-speed microprocessor (such as Intel EP80579), with a main frequency of 1066MHz, meeting the requirements of real-time control.
Memory: Standard equipped with large-capacity RAM and Flash storage, supporting complex logical operations and data logging.
I/O channel: Provides multiple digital/analog input/output channels, supporting signal types such as voltage, current, and thermocouple.
Power supply: Supports 24V DC redundant power input and has strong anti-interference ability.
Protection grade: IP20 or higher, suitable for cabinet installation.
Application scenarios
Power plant control
It is used for the start-stop control, load regulation and protection logic of gas turbines and steam turbines.
Petrochemical industry
Realize closed-loop control of the temperature, pressure and flow rate of the reaction vessel to ensure process safety.
rail traffic
It undertakes logical processing and equipment monitoring functions in the signal system and traction power supply.
Water treatment
Control equipment such as water pumps and valves to optimize the water treatment process.
Advantage Analysis
Compatible with the Mark VIe ecosystem
As part of the Mark VIe series, the IS230JPDGH1B can be seamlessly integrated into GE’s distributed control system (DCS), share toolchains (such as ToolboxST) and HMI interfaces, and reduce development costs.
High security
Support network security functions (such as firewalls, access control), comply with industrial security standards such as IEC 62443, and resist network attacks.
Long-term technical support
GE provides a global service network and spare parts supply to ensure technical support throughout the entire life cycle.
Cost-benefit
Compared with customized controllers, modular design reduces the development costs of hardware and software, and shortens the project delivery cycle at the same time.
Summary
GE IS230JPDGH1B is a high-performance controller module specially designed for industrial automation. With its modular architecture, redundant design, anti-interference ability and deep integration with the Mark VIe ecosystem, it has become an ideal choice in key fields such as power, energy and chemical engineering. For application scenarios that require high reliability, real-time control and flexible expansion, this module can significantly enhance system stability and operation and maintenance efficiency, while reducing the total cost of ownership.
