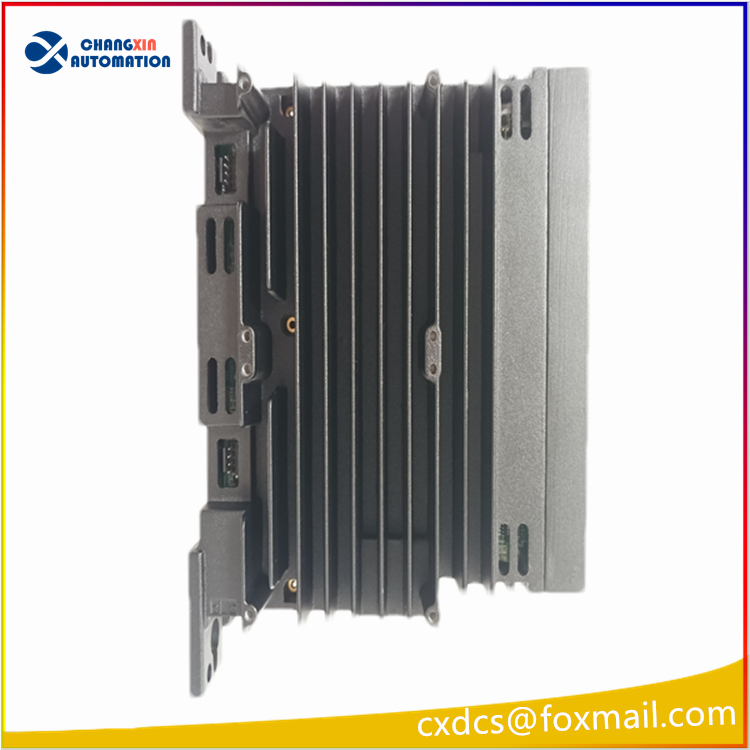

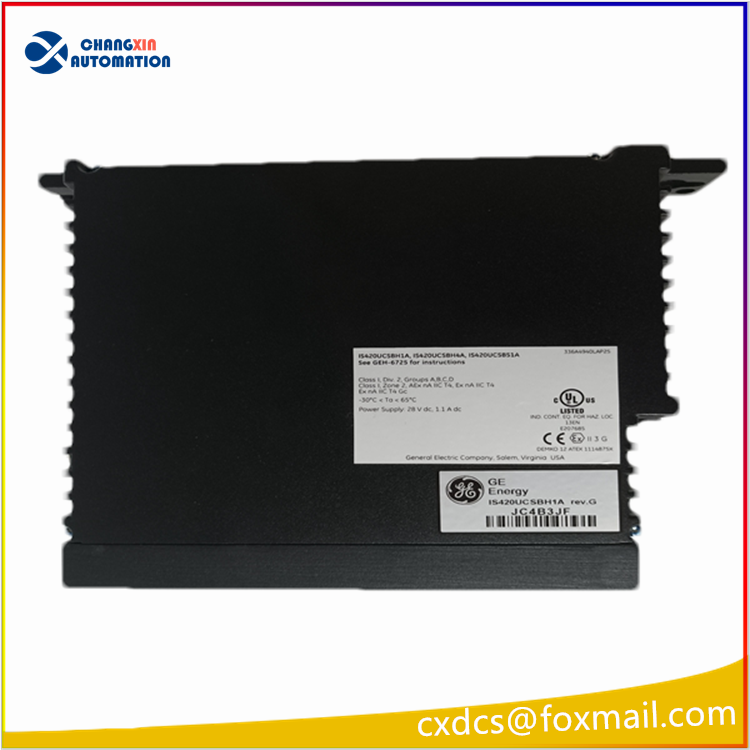

The GE IS420UCSBH1A industrial switch module is a UCSB (Universal Control System Board) controller module developed by General Electric (GE) and is part of the Mark VIe control system. This module is specifically designed for fields such as industrial automation, process control, and energy management, featuring high performance, high reliability, and modular scalability.
Product Overview
Type: UCSB Controller Module
Function: Execute the control logic of specific applications, manage the communication of I/O modules, and achieve data acquisition, processing and system control.
Features:
Independent control: It does not directly host application I/O but communicates with I/O modules through the IONet network to ensure that data is not lost during controller maintenance.
Real-time synchronization: Supports the IEEE 1588 protocol, and synchronizes the clocks of I/O components and controllers to within 100 microseconds through R, S and T IONet, meeting the requirements of high-precision synchronization.
Modular design: It adopts an air-cooling design, eliminating the need for on-board fans or batteries. With an integrated power supply, it simplifies the system architecture and facilitates installation and maintenance.
High reliability: Suitable for harsh industrial environments, it features anti-interference capability and stability.
Technical Specification
Processor: Freescale MPC7534 or Intel EP80579 may be adopted.
Memory: 256 MB DDR2 SDRAM (with Error Correction Code ECC), 2 GB NAND flash memory.

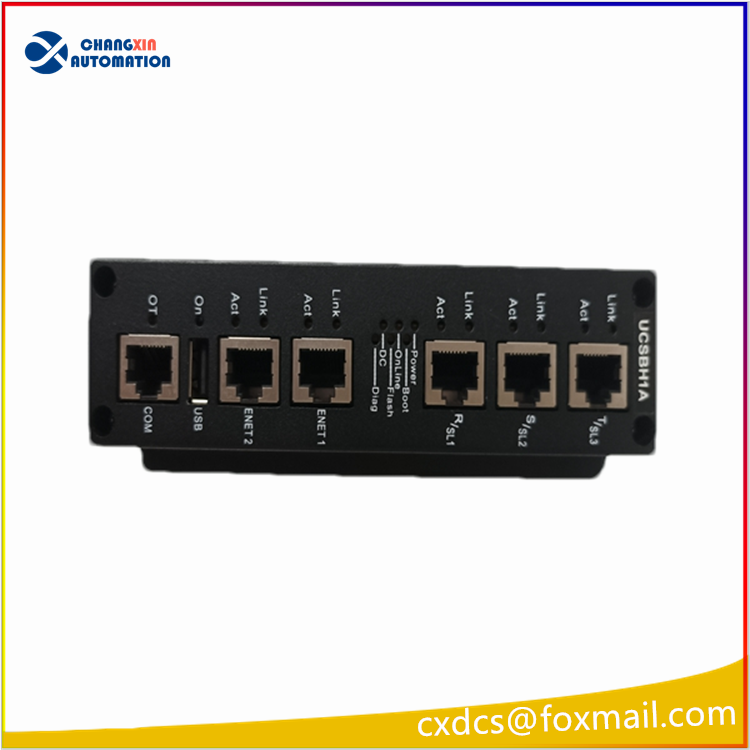

Network interface: Supports IONet and Ethernet connections, providing high-speed data transmission capabilities.
Power supply requirement: 18-36V DC direct current power supply.
Operating temperature range: -40°C to +85°C, suitable for extreme environments.
Dimensions and weight: approximately 150mm x 100mm x 50mm, weighing about 500g.
Application field
Industrial automation: It is used to control production lines, robots and automated equipment.
Process control: In industries such as chemical engineering, petroleum and natural gas, achieving precise process monitoring and control.
Energy management: Support the optimized operation of power plants, power grids and renewable energy systems.
Data collection and monitoring: It is used for real-time data collection, analysis and alarm to enhance system security.
