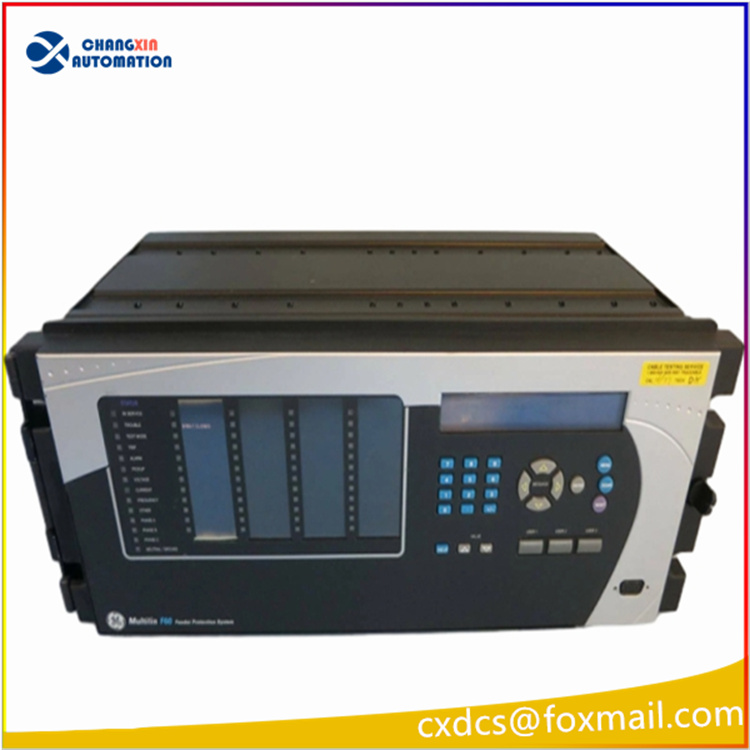

GE M60E00VFHF8FH6DM8FP6C is a specific model of the T60 series transformer protection device produced by GE. The following is a detailed introduction to this equipment:
I. Equipment Overview
The GE T60 series transformer protection device is an advanced protection equipment specifically designed for transformers, integrating multiple protection functions and capable of comprehensively monitoring and safeguarding the safe operation of transformers. This series of equipment is based on advanced microprocessor technology and features high reliability, high precision, and rapid response.
II. Model Analysis
T60: This indicates that the device belongs to GE’s T60 series of transformer protection devices.
M60E00VFHF8FH6DM8FP6C: This part is the specific model code of the equipment, which may include configuration options, functional modules, or specific application information of the device. However, as the specific coding rules may vary according to GE’s internal standards, the exact meaning of each letter and number cannot be directly interpreted.
Main function
Protection functions:
Differential protection: Quickly detects short-circuit faults within the transformer windings.
Backup protection: Includes overcurrent protection, zero-sequence current protection, etc., serving as a backup for differential protection to ensure that the transformer is protected even when the differential protection fails.
Non-electrical protection: Such as gas protection, temperature protection, etc., monitors non-electrical parameters of the transformer to prevent faults caused by overheating, abnormal oil level, etc.
Monitoring functions:
Electrical quantity monitoring: Real-time monitoring of electrical quantity parameters such as voltage, current, and power of the transformer.
Status monitoring: Monitoring the operating status of the transformer, such as switch position, circuit breaker status, etc.
Communication functions:
Supports multiple communication protocols, such as Modbus RTU, DNP3.0, IEC 61850, etc., facilitating integration with upper computers or monitoring systems.
Provides RS485 communication interface, supporting remote monitoring and data transmission.
Human-machine interface:
Equipped with a large full-color display, capable of real-time visualization of the operating status of the transformer, interval analog control, signal indication functions, and graphical phasor visualization.
Provides an intuitive operation interface, facilitating monitoring and management by operators.
Application scenario
The GE T60 series transformer protection devices are widely used in the protection of transformers of various voltage levels, including but not limited to the following scenarios:
Power substation: As the main protective equipment for transformers in substations, it ensures the safe operation of the transformers.
Industrial sector: In the industrial fields such as chemical, metallurgy, and papermaking, it protects the safety of key transformers.
New energy sector: In the new energy power generation systems such as wind power and photovoltaic, it protects the safety of step-up transformers or gathering station transformers.
Applications
- Transformer asset monitoring using hottest spot, loss-of-life and aging factor
- Applicable for transformers with up to six windings in a ring bus or breaker-and-a-half configuration
- Reliable and secure protection for three-phase transformers, autotransformers, reactors, split phase and phase angle regulating transformers
- Stand-alone or component in automated substation control system
Key Benefits
- Secure high-speed protection for transformers, compliant with IEEE® C37.91
- Improved security for transformer energization and inrush provided through a superior adaptive 2nd harmonic restraint algorithm
- Sensitive ground fault protection provides low-impedance differential protection down to 5% of the winding to limit transformer damage
- Phasor Measurement Unit (synchrophasor) according to IEEE C37.118 (2011) and IEC® 61850-90-5 support
- Three independent fiber or copper Ethernet ports for simultaneous/ dedicated network connections with advanced 1 microsecond time synchronization via LAN with IEEE 1588 support
- Reduced relay-to-relay wiring and associated installation costs through high-speed inter-relay communications
- Increase network availability by reducing failover time to zero through IEC 62439-3 “PRP” support
- CyberSentry™ provides high-end cyber security aligned to industry standards and services (NERC® CIP, AAA, Radius, RBAC, Syslog)
- Advanced fault and disturbance recording, including internal relay operating signals, eliminating the need for redundant recording devices
- Integrated transformer thermal monitoring for asset management and maintenance optimization
- Complete IEC 61850 Process Bus solution provides resource optimization and minimizes total P&C life cycle costs
