GE Mark VIe IS415UCVHH1A VME Control Board

Description:
IS415UCVHH1A is one of GE Mark VIe series family members. The UCVH is a single-slot board using an Intel® Ultra Low Voltage CeleronTm 1067MHz(1.06 G) processor with 128 MB of fash memory and 1 GB OfSDRAM. TWC10BaseT/100BaseTX(R1-45 connector) Ethernet ports provide connectivity. Thefrst Ethernet port allows connectivity to the UDH for configuration and peer-to-peelcommunication.
The second Ethernet port is for use on a separate IP logical subnet and can be used forModbus or private Ethernet Global Data (EGD) network. This Ethernet port is confguredthrough the toolbox, The controller validates its toolbox confguration against the existinghardware each time the rack is powered up. The following table displays the differencesbetween the UCVH and UCVG Ethernet port activity LEDs.

IS415UCVHH1A Appearance and Structure:

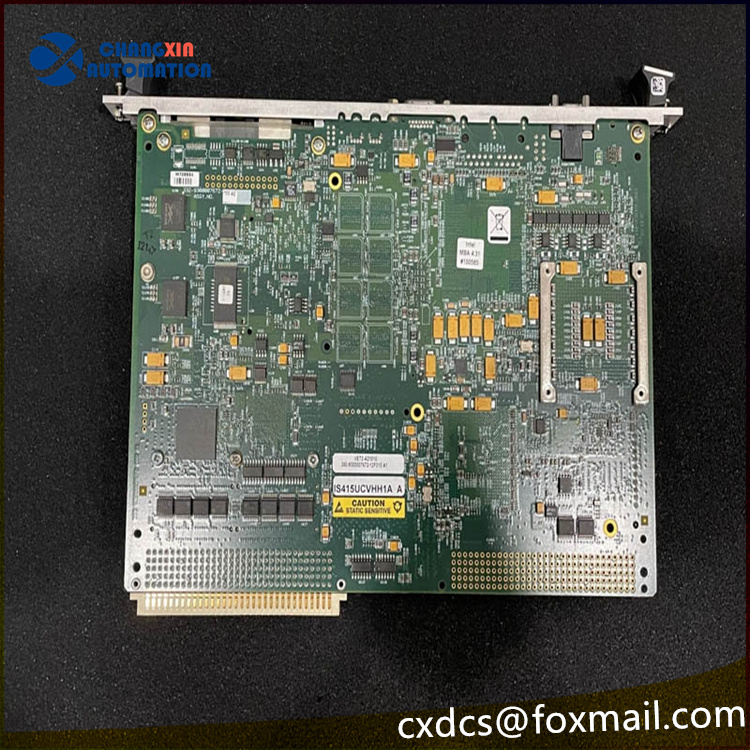

IS415UCVHH1Ais a single boxed component with a front panel to allow communication connections, two screws mounted on the rear edge, and grille openings on three sides to allow air flow. The front panel has six female jack connectors, a USB port, and multiple LED indicators, including an LED indicator labeled Link/Act on the left side of the front panel, and a row of indicators labeled Power, Boot, Online, Flash, DC, and Diag in the middle of the panel.

UCSA, UCSB, UCSC, and UCSD Controllers

The following table lists the controllers that are certified for hazardous location usage：

Note: For UCSC, UCEC, and UCSD controller conditions of safe use and hazardous locations installation requirements, refer to UCSC, UCEC, and UCSD Installation and Maintenance Requirements (GFK-3006).

For general application information, refer to the Mark VIe and Mark VIeS Control Systems Volume II: General-purpose Applications System Guide (GEH-6721_Vol_II), the section UCSC Controllers

Processor	Part Number	Name
Quad core, 1.2 GHz AMD© G-Series	IS420UCSCH1	Mark VIe controller
Dual core, 1.6 GHz AMD G-Series	IS420UCSCH2	MarkStat controller
Dual core, 1.6 GHz AMD G-Series	IS420UCSCS2	Mark VIeS Safety controller
Quad core, 1.6 GHz AMD V1000–Series	IS420UCSDH1	Mark VIe controller
Quad core, 1.6 GHz AMD V1000–Series	IS420UCSDS1	Mark VIeS Safety controller
600 MHz EP80579 Intel®	IS420UCSBS1A IS421UCSBS1A (conformal coated)	Mark VIeS Safety controller
600 MHz EP80579 Intel®	IS420UCSBH1A IS421UCSBH1A (conformal coated)	Mark VIe, EX2100e, or LS2100e controller
1066 MHz EP80579 Intel	IS420UCSBH4A IS421UCSBH4A (conformal coated)	PROFINET gateway module
1066 MHz EP80579 Intel	IS420PPNGH1A	Mark VIe or MarkStat controller
1200 MHz EP80579 Intel	IS420UCSBH3A	Mark VIe or MarkStat controller
667 MHx PowerQUICC® Pro Freescale	IS220UCSAH1A	Mark VIe controller PAMC Acoustic Monitor (processor) PMVE Migration from Mark V Control (processor)
