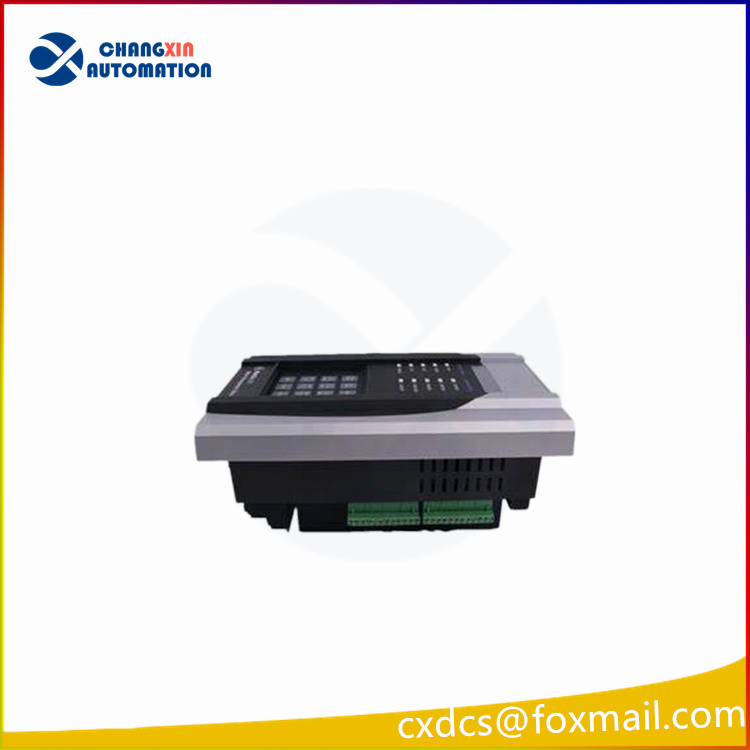

GE Multilin 369-Hi-R-M-0-0-H-0 Motor Management Relay

About the 369-Hi-R-M-0-0-H-0

Intended to protect and control medium-sized motors and accompanying parts, General Electric Multilin’s 369-HI-R-M-0-0-H-0 is a Motor Management Relay and part of the 369 series.

The relay includes ten LED indicators on the front of the panel that accompany the 40-character liquid-crystal display and keypad. The LED indicators include service, trip, alarm, aux 1, aux 2, BSD, RRTD, metering, COM1, and COM2 statuses to provide a quick reference for users. The LEDs offer insight into system health and the various processes that are occurring within the relay and motor system.

The 369-HI-R-M-0-0-H-0 of General Electric Multilin’s 369 series is a high-control power unit, accepting inputs in a range of 110 to 250 V direct current and 100 to 240 V alternating current at 50/60 Hz frequency. This contrasts with the low-power version of the series, which accepts a control power range of 20 to 60 V direct current and 20 to 48 V alternating current. Prospective buyers should purchase the unit appropriate for their control power needs, as exceeding the range is likely to result in system damage.

The 369-HI-R-M-0-0-H-0 also comes with the optional conformal coating, providing additional protection against corrosion, humidity, temperature, and dust. Conformal coating is a thin, breathable polymeric layer that can be applied through a variety of means. If a prospective buyer is interested in a model with additional features that appears to be lacking a conformal coating, AX Control is capable of adding this feature to any model that doesn’t already have it: simply inquire within.
