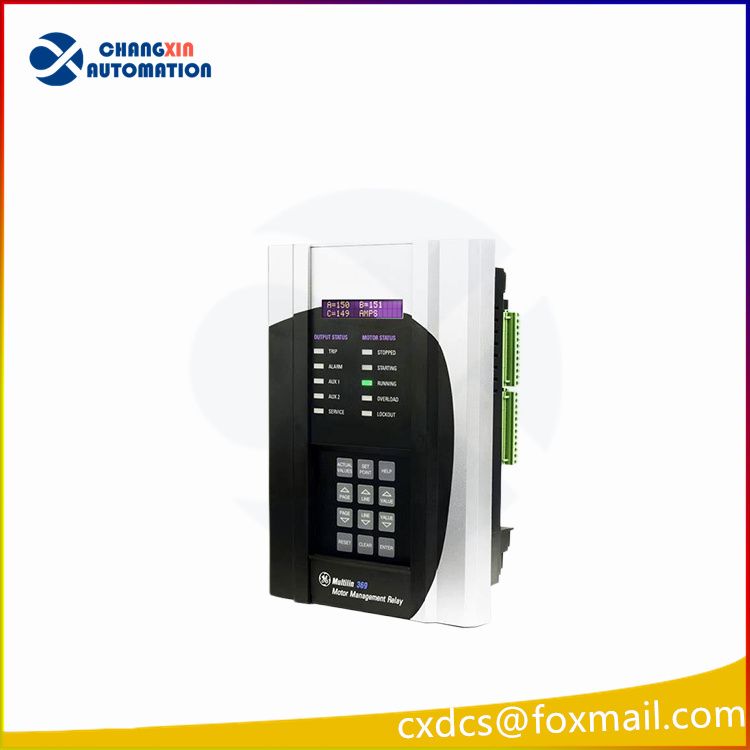

GE Multilin 369-HI-R-M-0-0-H-E Motor Management Relay

369-HI-R-M-0-0-H-E Technical Specifications

Part Number	369-HI-R-M-0-0-H-E
Manufacturer	GE Multilin, GE Vernova, or GE Grid Solutions
Series	369 Motor Management Relay
Communications	non-isolated RS232 port, RS485 port
Control Power Input Range	110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Differential Switch Time Delay	<200 ms
Dimensions	approx : 29.6cm H x 10.7cm W x 20.5cm L
Event Record Triggers	power fail, alarms, self test, inhibit, trip, waveform capture
Operating Range	-40°C (-40°F) to +60°C (140°F)
Storage Range	-40°C (-40°F) to +80°C (176°F)

About the 369-HI-R-M-0-0-H-E

The 369-HI-R-M-0-0-H-E is a Motor Protection and Management Relay designed by General Electric Multilin.
It is specifically for protecting medium motors and their accompanying parts.
The relay boasts adaptive learning capabilities, allowing it to configure itself to each individual motor’s unique needs.

Monitoring and Data Documentation

The 369 relay can monitor and document various operational parameters, including:
- Total accumulated mega-watt hours
- Varieties of motor trips
- Total number of motor trips
- Number of motor starts
- Total hours running
This collected data is valuable for diagnosing motor faults and planning future maintenance.

Inputs and Outputs

Offers a variety of inputs and outputs for comprehensive motor management.
Speed Switch Input: Allows external speed devices to distinguish between a normal start and a locked rotor condition, enabling relay shutdown when conditions are poor.
Other inputs include Waveform Capture and Digital Counters.

Enhanced Features and Durability

This specific model includes an enhanced diagnostic and faceplate option, offering a cleaner design.
Features a conformal coating, a thin polymeric film that protects the relay from:
- Variable temperatures
- Corrosive materials
- Dust
- Humidity

Physical Specifications and Installation

Weighs approximately ten pounds.
Mounted in a DEMO metal carry case, providing protection against environmental factors.
The case is flame and corrosion retardant.
Should be mounted away from strong magnetic fields or high current conductors to prevent long-term damage to the relay.

Frequently Asked Questions about 369-HI-R-M-0-0-H-E

Can you tell me a bit more about the optional metering package that is included with the 369-HI-R-M-0-0-H-E Multilin General Electric digital motor management relay for monitoring of three phase motors?

The 369-HI-R-M-0-0-H-E and other Multilin relays of the 369 Multilin GE motor management digital relay series have the potential to come with an optional metering package if designated by the M option found in the third position of the part number. This is referenced in the 369-HI-R-M-0-0-H-E. This additional metering option provides the base unit with power metering parameters of kW, kvar, kVA, kWh, MWh, kvarh, Mvarh, a power factor, and frequency parameters with a high accuracy and resolution. The event record capacity for this power metering option is a capacity to record the last 512 events. The triggers of this event are power fail, alarms, self test, waveform capture, and trip events.

What are the analog outputs for option M as included with the GE Multilin 369-HI-R-M-0-0-H-E Multilin General Electric digital motor management relay?

The 369-HI-R-M-0-0-H-E Multilin General Electric digital motor management relay has programmable analog outputs included with option M features. The three possible output ranges are from 0-1 mA, 0-20 mA, and 4-20 mA. The maximum load for each of these three respective ranges is 2400, 600, and 600 Ohm.
