product description

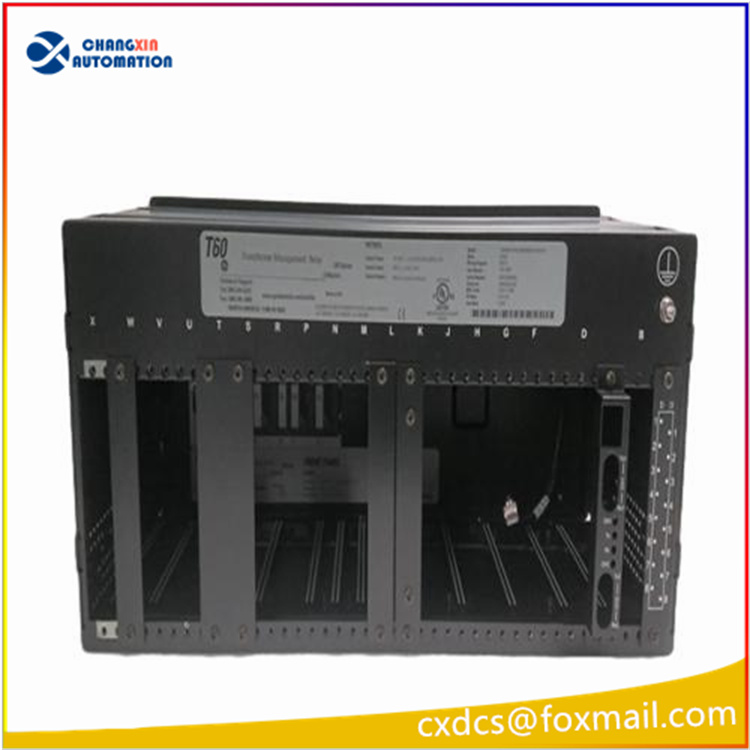

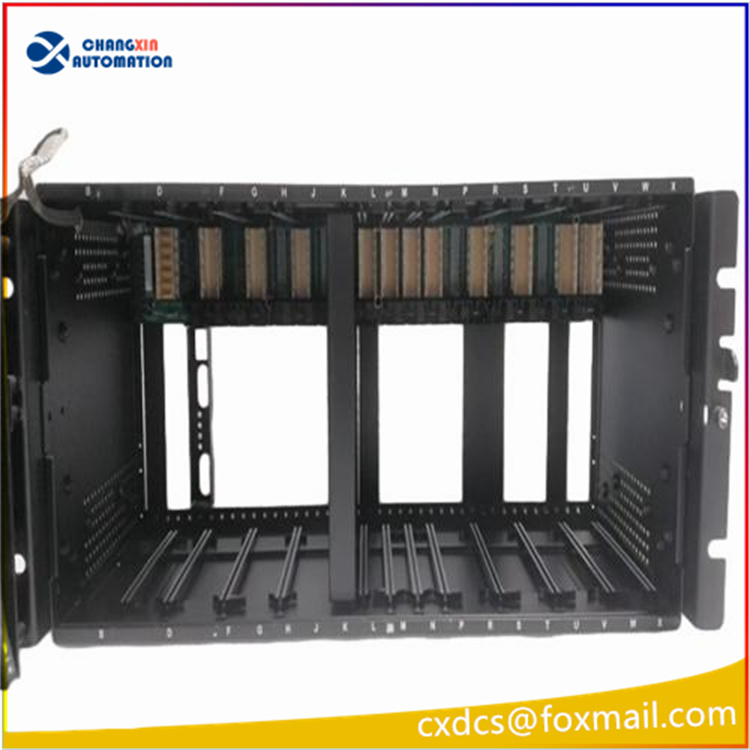

GE G60G03HCHF8LH6CM8NP6CU6CW6C (if it is the GE T60 transformer management relay module) is mainly used for the protection, monitoring and management of transformers in the power system. The specific functions and application scenarios are as follows:
Core functions
High-speed transformer protection:
Compliant with IEEE C37.91 standards, it provides reliable high-speed protection to ensure rapid isolation of the transformer in case of faults, thereby reducing the risk of damage.
Ground fault protection:
It offers low-impedance differential protection, capable of detecting faults of 5% in the windings, effectively limiting the scope of transformer damage.
Over-excitation protection:
Prevents the transformer from being damaged due to over-excitation, extending the service life of the transformer.
Thermal monitoring and asset management:
Integrates transformer thermal monitoring functions, optimizing maintenance plans through indicators such as hot spot temperatures, life loss, and aging factors, thereby reducing operation and maintenance costs.
Environmental temperature monitoring:
Issues an alarm when the environmental temperature exceeds the upper limit to prevent the transformer from operating at high temperatures.
Technical Features
High Precision Measurement:
Supports precise measurement of parameters such as current, voltage, power, energy, frequency, and temperature, providing data support for transformer condition assessment.
Fault and Disturbance Recording:
Equipped with advanced fault and disturbance recording functions, including internal relay operation signals, eliminating the need for redundant recording equipment.
High-speed Communication Capability:
Supports various communication interfaces such as 100Mbit optical Ethernet, RS485, RS232, as well as protocols like IEC61850, DNP3.0 Level2, Modbus RTU/TCP/IP, facilitating integration with different systems.
Security Protection:
Protects critical infrastructure from network attacks through user command log recording and dual-level access control.
Application scenario
Power System:
In power facilities such as power stations and substations, the GE T60 transformer management relay module is used to protect key transformer equipment and ensure the stable operation of the power system.
Industrial Manufacturing:
In the industrial sectors such as steel and petrochemicals, transformers are the core equipment in the production process. The GE T60 module improves production continuity and equipment reliability through real-time monitoring and protection.
Renewable Energy System:
In wind power and solar power generation systems, the GE T60 module is used to adjust the voltage generated by power generation equipment, enabling the effective grid connection and utilization of renewable energy.
Rail Transit:
In electric locomotives and subway systems, the GE T60 module ensures the stable operation of transformers in complex electromagnetic environments, guaranteeing the safety and efficiency of rail transit.
