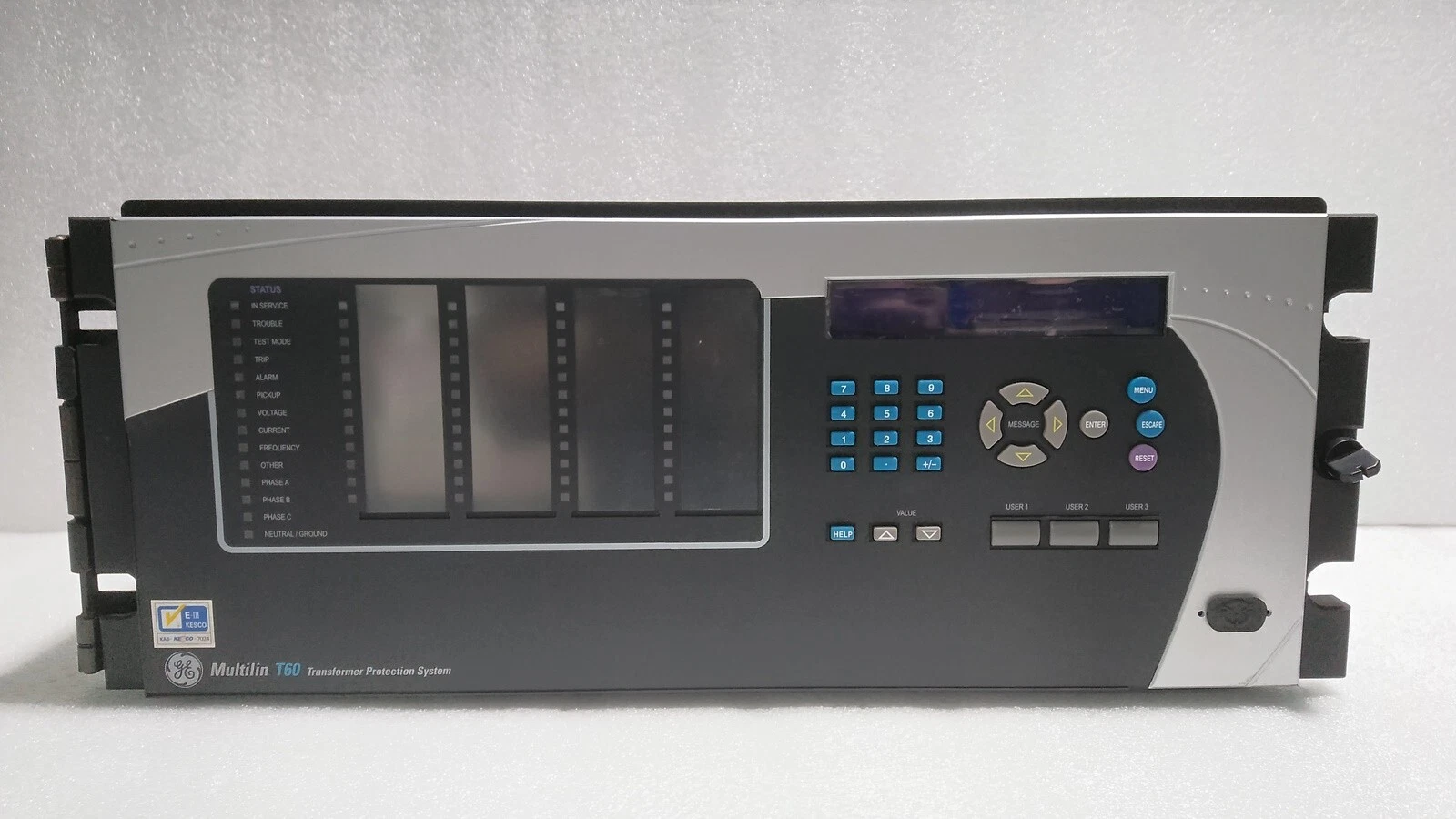

GE T60TG3HLHFXXH81MXXP6TU6NWXX Multilin T60 Transformer Management Relay

Model Structure Analysis and Potential Confusion
Model Composition Analysis
T60: May refer to the GE Multilin T60 series transformer protection relay (such as T60TG3HLHFXXH81MXXP6TU6NWXX), rather than the transformer itself.
G00: May represent a general design or basic configuration.
HVHF8LH6: May involve parameters such as voltage level (HV), frequency (HF), winding type (LH6), etc., but this needs to be combined with the specific product definition.
T60TG3HLHFXXH81MXXP6TU6NWXX: May be configurable options (such as cooling method, protection function, interface type, etc.), where “XX” is a variable.
Key Confusion Points
The actual use of the T60 series: The GE Multilin T60 is a transformer protection relay, used for monitoring and protecting power transformers, rather than the transformer itself.
Model Naming Differences: Transformer model usually includes parameters such as capacity, voltage level, cooling method (such as SFL7—20000/110), while the T60 series is a protection device, with parameters focusing on communication protocol, protection function, I/O configuration, etc.

Technical Parameter Inference
If the actual requirement of the user is for a transformer protection relay (such as the T60 series), the typical parameters are as follows:
Electrical Characteristics
Input Voltage: Supports 100—240 VAC/DC, frequency 50/60 Hz.
Current Measurement: Supports 0—5 A or 0—1 A input, with accuracy ±0.5%.
Communication Interface: Supports Ethernet, Modbus, IEC 61850, etc. protocols.
Protection Functions
Differential Protection: Supports dual-slope, unrestricted differential protection, capable of detecting winding faults as low as 5%.
Overexcitation Suppression: Prevents transformer overexcitation through a fifth harmonic suppression algorithm.
Thermal Monitoring: Integrates hotspot temperature calculation and aging factor analysis, supports remote RTD temperature monitoring. Physical specifications
Dimensions: Approximately 100 mm × 200 mm × 300 mm (width × height × depth).
Weight: Approximately 2 – 3 kg (including installation bracket).
Protection level: IP20 (front), IP10 (back), suitable for indoor environments.

Possible scenarios for user requirements
Equipment compatibility requirements
If the user needs to configure a protection system for a GE transformer (such as the DS2020DACAG2 conversion transformer), the T60 series relays can provide functions such as differential protection, overcurrent protection, and grounding fault monitoring.
Replacement or upgrade
The T60 series relays can replace earlier models (such as SR745-W2-P5-G5-HI-A) and support digital communication and asset management, reducing downtime.
Customized applications
The XX wildcard in the model (such as PXX, UXX) may represent programmable logic functions (FlexLogic), communication protocols, or extended I/O modules, and must be customized according to specific configurations.
