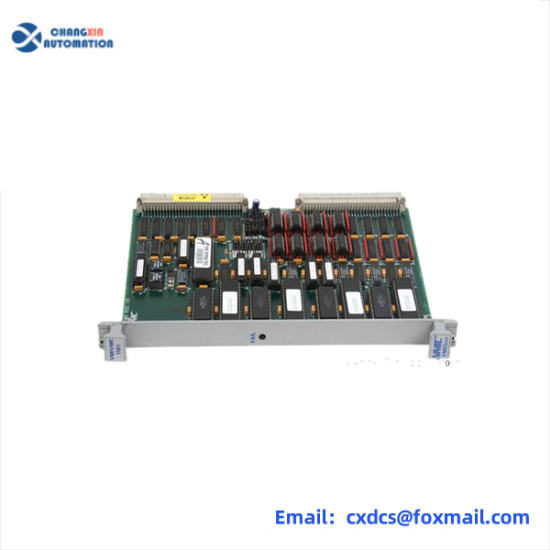

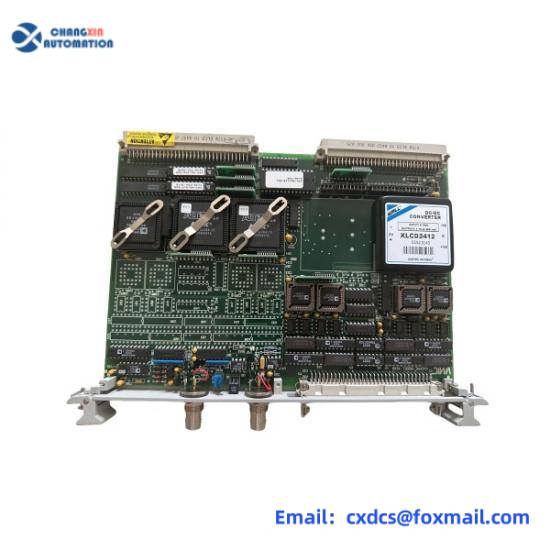

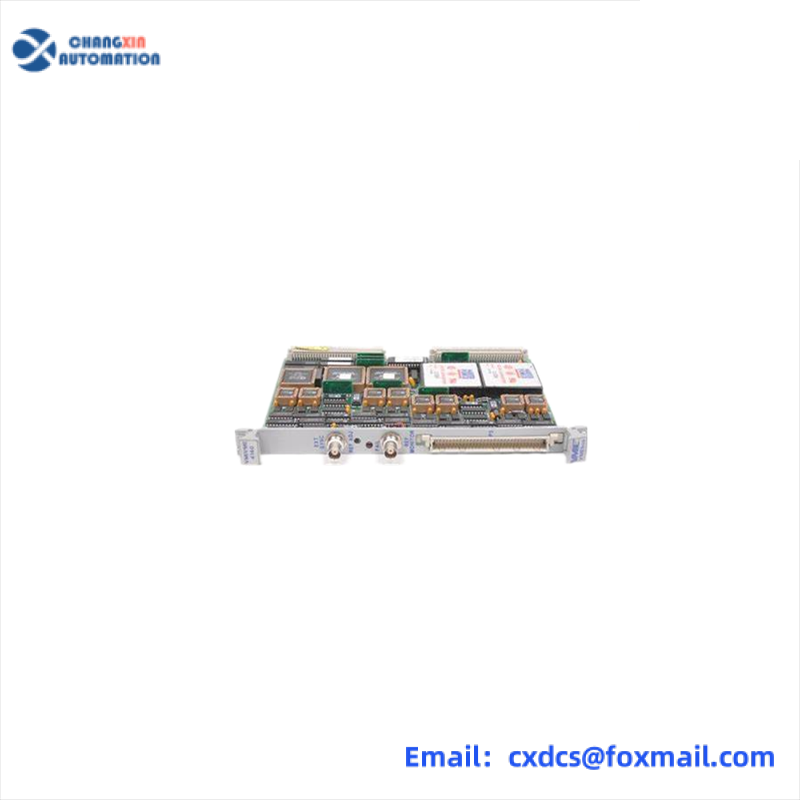

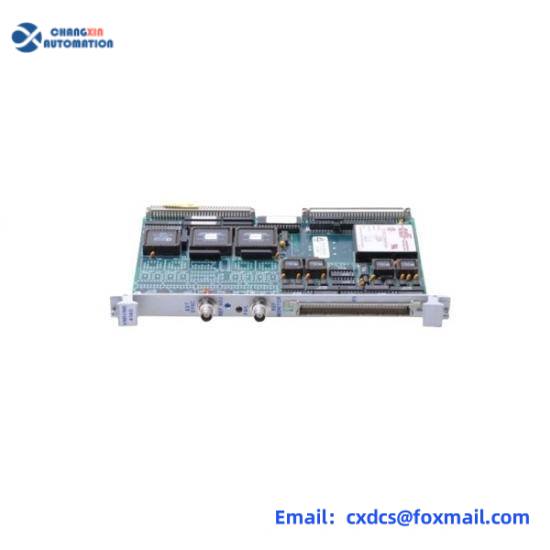

GE VMIVME-4140 32-Channel 12-Bit Analog Output Module for Industrial Automation
The GE VMIVME-4140 is a high-precision analog output module engineered for demanding industrial control applications. With 32 independent 12-bit channels and ±10 V output range, this VMEbus-compatible module delivers exceptional signal accuracy and reliability for automation systems requiring precise analog signal generation in manufacturing, test equipment, and process control environments.
Key Features
- 32 Independent Channels: Dedicated 12-bit DACs per channel ensure precise analog signal generation with ±10 V output range
- Flexible Configuration: Software-selectable ranges (0-10V, 0-5V, ±2.5V, ±5V, ±10V) with single-ended/differential output options
- Advanced Calibration: Automatic offset/gain calibration via VMEbus reset or software command with dynamic RAM storage
- Robust Diagnostics: Built-in self-test with LED status indicators and fault detection for each channel
- Industrial Durability: Operating temperature range -40°C to +85°C with VME64 standard compliance
Technical Specifications
| Parameter | Specification |
|---|---|
| Channel Count | 32 independent analog outputs |
| Resolution | 12-bit (0.024% accuracy) |
| Output Range | Selectable ±10V, 0-10V, 0-5V, 0-2.5V, ±2.5V, ±5V |
| Update Method | Random (non-scan) with software/external synchronization |
| Interface | VME64 bus (32-bit, 40 MHz) |
Application Fields
The VMIVME-4140 excels in industrial automation systems requiring precise analog control, including:
- Manufacturing process control systems
- Automated test equipment (ATE) platforms
- Data acquisition and signal conditioning systems
- Power plant control systems
- High-precision laboratory instrumentation
