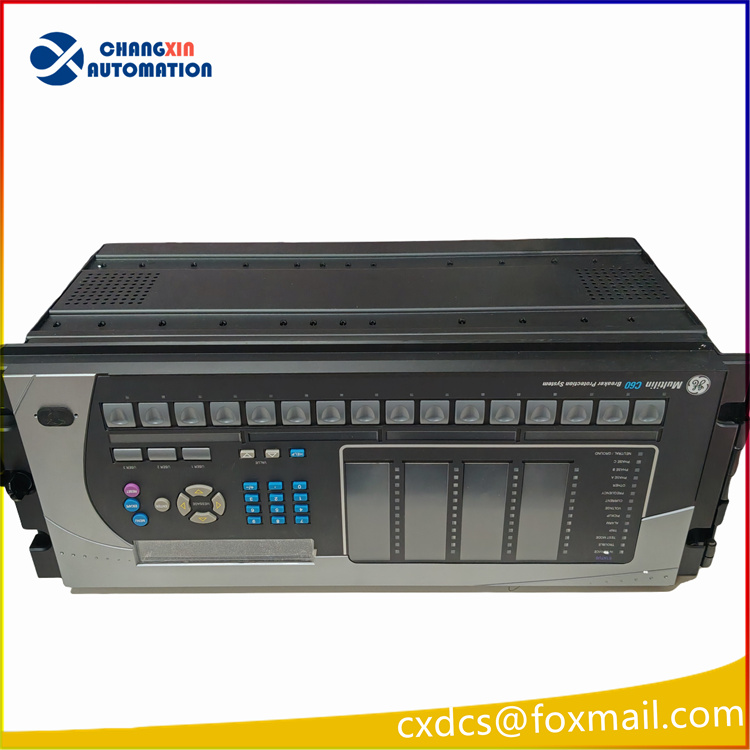

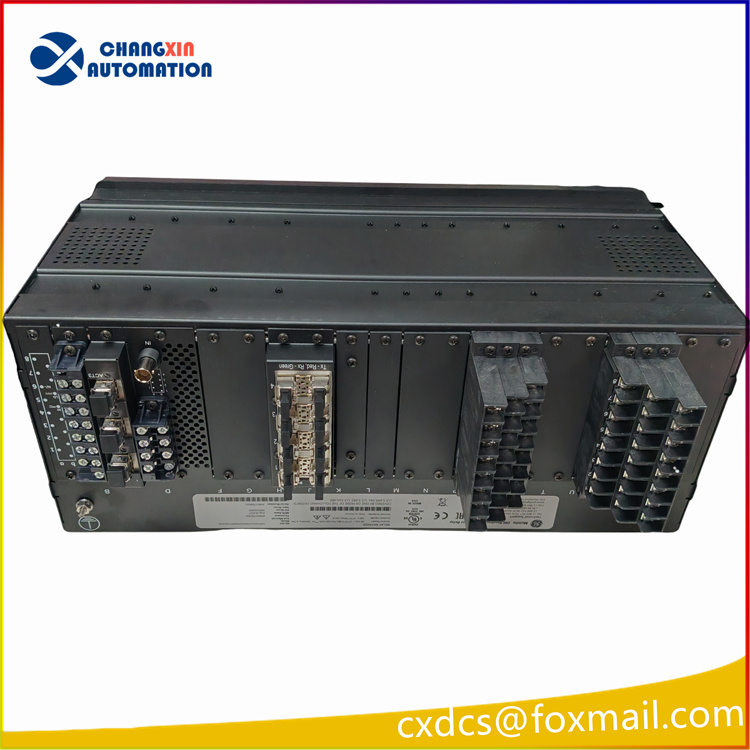

The General Electric C60TG3HLHFXXH81MMXXP6TU6GWXX is a Multilin C60 circuit breaker management relay produced by General Electric (GE). It has microprocessor control, modular design, high-precision monitoring and automation functions, and is suitable for circuit breaker monitoring, protection and management in industrial power systems. The following is a detailed introduction about the product:
1、 Product Overview
Brand and model: General Electric Multilin C60 Breaker Management Relay, model C60TG3HLHFXXH81MXXP6TU6GWXX.
Product status: According to some information, the product may have been discontinued, but there is still inventory available for sale.
Application field: Mainly used in industrial power systems to monitor, protect, and manage circuit breakers.
2、 Product Features
Microprocessor control:
Using microprocessor technology to achieve intelligent management of circuit breakers.
It has high flexibility and programmability, and can be customized according to actual needs.
Modular design:
The modular structure makes the equipment easy to upgrade and maintain.
Different modules can be independently replaced, reducing maintenance costs and time.
High precision monitoring:
Capable of accurately monitoring various parameters of circuit breakers, such as voltage, current, power, etc.
Providing high-precision measurement and recording functions helps to promptly identify potential issues.
Automation function:
Integrate advanced automation features such as FlexLogic programmable logic, communication, and SCADA (Supervisory Control and Data Acquisition) capabilities.
It can be seamlessly integrated with other UR relays to achieve complete circuit breaker management, including reclosing, load shedding, and synchronous applications.
Multiple configuration options:
Supports multiple CT/VT (current transformer/voltage transformer) configurations, suitable for different application scenarios.
Provide flexible input/output (I/O) modules that can cover a wide range of input signals and trip schemes.
Protection function:
Equipped with circuit breaker fault detection function, it can detect circuit breaker fault conditions for single pole and three pole tripping schemes.
Provide two independent circuit breaker fault functions to ensure the reliability and safety of the system.
3、 Technical specifications
Control power supply: 125-250 volts DC @ 0.7 amperes
Contact input: 300V DC maximum @ 10mA
Relay weight: 4.5 pounds (approximately 2.04 kilograms)
Relay size: 2 inches deep (approximately 5.08 centimeters) x 19 inches wide (approximately 48.26 centimeters) x 7.5 inches high (approximately 19.05 centimeters)
Operation mode: can be directly operated on the board or requires testing
Color Code: White/Blue/Green/Black
Shipping scope: Global
4、 Application scenarios
Industrial power system: used to monitor and manage circuit breakers in industrial power systems to ensure stable operation of the system.
Power plant: Used in power plants to protect key equipment such as generators and transformers from the effects of circuit breaker failures.
Substation: In a substation, it is used to monitor and manage high-voltage circuit breakers to ensure the safety and reliability of power transmission.
