Description
The GE DS200FCGDH1BAA is a high-performance Gating and LCI Control Board designed for use in the Speedtronic Mark V turbine control systems. It plays a critical role in managing drive systems by acting as a gate distribution status card. This control board interfaces with phase-controlled non-reversing bridge systems, ensuring seamless operation in power generation and turbine control applications.

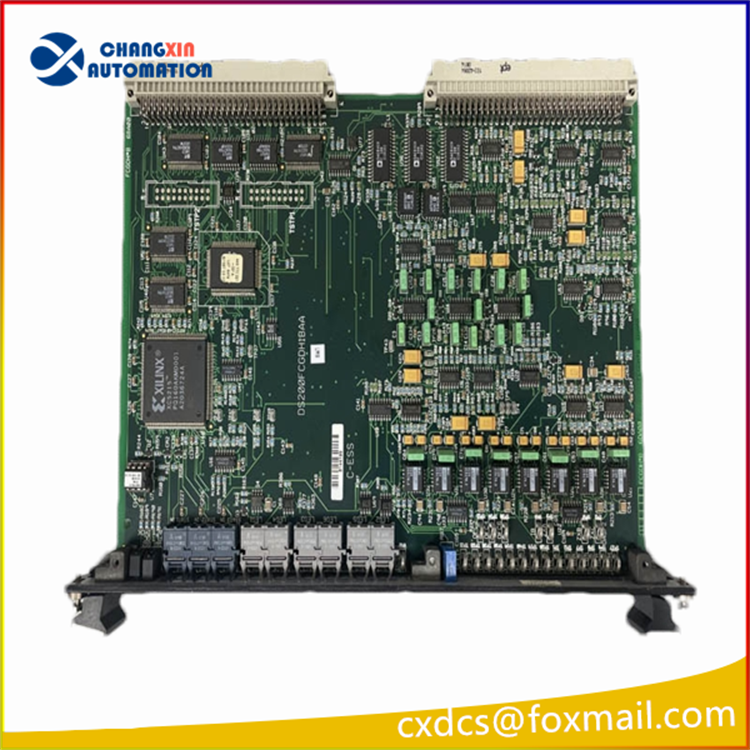

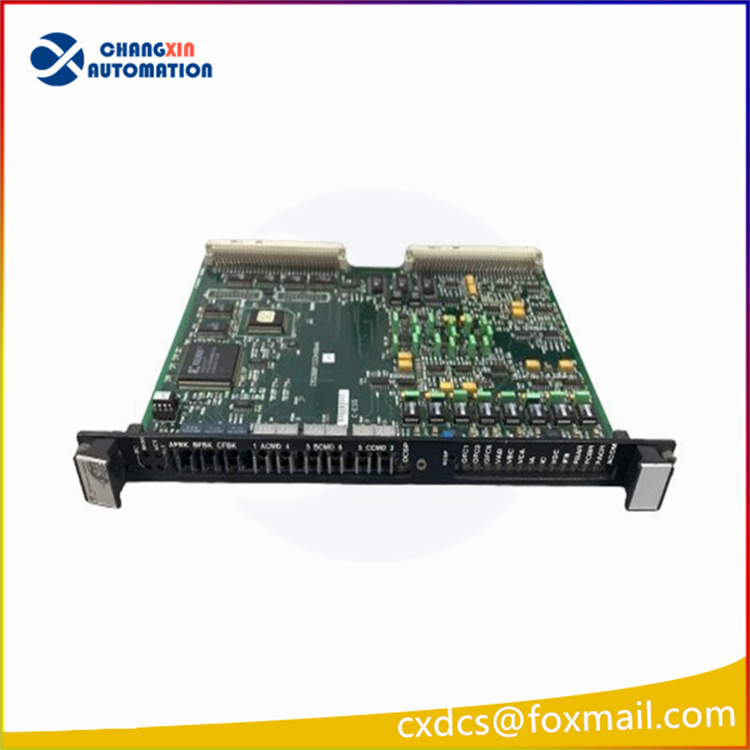

The DS200FCGDH1BAA is populated with advanced integrated circuits, including a Xilinx FPGA, and is designed to interface with the DSPC board via the VME backplane. It features a front faceplate with LED indicators and connector ports, providing clear visibility and ease of integration.
Key Features:
- Gate Distribution Status: Serves as a gate distribution card for turbine control within the Speedtronic Mark V series.
- Advanced Interface: Interfaces with phase-controlled, non-reversing bridge systems for efficient drive control.
- High-Speed Communication: Relays information from a connecting DSPC board back to the drive’s VME backplane.
- LED Indicators: Equipped with a front faceplate displaying LED indicators for clear status monitoring.
- Integrated Circuits: Populated with multiple ICs, including a Xilinx FPGA, for enhanced processing power.
Technical Specifications:
| Feature | Specification |
|---|---|
| Model Number | DS200FCGDH1BAA |
| Revision | BAA |
| Product Type | Gating and LCI Control Board |
| Acronym | FCGD |
| Manufacturer | GE Industrial Control Systems |
| Weight | 12 ounces |
| Functionality | Phase-controlled non-reversing bridge systems |
| Interface | Relays information to VME backplane |
| Faceplate | LED indicators and connector ports |
| Integrated Circuits | Includes Xilinx FPGA |
Applications:
The GE DS200FCGDH1BAA is primarily used in:
- Turbine Control Systems: Integral to the Speedtronic Mark V series for power generation and turbine monitoring.
- Industrial Automation: Applied in drive systems that require non-reversing bridge phase control.
- Power Plants: Essential for managing and distributing gating signals in turbine control systems.
-
