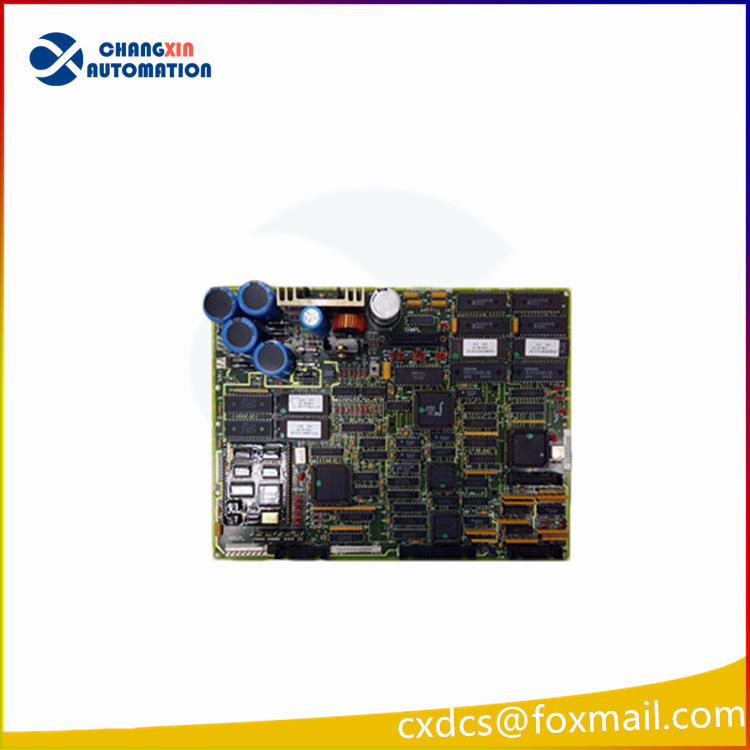

General Electric DS200SDCCG1AGD Drive Control Board

The GE Fanuc DS200SDCCG1AGD is a Drive Control Board designed specifically for GE’s Mark V series drives and exciters. As the primary controller for the drive, it features three microprocessors and RAM for efficient data analysis and regulation. It also includes ten LEDs to display fault codes for easy troubleshooting.

Key Features

• Three Microprocessors: Provides advanced processing power for reliable operation and control of the drive and exciter.
• RAM: Equipped with RAM for fast data processing and storage, enabling efficient performance.
• Fault Indication: The ten LEDs on the board are used to display fault codes, allowing for easy identification of issues during operation.

Functionality

• Primary Controller: The DS200SDCCG1AGD serves as the main controller for the drive and exciter, ensuring proper functioning and system regulation.
• Data Analysis & Regulation: Analyzes system data and regulates the drive based on the configuration parameters to maintain optimal performance.
• Fault Detection: Uses the LED fault code indicators to display specific issues, enabling quick diagnostics and maintenance.

Safety Instructions

• High Voltage Warning: Exercise extreme caution when opening the board cabinet, as high voltage may be present.
• Avoid Contact: Never touch any internal components while the drive is powered up to prevent injury or damage.
• Prevent Objects from Falling: Ensure that no objects fall into the cabinet while it is open, as this could cause damage or malfunction.
• Close the Cabinet Door: Always close the cabinet door after inspecting or configuring the board to ensure safety and proper functioning.

Configuration

• Initial Setup: During installation or reconfiguration, you can set parameters that dictate how the board analyzes data and regulates the drive.
• Software Tools: Use software programs on a laptop or compatible device to modify parameters for specific configurations.
• Multiple Drive Configuration: A single configuration file can be created and downloaded to multiple DS200SDCCG1AGD boards for consistent setup across multiple drives.

Technical Specifications
